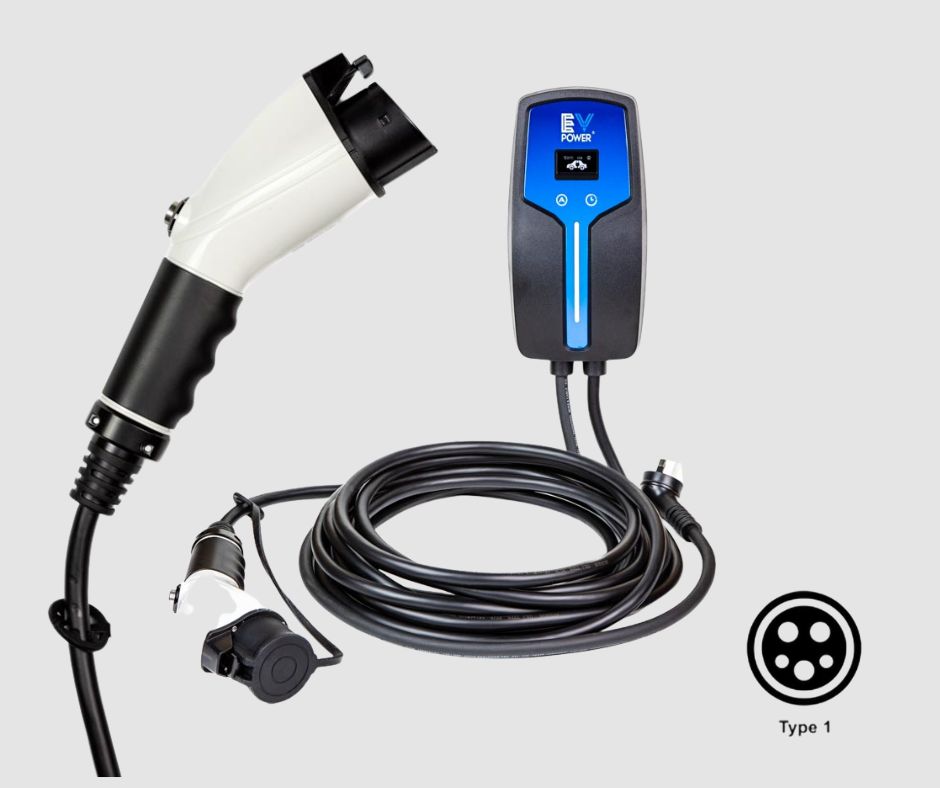

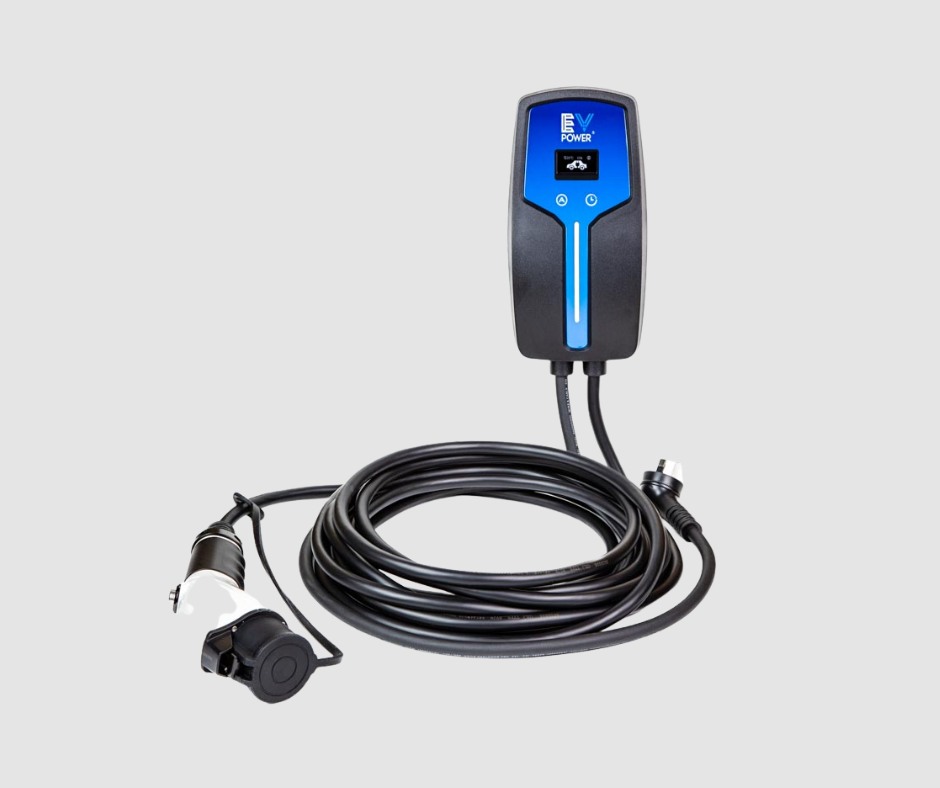

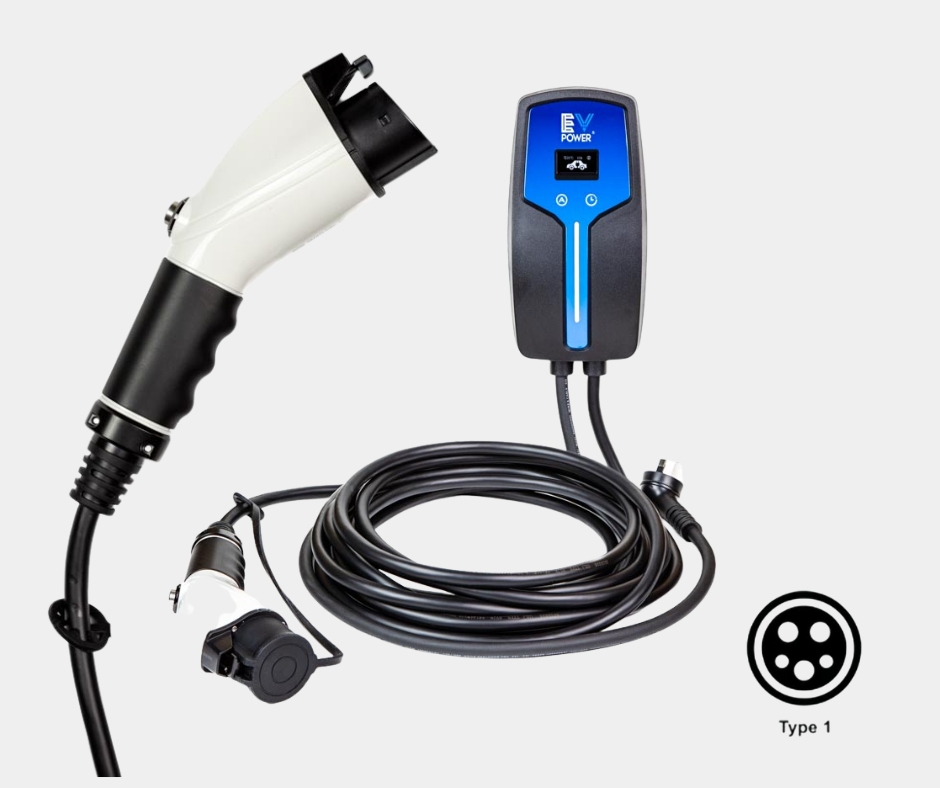

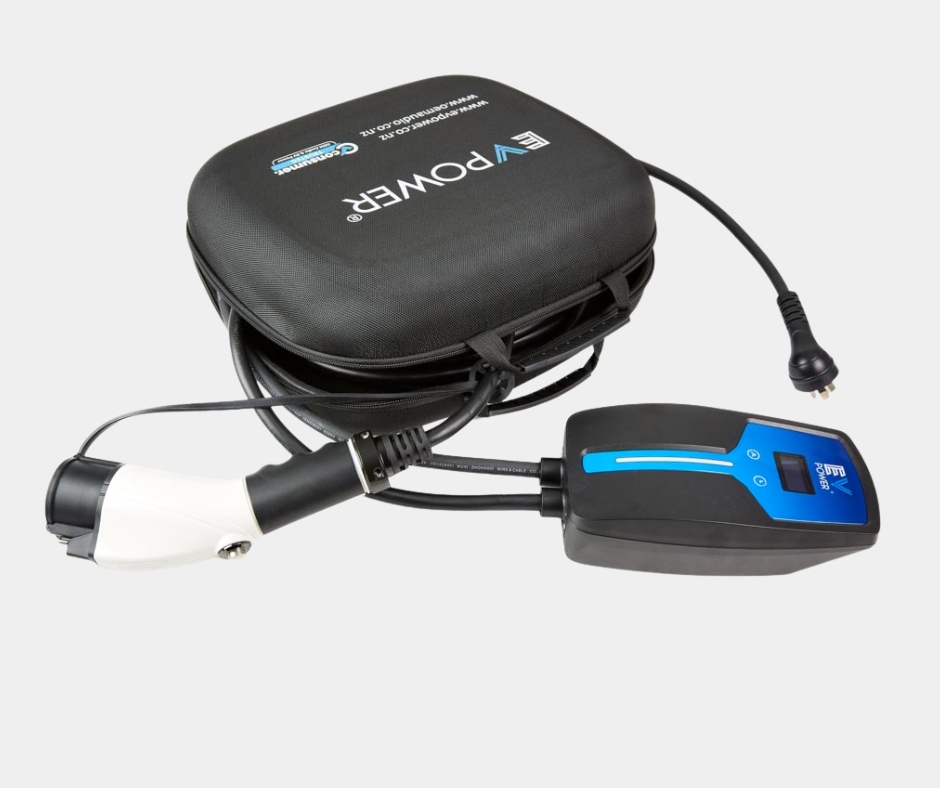

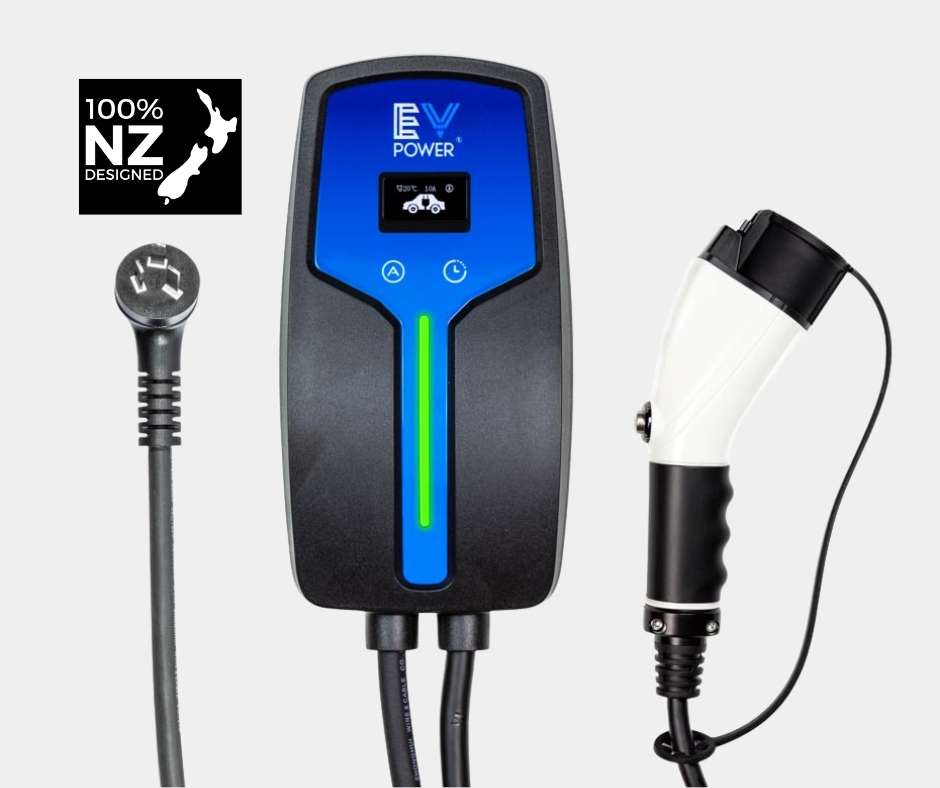

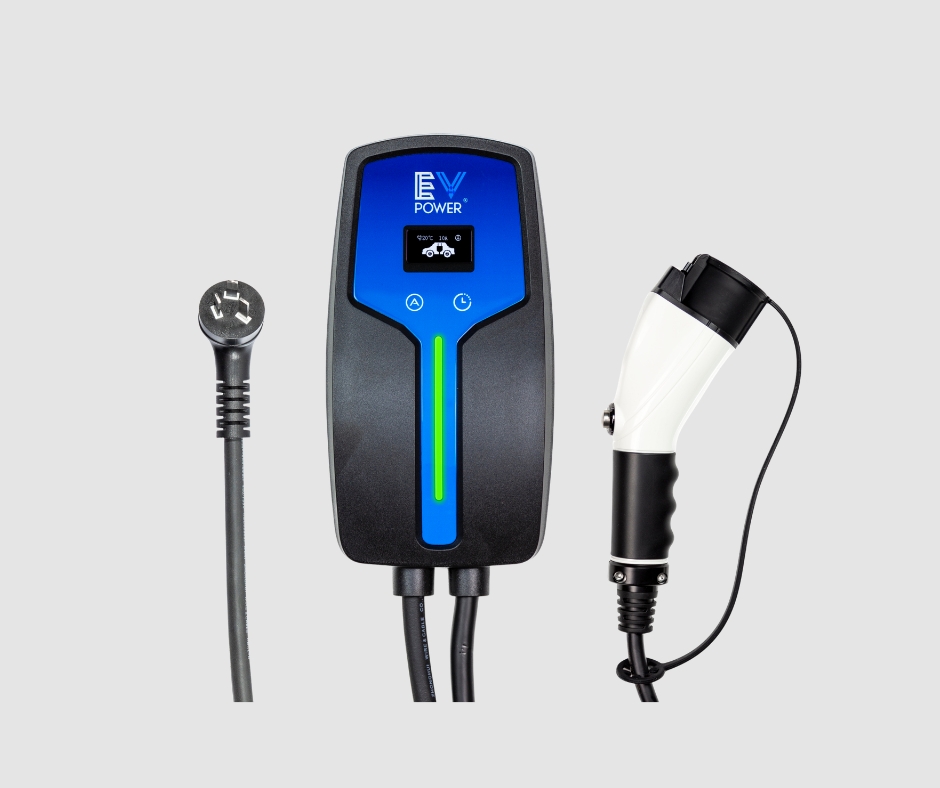

Classic Plus 5.0 Type 1, Portable Charger Cable 10 Amp
$479.00 Incl. GST
The EV Power Classic Plus 5.0 is a cutting-edge portable EV charging solution designed right here in New Zealand for Ex-Japan Type 1 vehicles.
We have designed this portable charging cable so that it is super easy to wall mount. Keeping the product up off the ground means you’ll reduce the wear and tear. Proudly developed in Christchurch in partnership with OEM Audio and INFact Design, the Classic Plus 5.0 reflects New Zealand innovation and commitment to quality. With over 50,000 EV products sold nationwide, you can trust the reliability of this locally crafted product.
- Reliability
- Safety
- Style
- Trusted New Zealand Design
Compatibility
This EV charging cable will only fit Type 1 EV/PHEV. If you are unsure please see our helpful page on identifying your EV here.
Key Features
- Delayed start (up to 12 hours) to use cheaper off-peak power.
- Charging Timer for convenience and control (up to 12 hours).
- Designed for Durability: The Classic Plus 5.0 features a unique wall-mountable base design is used to better protect against water ingress and enhance elegance.
- Built to last, it’s a product you can rely on for years.
- Flexible Charging Options: Switch between 6A, 8A, or 10A settings to suit your vehicle or power availability.

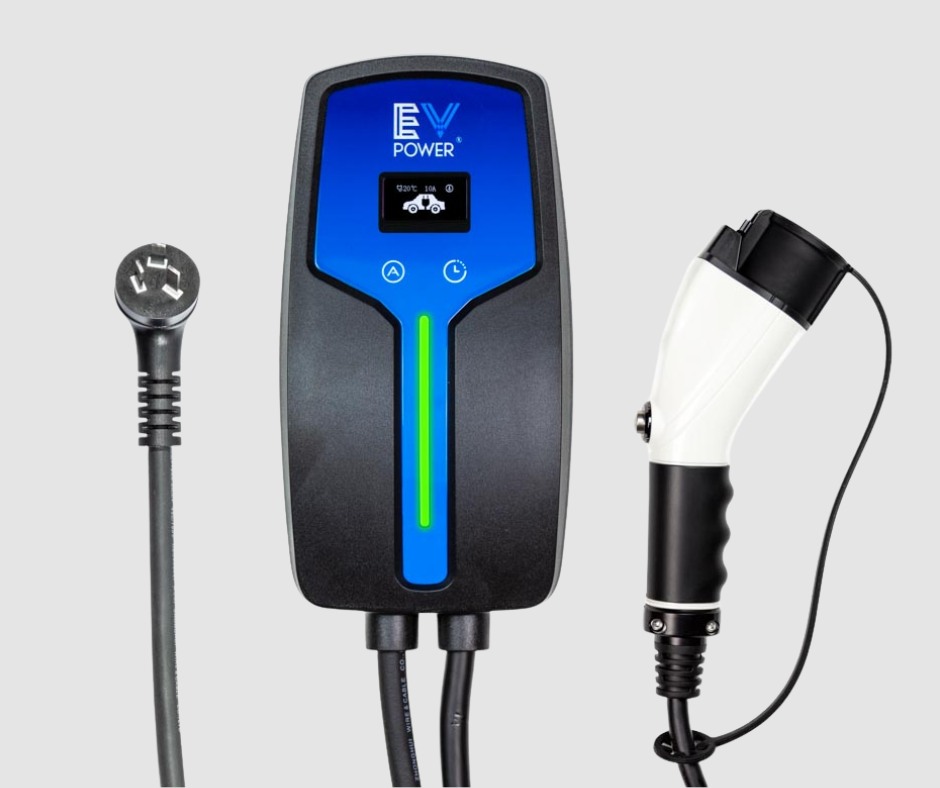

- User-Friendly OLED Display: Easily view charging time, delivered power, current rate, and voltage at a glance.

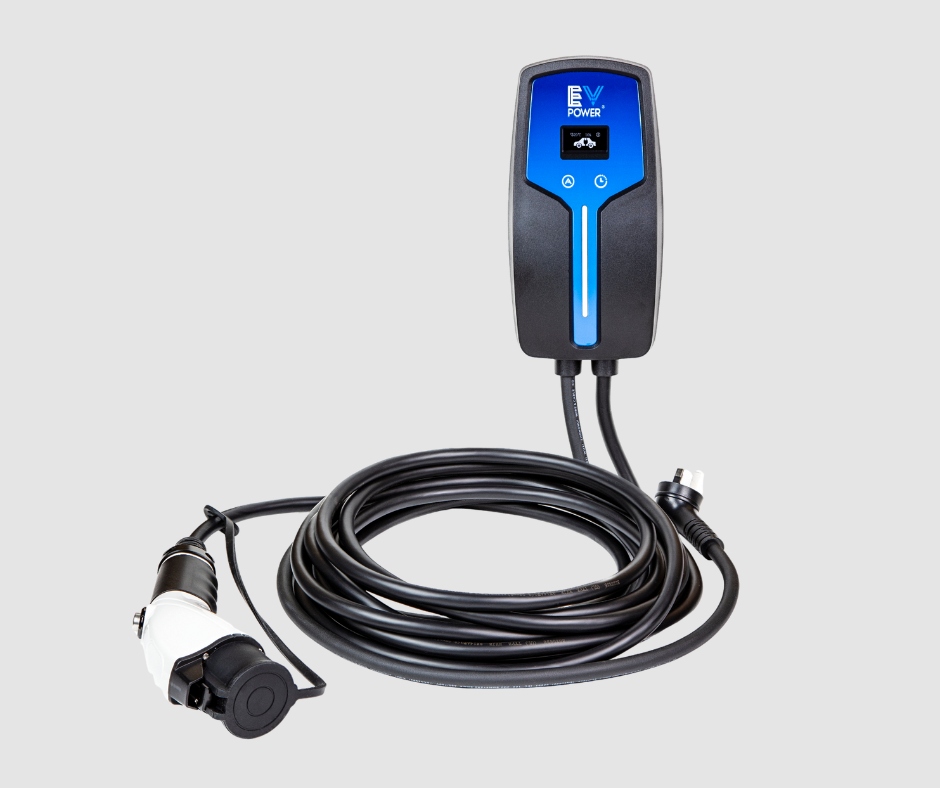

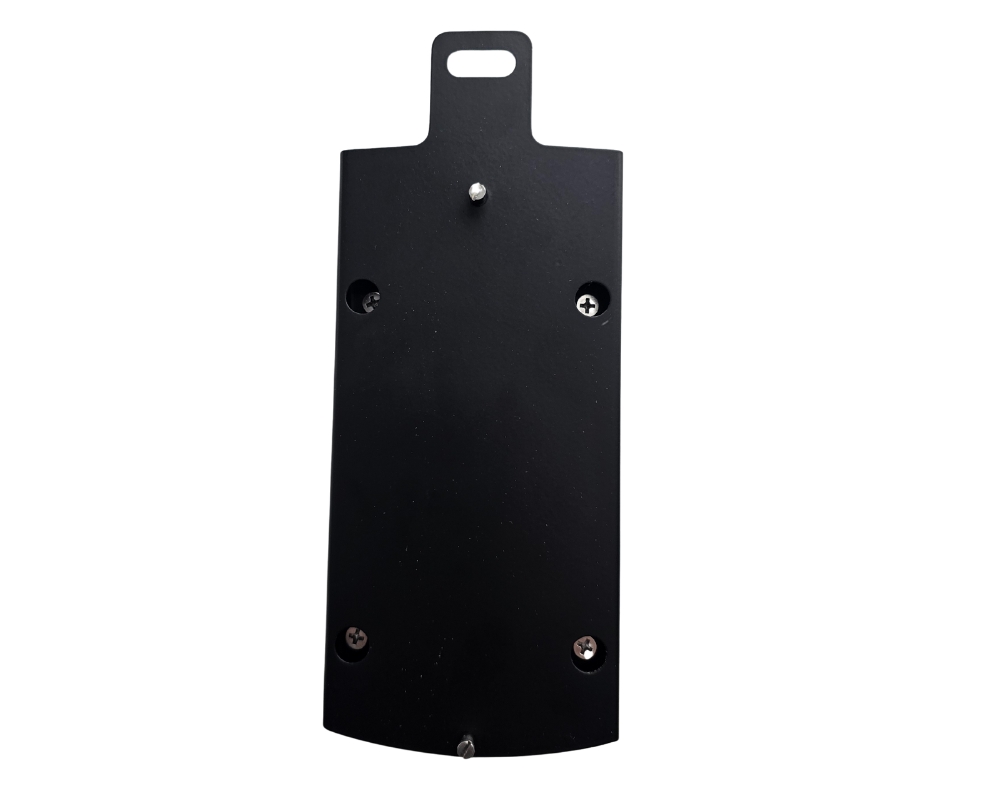

- Wall cradle for convenient mounting. Makes your portable charger appear to “float” on the wall.

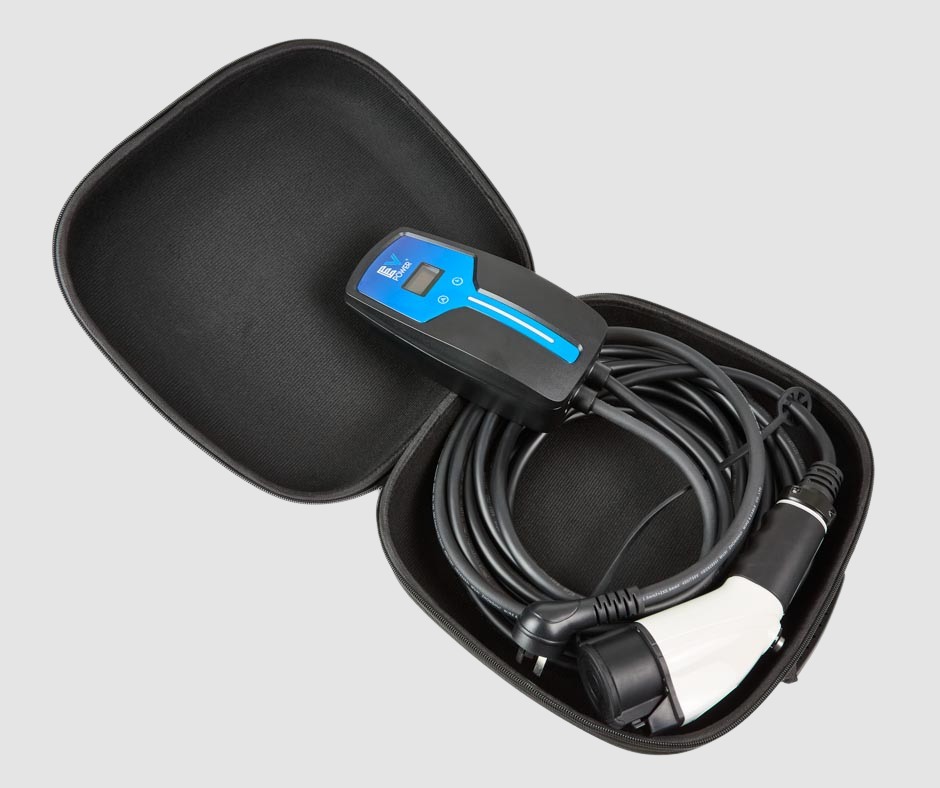

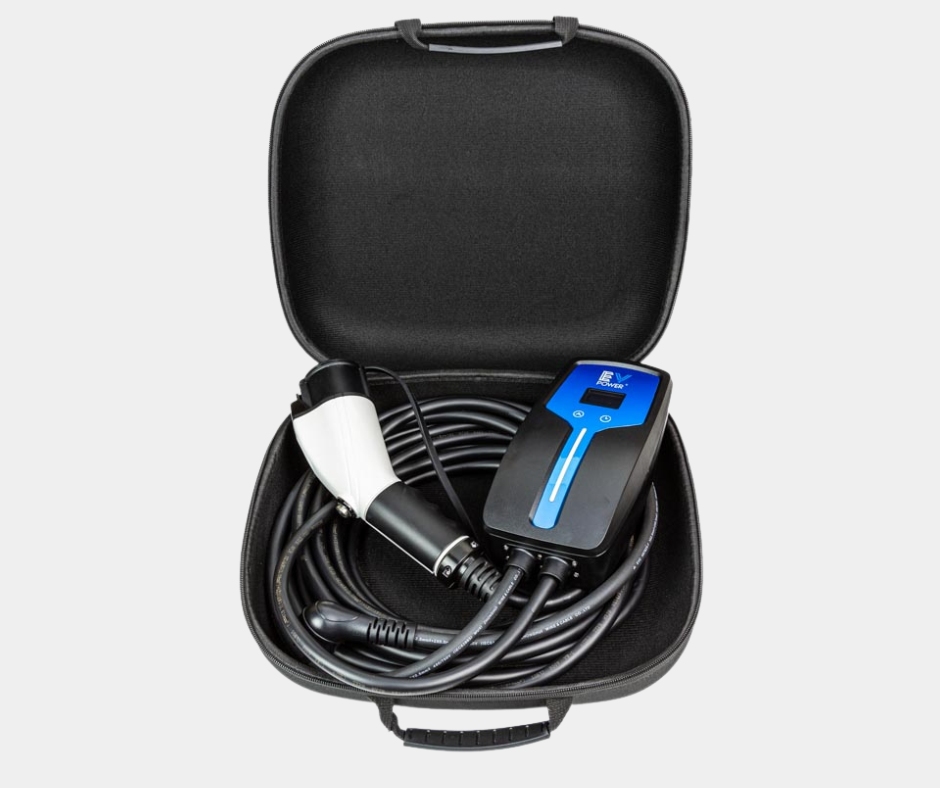

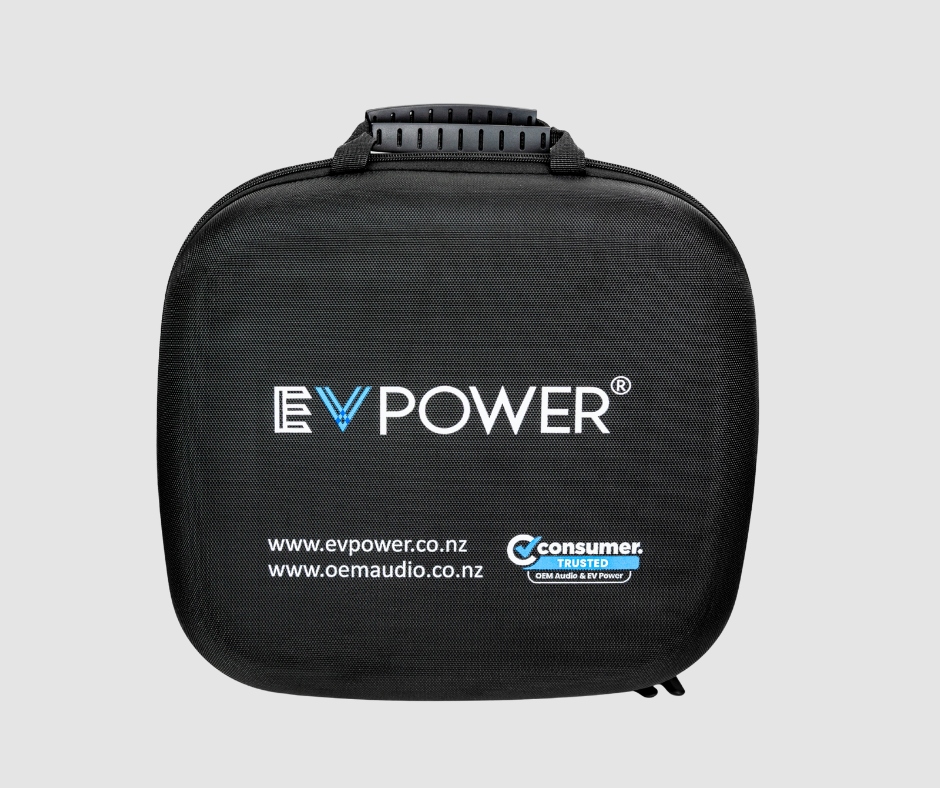

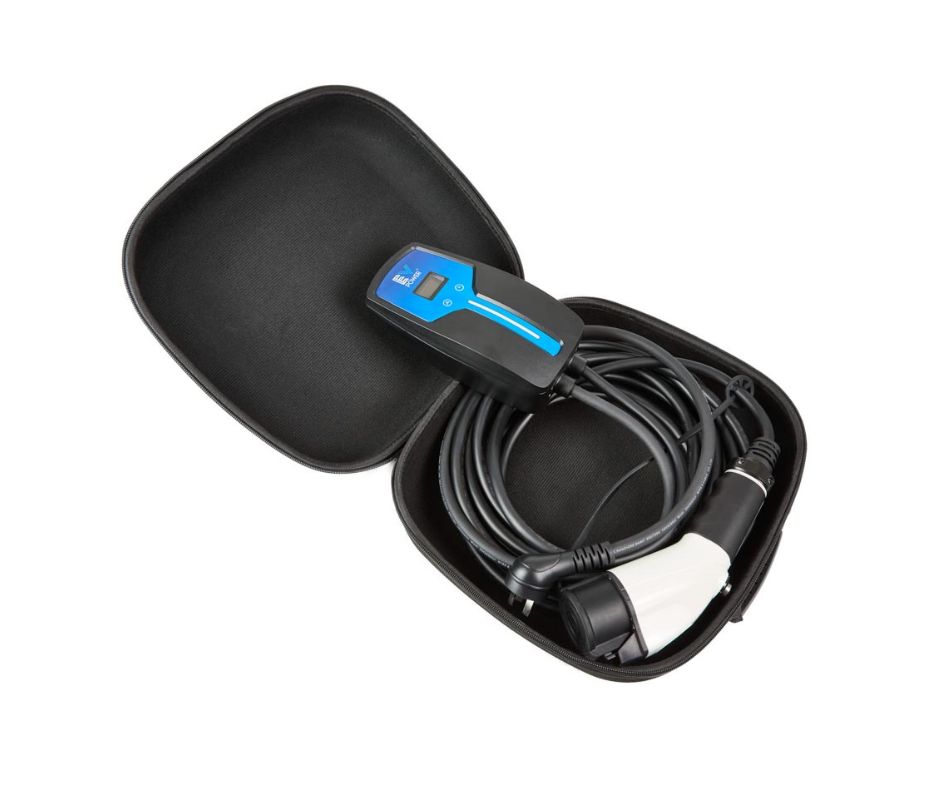

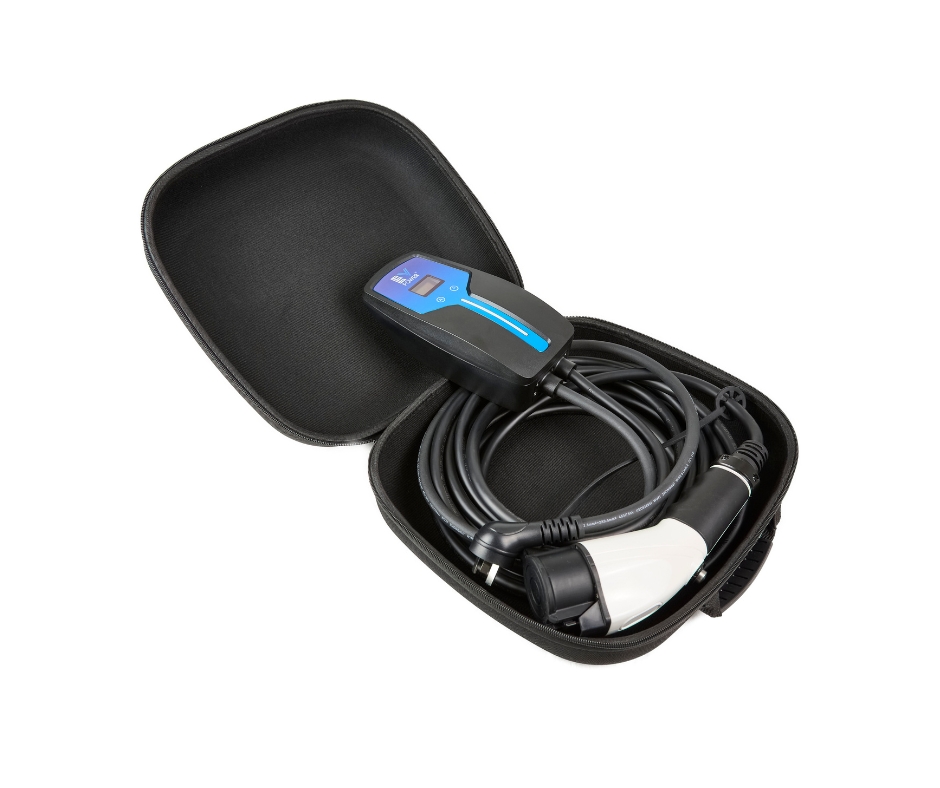

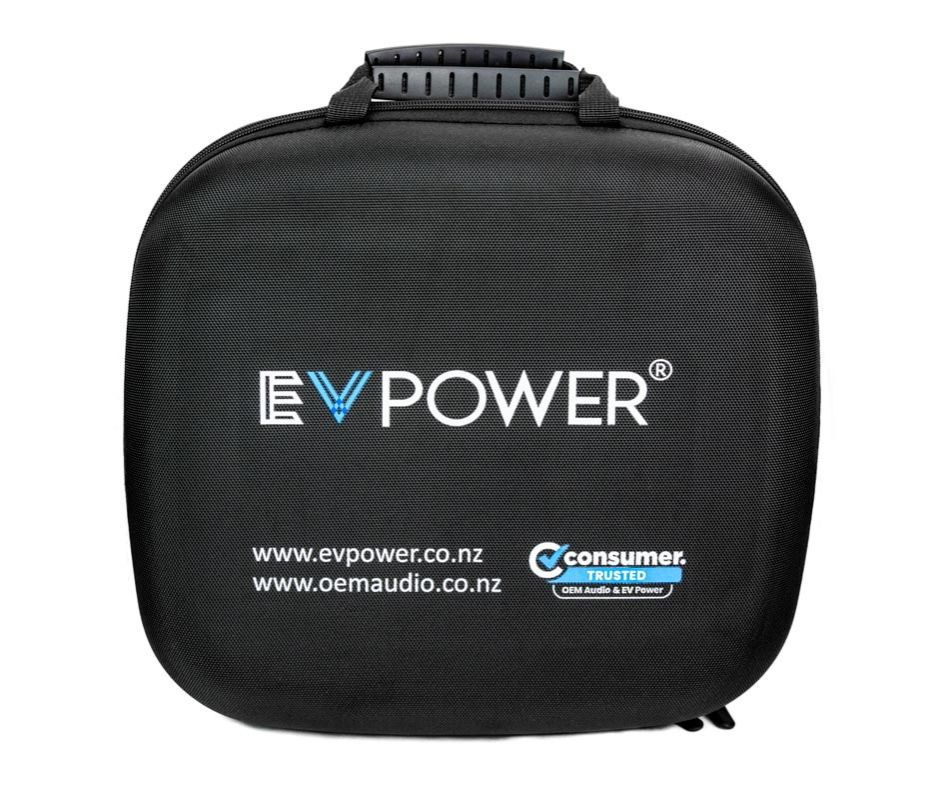

- Stylish, durable carry bag for portability.

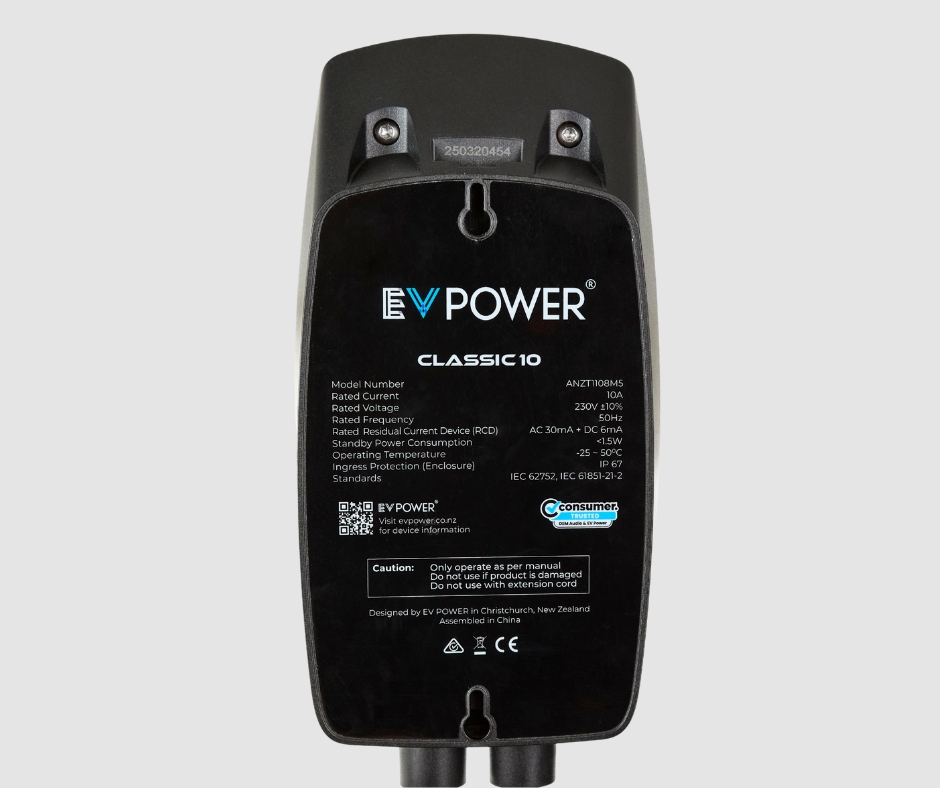

Specifications
- Cable Length: 1m inlet cord, 8m outlet cord (9m total).

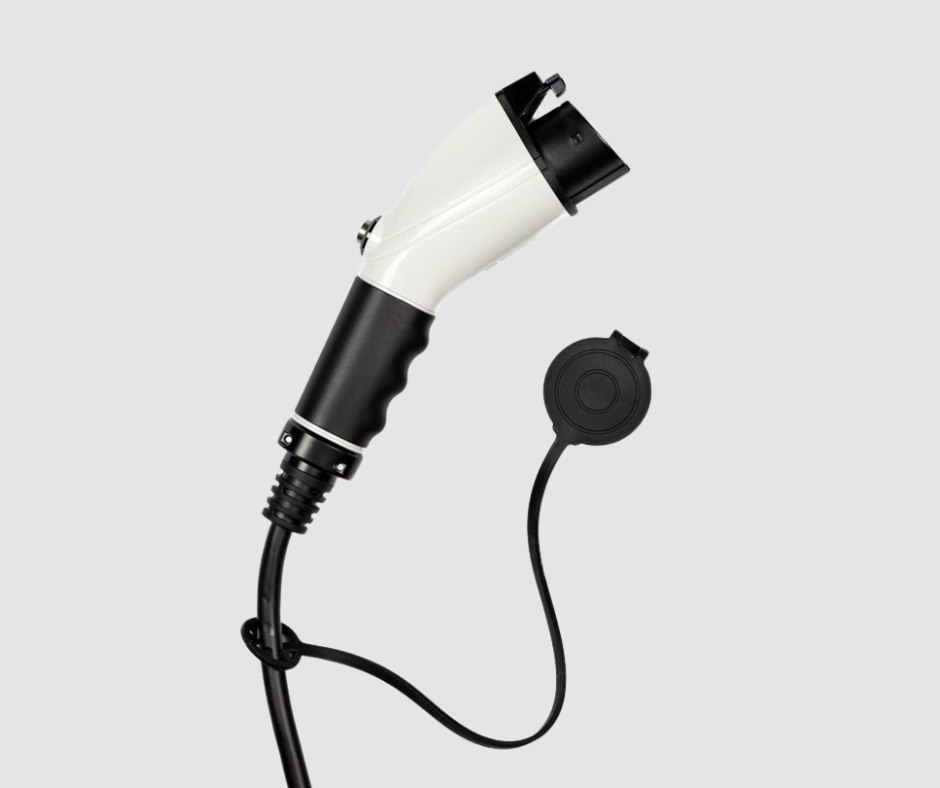

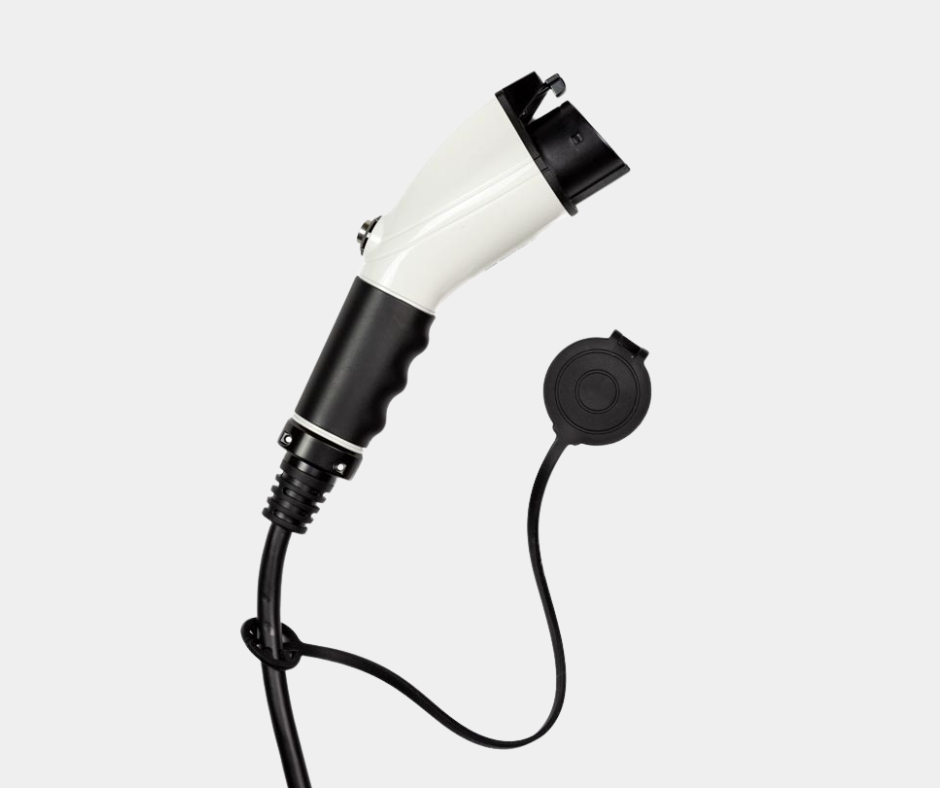

- Connector Type: Type 1 suitable for EVs (ex-Japan)
- Input Voltage: 230V AC, 50Hz
- Rated Current: 6-10A
- Rated Power: 2.3kW @ 10A
- Power supply: 1-phase
- Connector: Type 1Plug: 10A
- Dimensions: 220mm H x 110mm W x 64mm D
- Weight: 3.1kg unboxed (3.8kg with carry case)
- Working Temp: -30 to +50 degrees C.
- Humidity: 0-95% non-condensing.
- IP rate: IP 67 Dust- and water-resistant for safe use indoors or outdoors. Learn more about IP ratings
- Work altitude: <3000m.

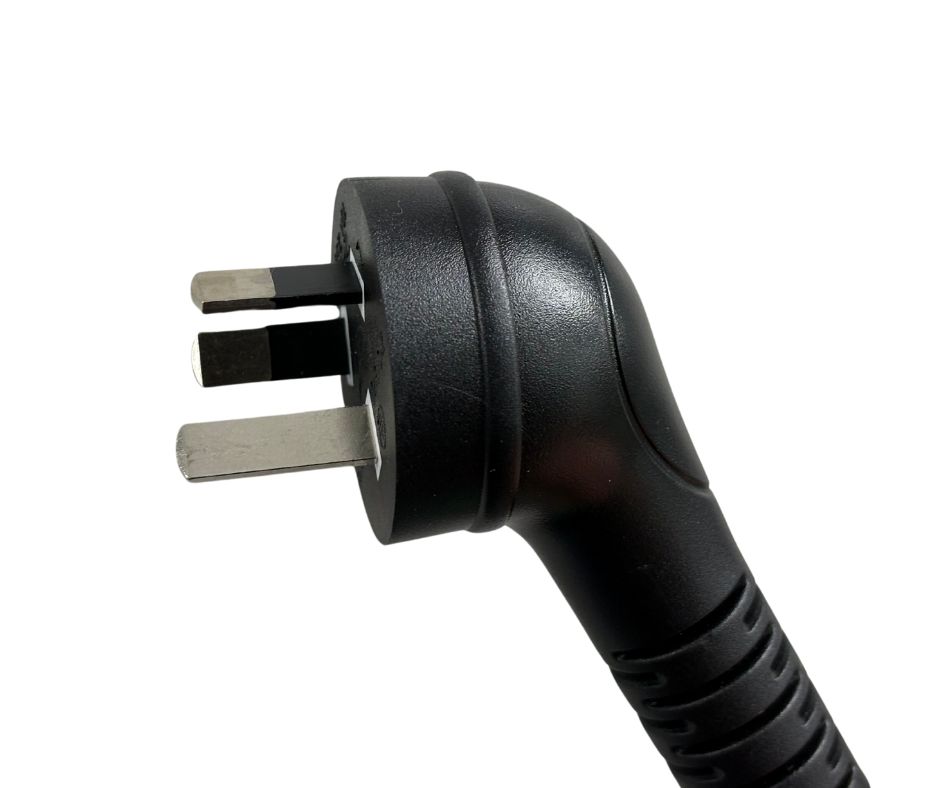

- Advanced Temperature Protection: Sensors in the plug pins ensure safe operation at full capacity, perfect for New Zealand’s 10A three-pin sockets.
- 6mA DC Fault Detection: Provides peace of mind by stopping DC feedback in the unlikely event of an onboard charger failure.
- Comprehensive Safeguards: Protection against overcurrent, overvoltage, and overheating (auto shut-off at 85°C) in compliance with IEC62752/IEC62196-2 and
- AS/NZ 3820;
- Residual current protection
- Leakage detection: 30 mA AC
Warranty
Three-year warranty
