The Ecolink EV Wall Charger represents the pinnacle of EV charging technology, seamlessly combining cutting-edge features with user-friendly functionality.

Designed to cater to a wide range of users, from individual homeowners to large-scale businesses, this innovative charger is set to transform the way we think about electric vehicle charging.

This product must be installed by a registered, qualified electrician. Please refer to our T&C’s.
Watch our walkthrough video on how to use the app on YouTube here.

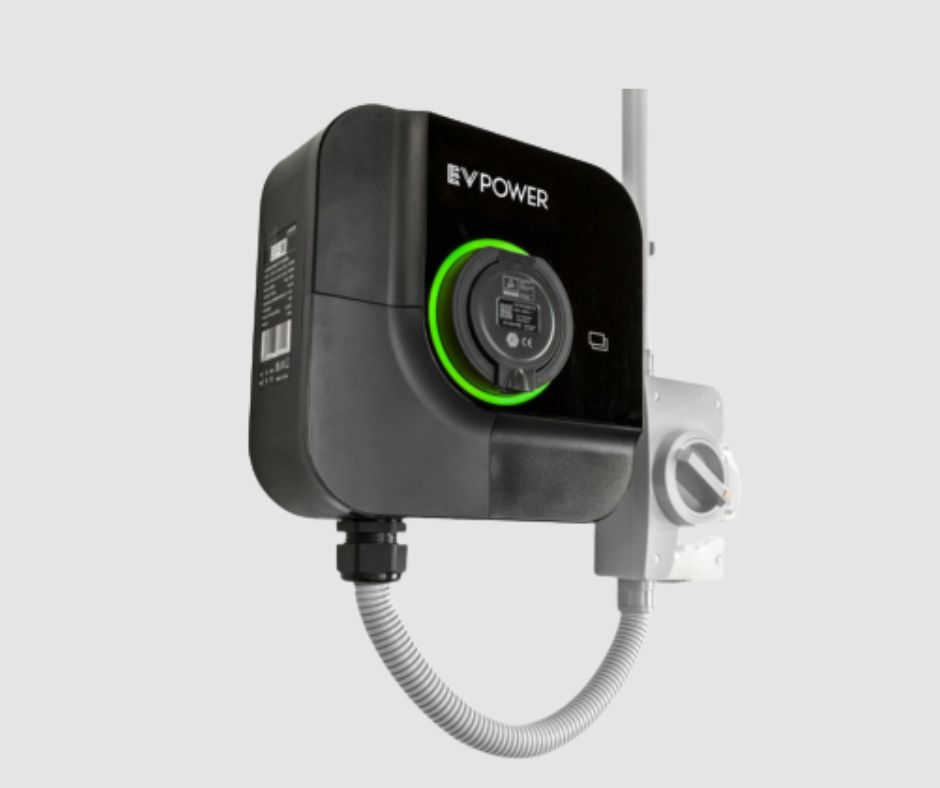

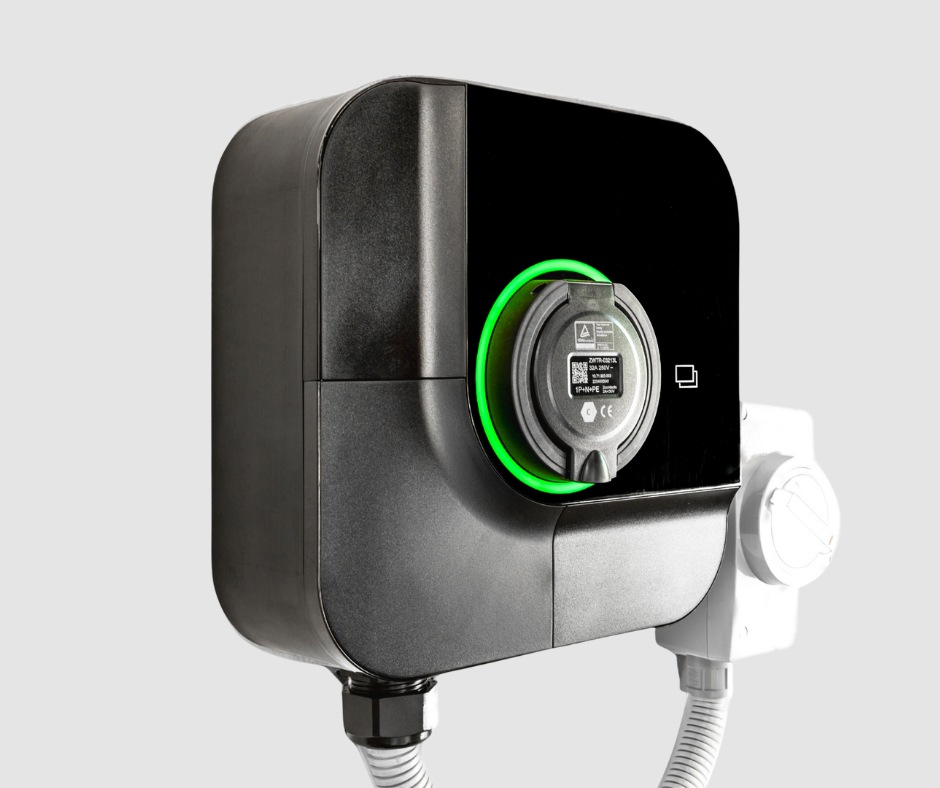

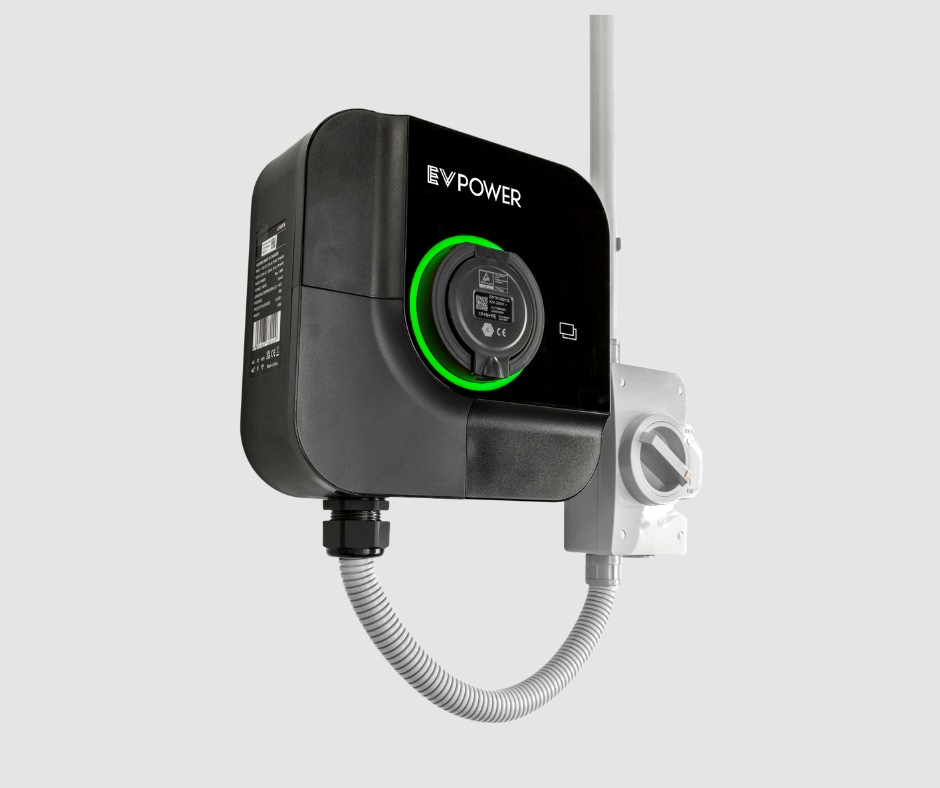

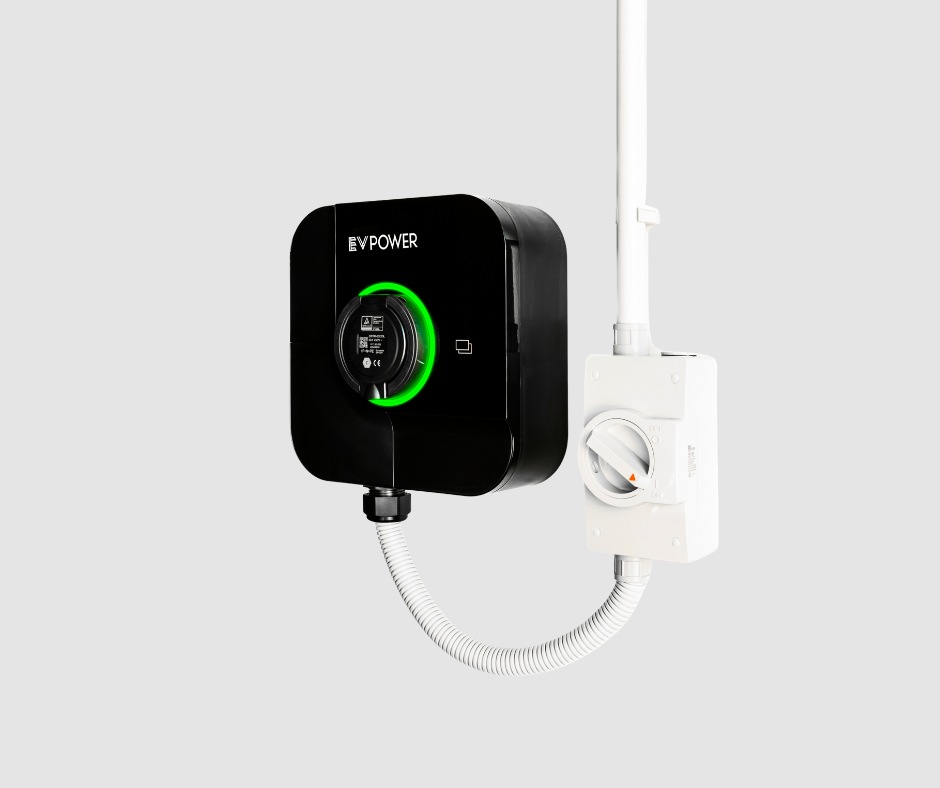

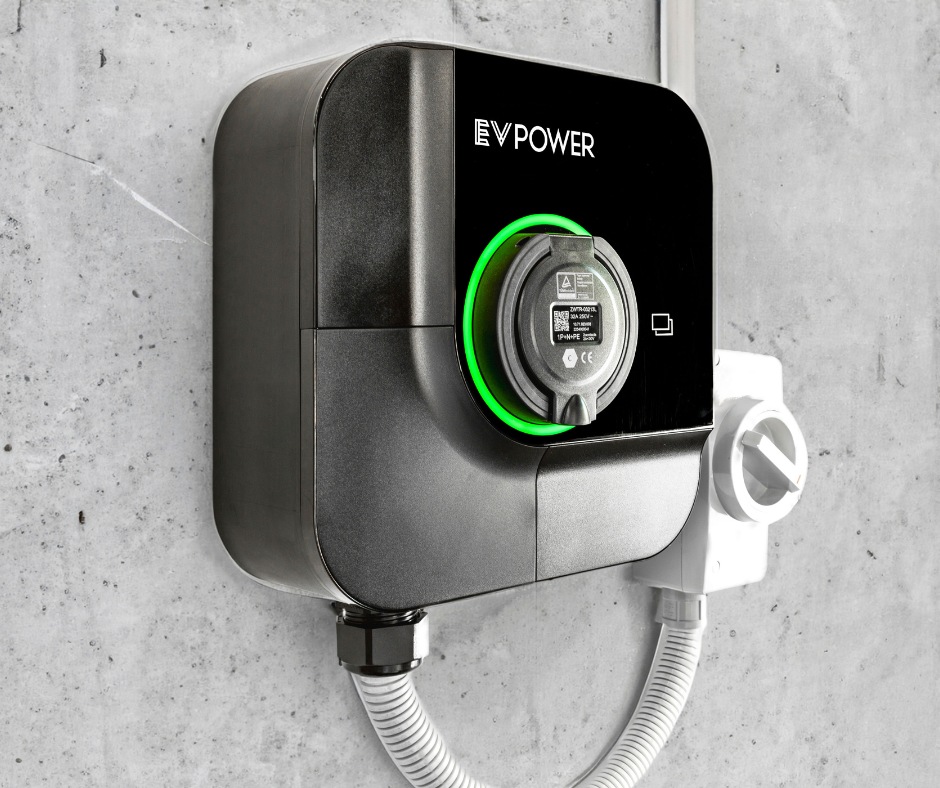

Requires Isolation Switch as pictured which is (sold separately).

Key Features:

Robust and compact.
Single phase .
Charge EVs/PHEVs at a rate of 40km of range per hour of charging (depending on your car’s battery – consult your car owner’s manual).
2 RFID cards so that you can prevent unauthorised access.
CT clamp supplied.
Customise using the Hcharger App – set up timers, view charging data, process firmware upgrades and more.
Untethered – Supply your own Type 2 charging lead.
Multi-unit connection capability

Specifications:

Rated power: 7.4kW, 22kW options to suit your charging needs
Type of Connection: 1P+N+PE, 3P+N+PE, compatible with 6-10mm2
Nominal Supply: 230V AC+/-15%, 400V AC+/-15%
Rated Frequency: 50Hz consistent and reliable
Adjustable Current: 6A – 32A Variable (via app)
Over Current Protection: 40A Supply + external MCB for added safety
RCD Protection: Built-in 30mA Type A RCD+6mA DC Protection (equivalent to Type B)
Standby Power Consumption: <8W which is very low
Integrated Protections: Comprehensive package. Over and under voltage, power overload, short circuit, dispersion currents, missing ground connection, surge, over temperature
Connectivity: Bluetooth/WiFi/Ethernet/4G/RS485 Control charging with the Smart App Built-in RFID reader.
Load Balancing: Yes
Installation Network: TN, IT and TT
Housing Material: PC+ASA(UL94 V-) fire rated
Mounting: Wall or pedestal

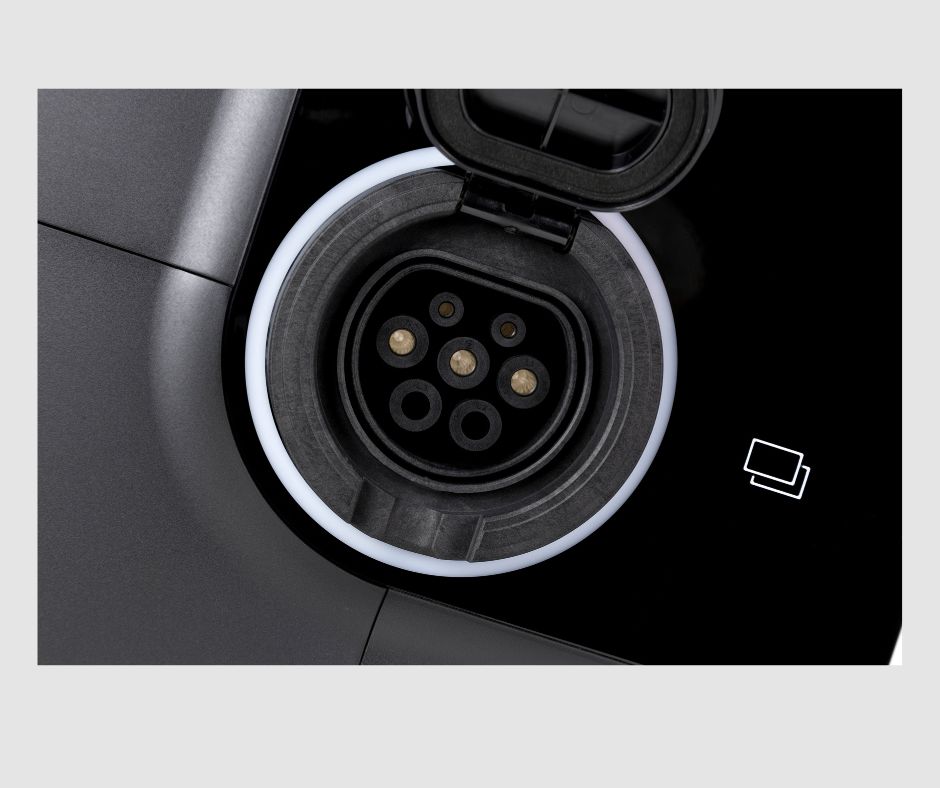

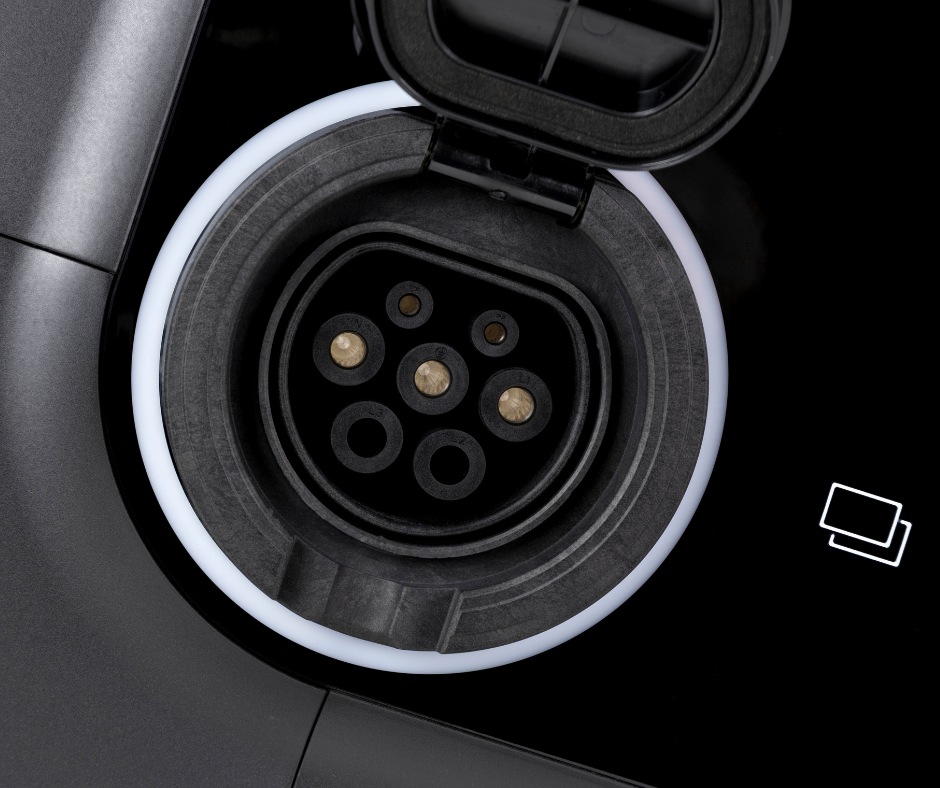

Protection (enclosure): IEC 62196 Type 2 with IP55 hinged lid, and the electrical lid is IP55 (Socketed) plus iK10 for durability
Operating Temperature: -25 °C – 50 °C
Humidity: 5% -98% non condensing
Installation: Indoor / outdoor
Dimensions: (HxWxD) 260 x 260 x 100/130 (mm)
Weight Socketed: 2.5kg
Certification: CE,RoHS, REACH and TUV
