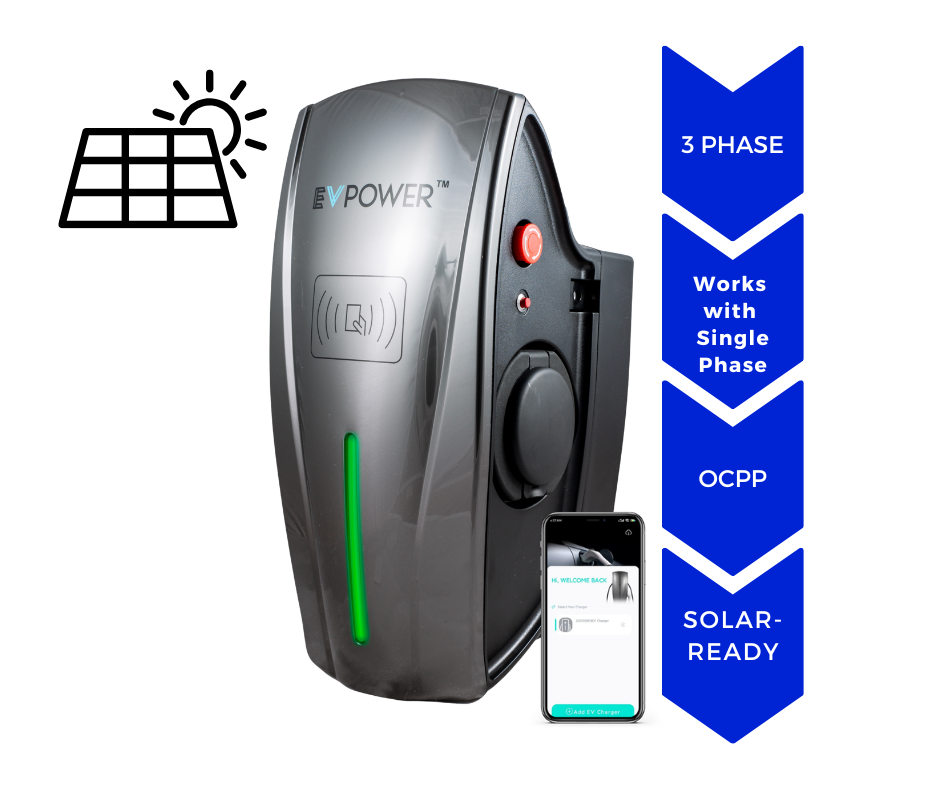

This 3-phase BCP Wall Charger with OCPP technology has a solar DLB built-in, allowing you to charge from solar panels if desired. This wall charger can be either wall-mounted or pile-mounted, and you can use single or three-phase power.

Compatibility

• Suitable for all Type 1 or Type 2 EV/PHEVs.
• Lead not included. View our range of charging leads here

Key Features

• OCPP-enabled (connection to a central management system via Open Charge Point protocol is optional). Read more about OCPP here.
• Solar-ready
• Rated current: 32A/22kW
• Single or three-phase power
• 5 RFID swipe cards included allow only authorised users to gain access to the charger.
• Z-Box App – view charging data, set charging current, voltage and max charging power.
  • Choose the correct DLB mode for solar (optional).
  • Set weekly charging reservation.
  • Z-Box App for real-time data interface – view charging data, set charging current, voltage and max charging power.
  • Connect via Bluetooth or wifi.
  • Set charging timer.
  • Set weekly charging reservation.
  • Choose solar/grid or hybrid.
• Dynamic Load Balancing (DLB) technology: Dynamic Load Balancing is technology which will maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home overload. Simply set the Max Current Value in the Z-Box app on your smartphone and the charger will automatically adjust the current to the car. The total household current will not be overloaded due to charging. For example if you set your car to charge at 32 Amp but your household appliances are using 45 Amp, then your car will only charge at 15 Amp (given 63 Amp is the usual supply by your power provider).
• Select source of power as either only solar, only grid or hybrid.

Specifications

• 3 phase or single phase.
• Built-in over-voltage and under-voltage protection(U>264V or U<187V)
• Over- current protection, over temperature protection, imperfect earth detection.
• CP abnormal signal protection and type A + DC 6mA for Europe standard.
• Operating temperature range: -25 ℃ ~ +55 ℃.
• IP65 (socket IP55) protection rate – provide shelter recommended.
• Operating humidity range 0-95% for indoor and outdoor.
• Temperature sensor built-in for fire protection.
• Leakage test function (to ensure the normal operation of leakage protection).
• Automatic reset after troubleshooting. That means when a charger stops working when an anomaly is detected, the charger will periodically self- check whether the anomaly is eliminated. The charger will start to work automatically after ensure the anomaly has been eliminated.
• The ramp-down stop current charging mode protects the EV batteries.
• Rated charging current can be set according to different home load conditions.
• Lightning protection to ensure personal safety.
• 7kg
• 380mm Hx 169mm W x 201/159 mm D

• Download ZBox here from the Google Play Store

3 Year Warranty

Installation Notes

• Includes 6mA DC Detection, no requirement for RCD Type B at installation.
• This product must be installed by a registered, qualified electrician.
•  Always ask a qualified electrician to check the wiring of your home before charging any EV/PHEV using your domestic circuits. If the installation of the EV Power Wall Charger is not correct then some features of the charger or app may not work properly.
• There should be no components left in the box as all parts are required to ensure safety and proper function!

Note: Electrician will need to wire in an isolation switch and supply RCBO at your switch board.

Safety

Our quality EV charging products have been designed for NZ conditions. A genuine Supplier Declaration of Conformity available on request (SDoC)

Always read the owner’s manual included with every lead we sell and ensure you are charging your vehicle safely. Never use a multi box and never use an extension cord.

Do not use imported leads or modify other EV charging cables or you risk electric shock or fire. Connecting multiple leads (end to end) together in order to extend the reach is dangerous. This is known as “daisy chaining” and will not charge your car.
