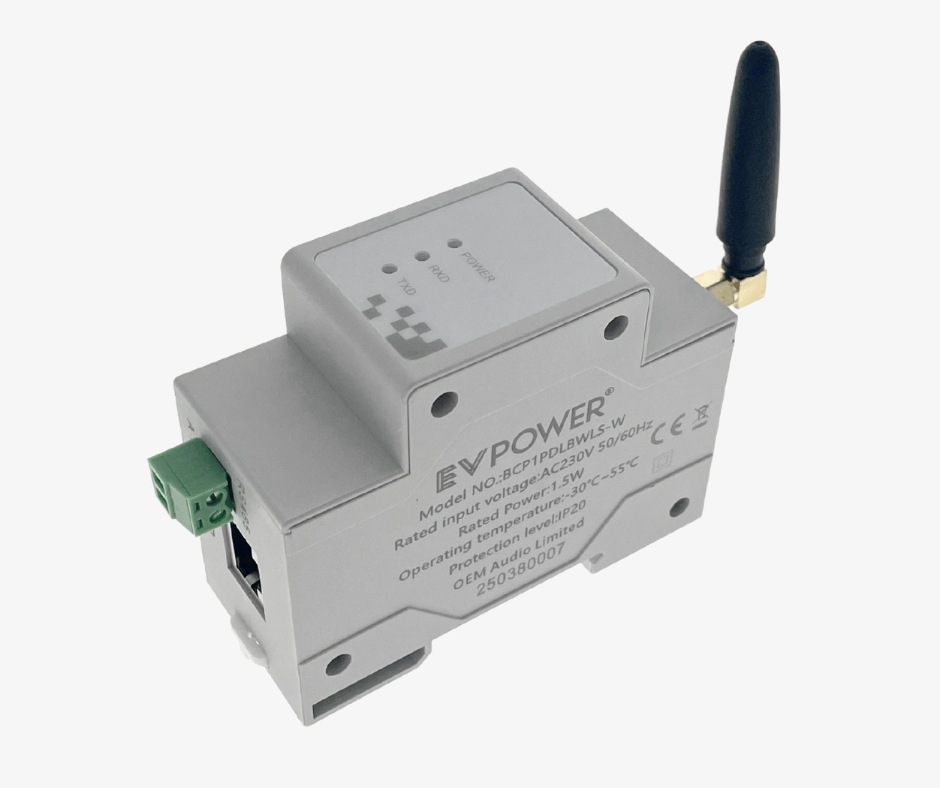

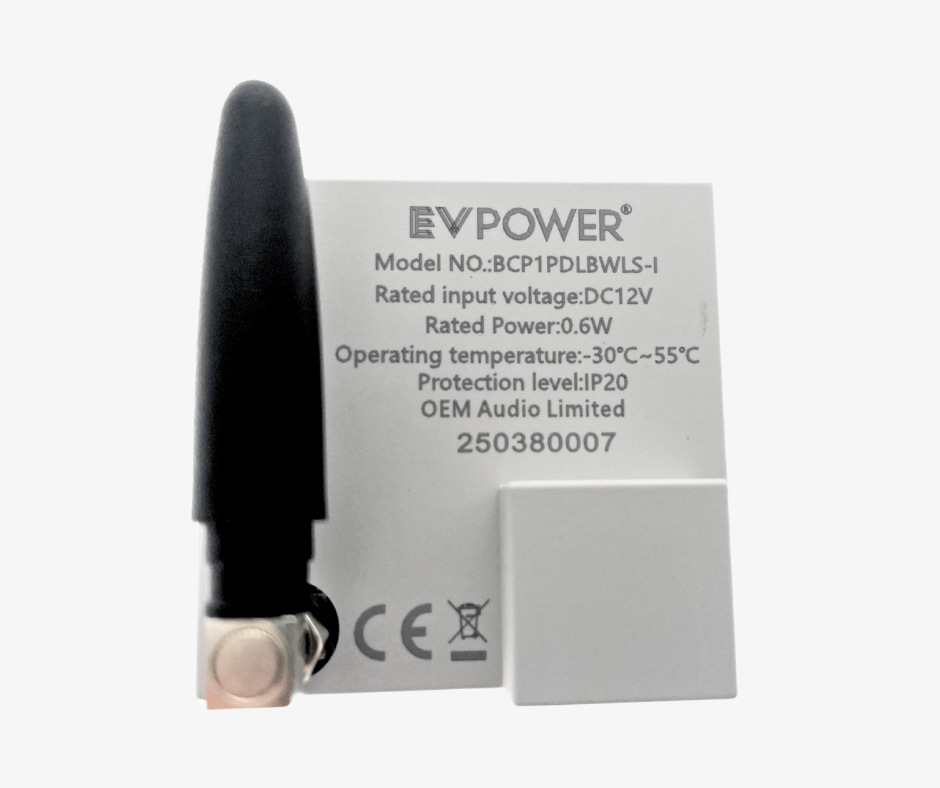

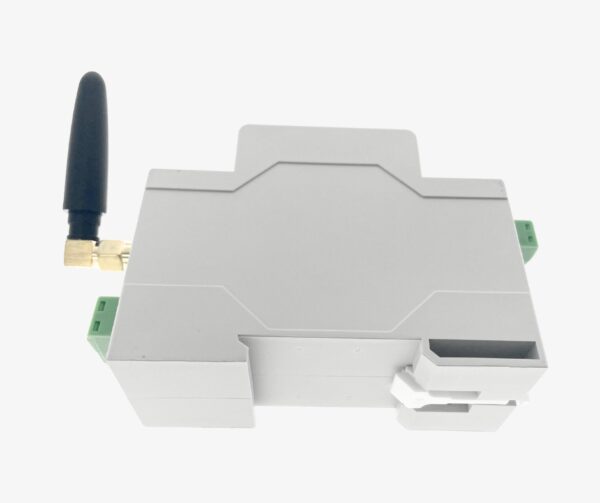

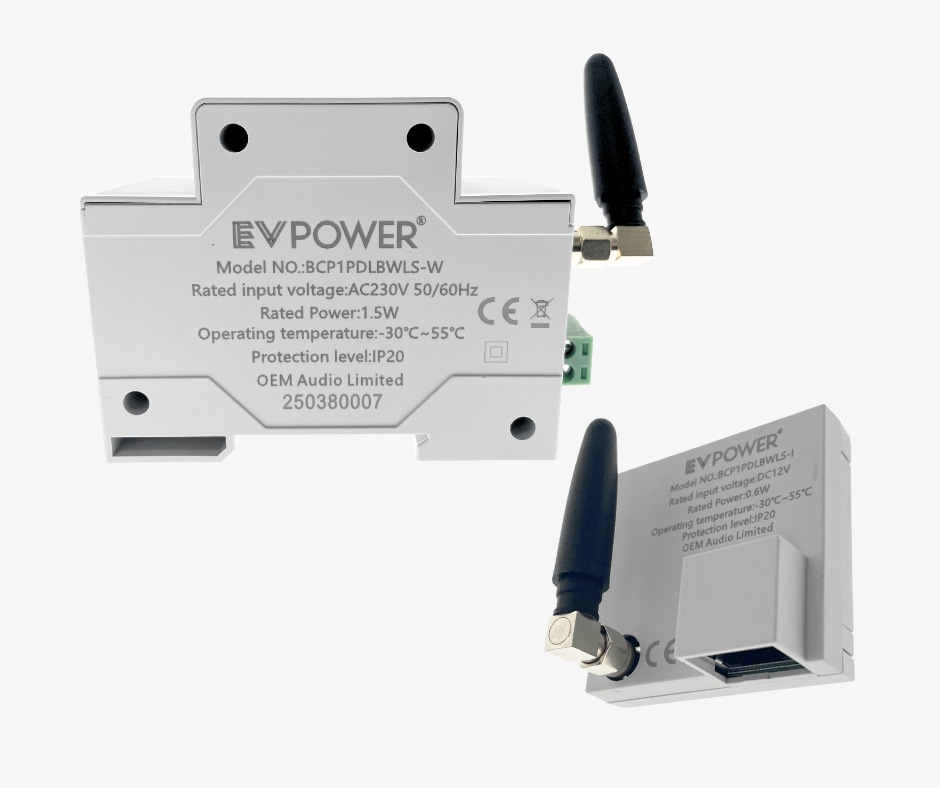

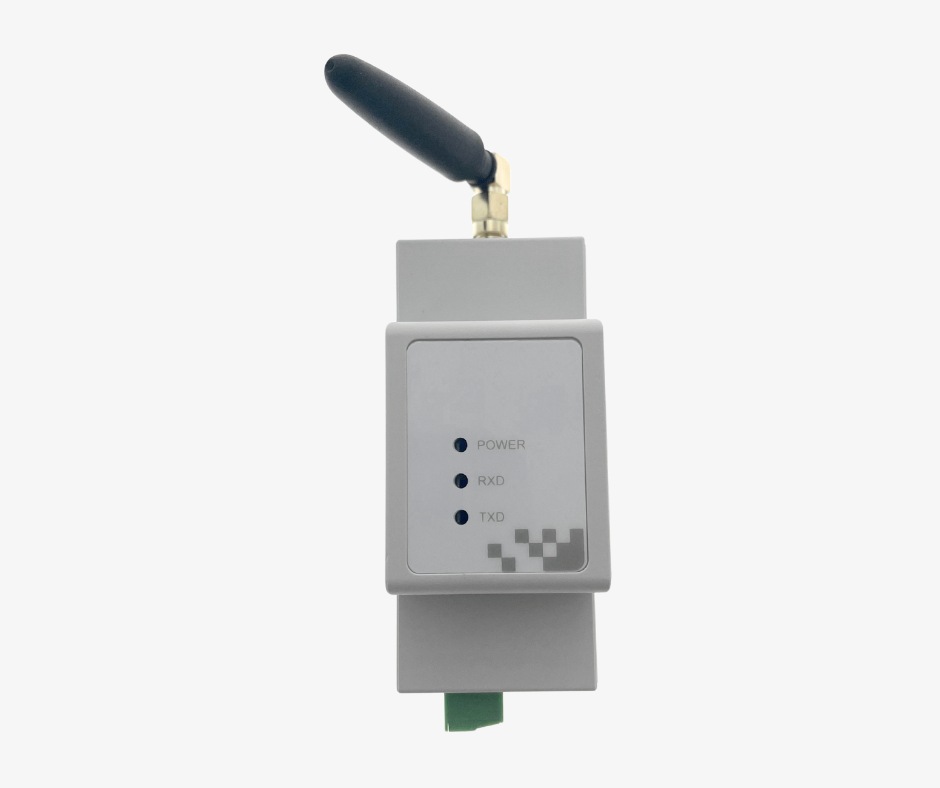

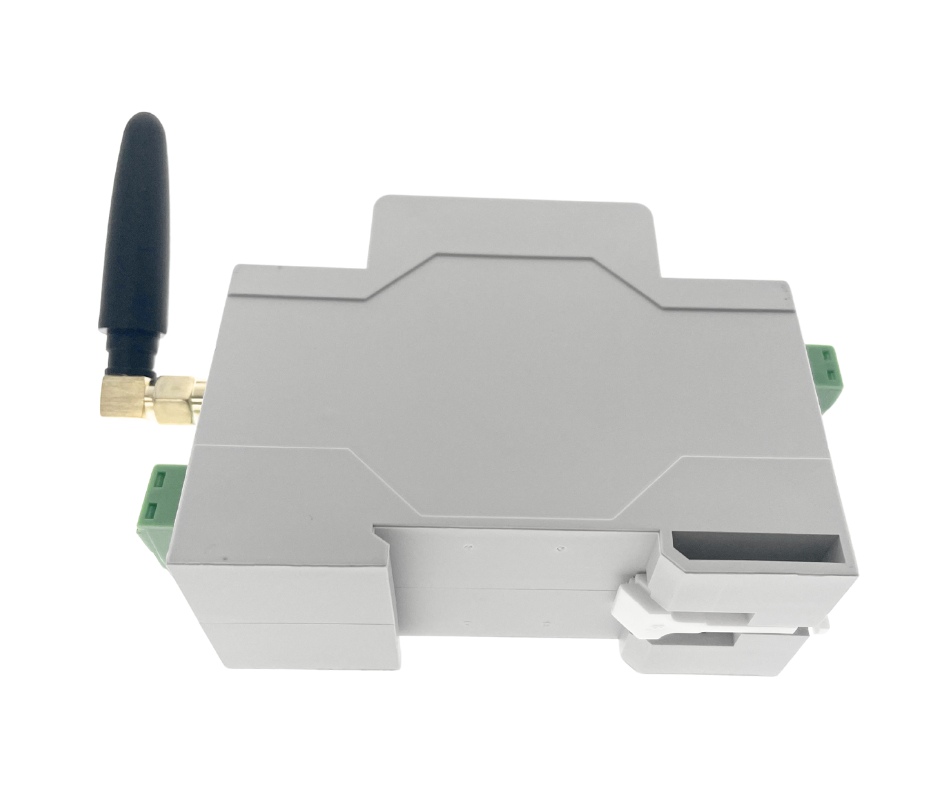

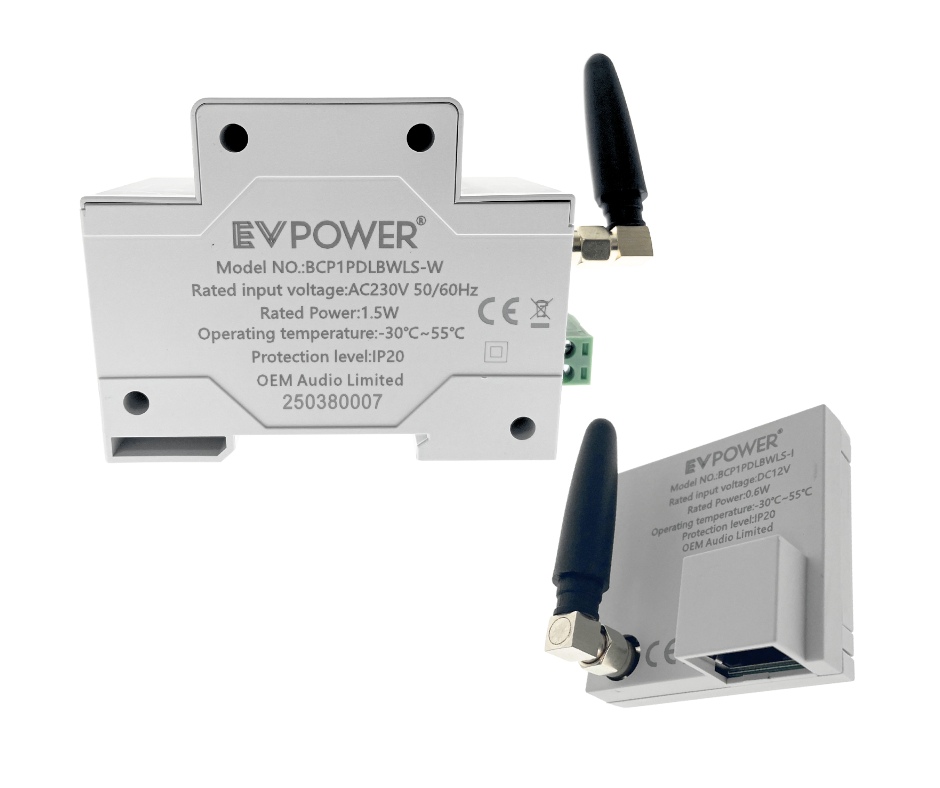

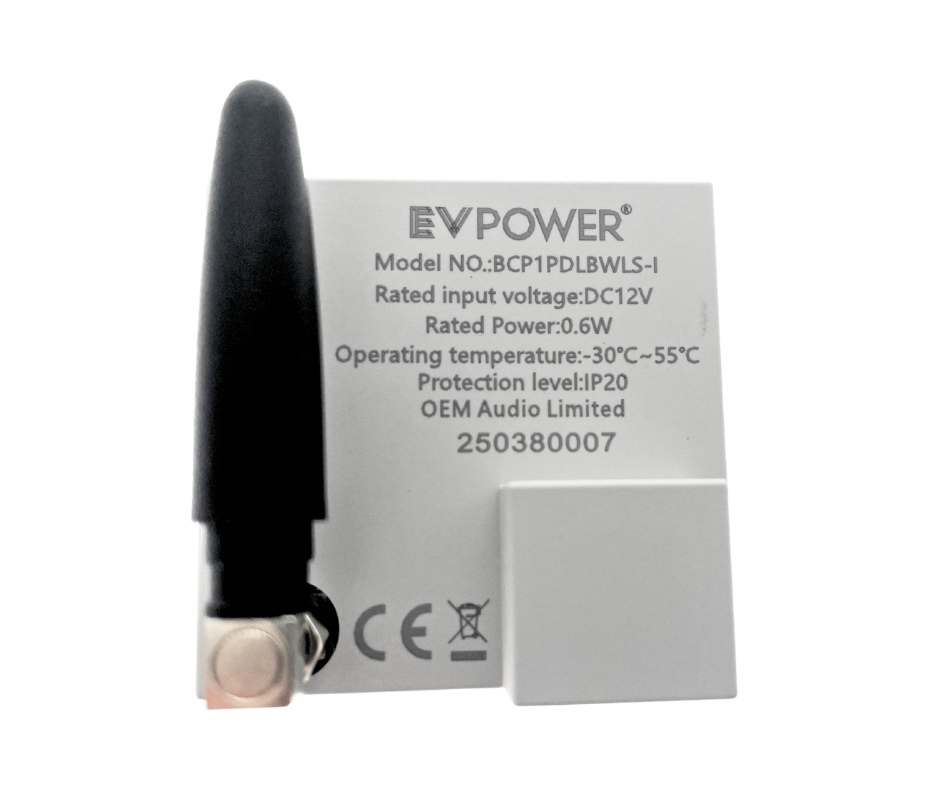

Wireless DLB Box for 1 phase BCP Wall Chargers

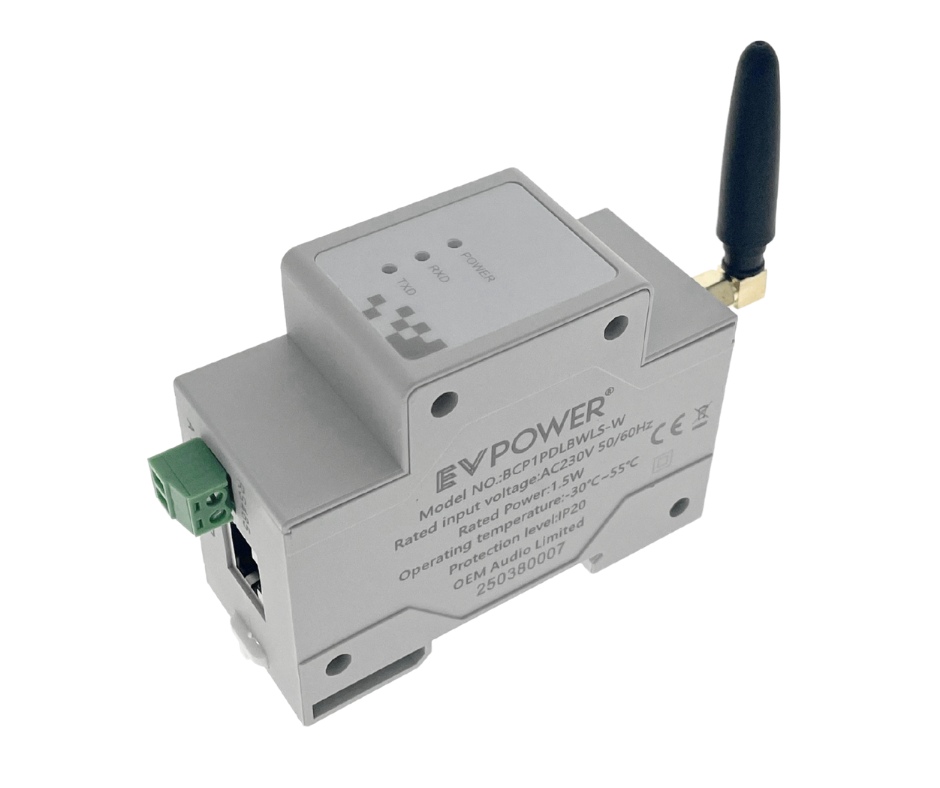

The BCP Wireless DLB box  (Dynamic Load Balancing Box) is a smart accessory that allows the BCP series wall charger to dynamically adjust charging power based on the total energy consumption of a building or site.

• The wireless version eliminates the need for a hardwired connection between the charger and the electrical panel, simplifying installation.
• Wireless Connectivity: Communicates wirelessly with the EV Power BCP Smart Wall Charger, using RF (radio frequency), allowing easy retrofitting.
• Real-Time Load Monitoring: Constantly measures the current consumption of the main building or facility.
• Dynamic Load Adjustment: If the building load increases, the DLB box signals the charger to reduce its output, avoiding tripping the main breaker.
• Priority Protection: Prevents electrical overload by prioritizing household loads over EV charging.
• Easier Setup: Setup non-invasive and fast.

Key Features:

If your house has a single-phase 63A supply and your EV charger is capable of using up to 32A, the DLB box ensures that the charger only uses available current.

For example:

• If the house is using 40A, the DLB limits the EV charger to 23A.
• If the house load drops, the EV charger can ramp up to 32A again.

What’s in the box?

• Mounting and connection accessories
• User/installation guide

Warranty:

2 year warranty
