The EV Power LRCD Plus 10 Amp Portable Charger Cable is for ex-Japan Type 1 vehicles.

This portable charging cable with a Mode 2 10 Amp IC-CPD features adjustable current, allowing you to charge your Type 1 EV at a rate that suits you.

The LRCD Plus Portable Charger incorporates full safety protection and is compliant for use in NZ.

Timing delay: Set charging to start when power prices are lowest.
Charging Timer: Program the charging duration.
Temperature sensors at the pin.
Everyday home charging.
Travel.

Compatibility

This EV charging cable will only fit Type 1 EV/PHEV. Ff you are unsure please see our helpful page on identifying your EV here.

type 1 port

Key Features

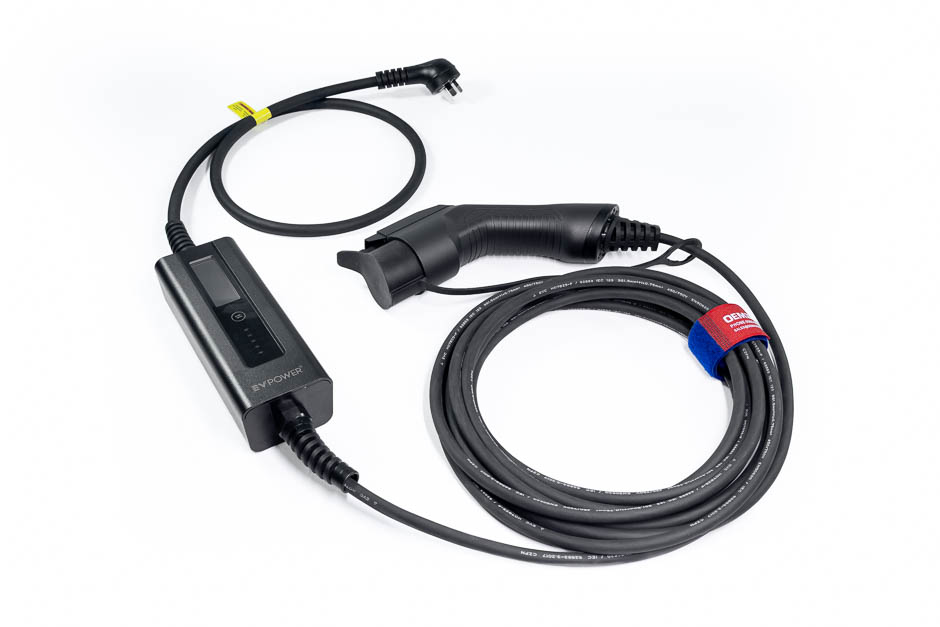

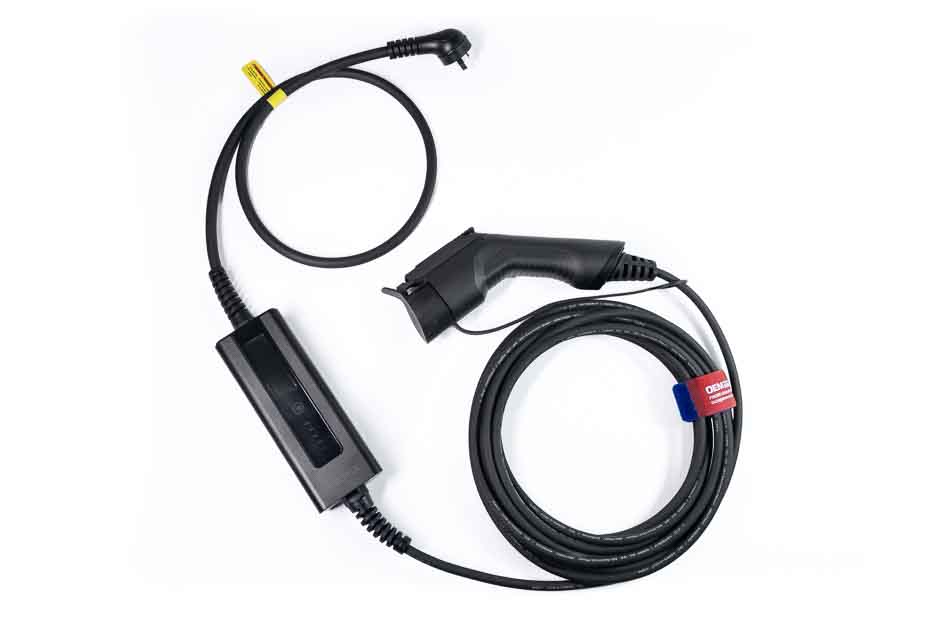

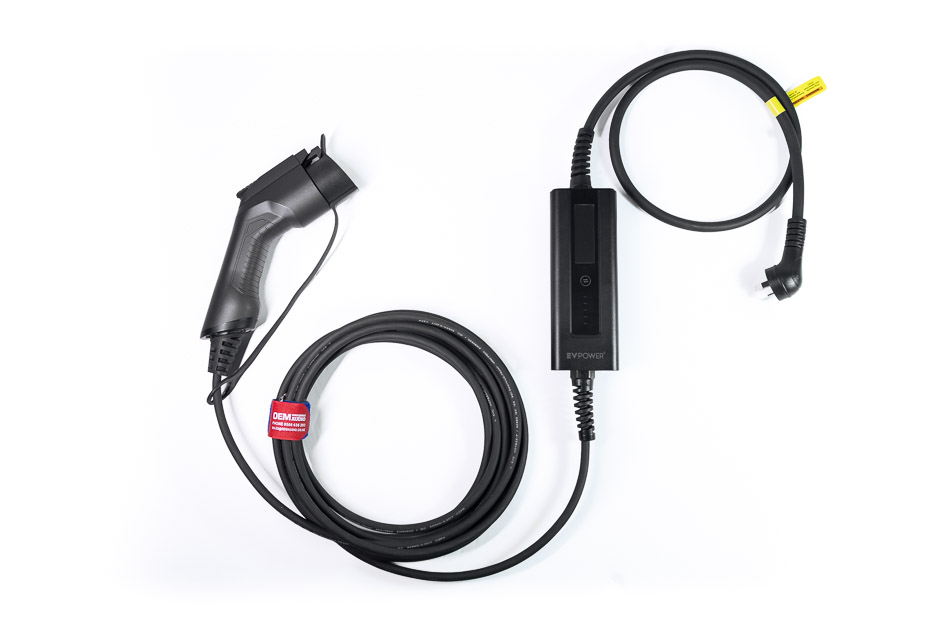

Total cable length of 7m, (1m inlet lead + 6m vehicle charging cable).

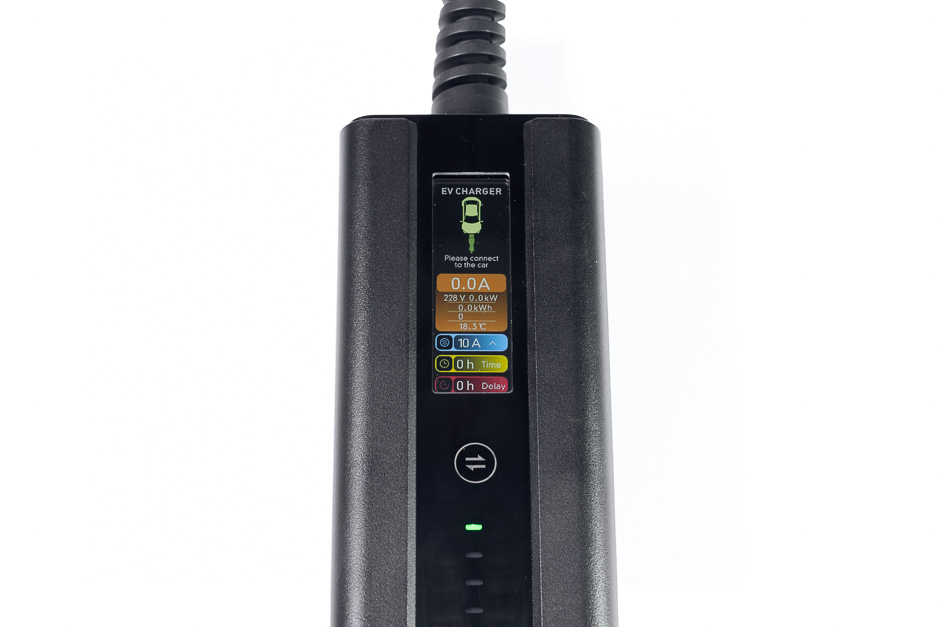

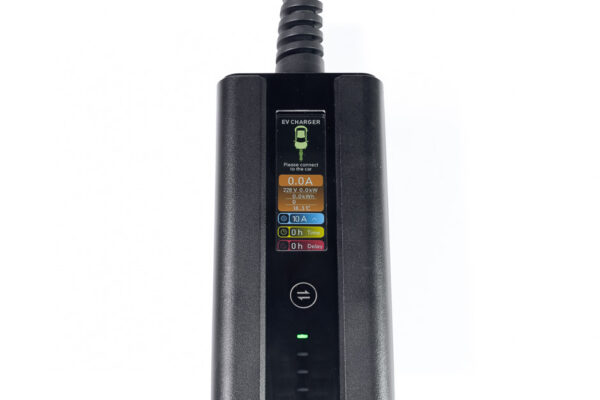

Extra large 2.6″ colour display.
Switchable between 6A, 8A, and 10A, allowing the charging current to be reduced. Perfect when using older wiring, shared circuits, or locations with limited power capacity.
6 mA DC residual direct current detection, allowing use with a standard Type A RCD where permitted.

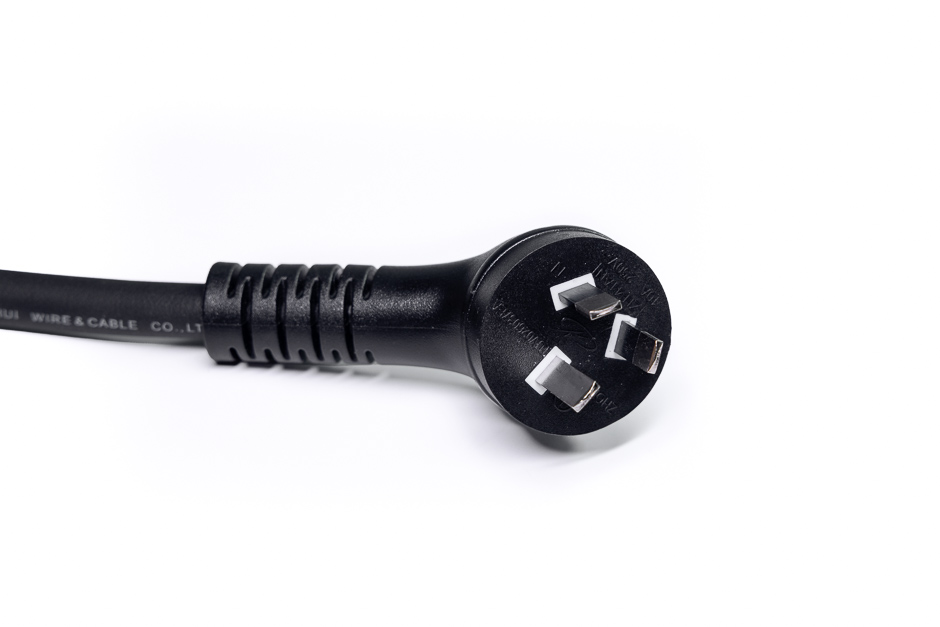

An integrated temperature sensor within the AU/NZ three-pin plug continuously monitors plug temperature during charging. If abnormal temperature rise is detected, charging is automatically interrupted to reduce the risk of overheating.
IEC 62752 requirements met for portable EV charging equipment.

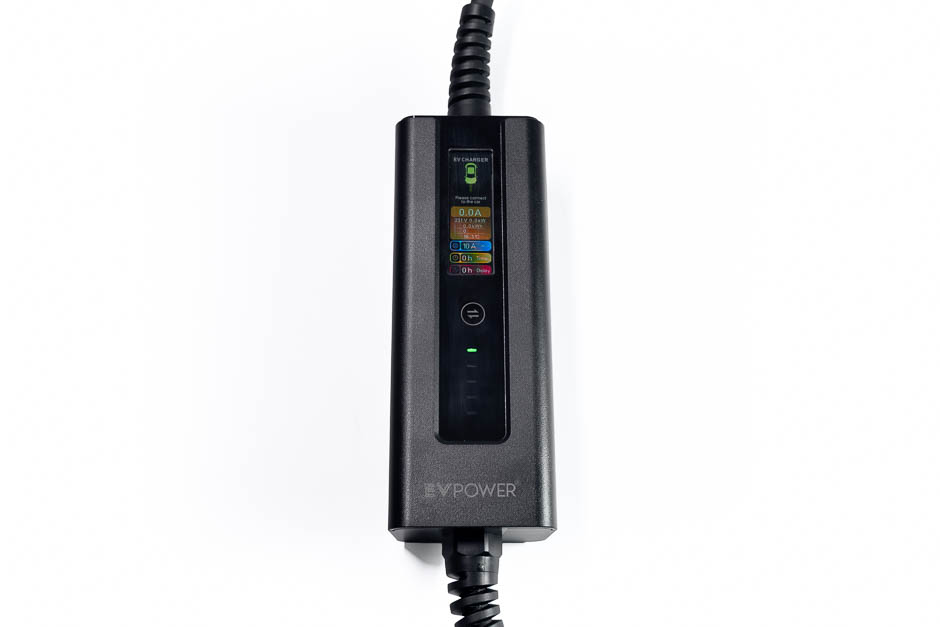

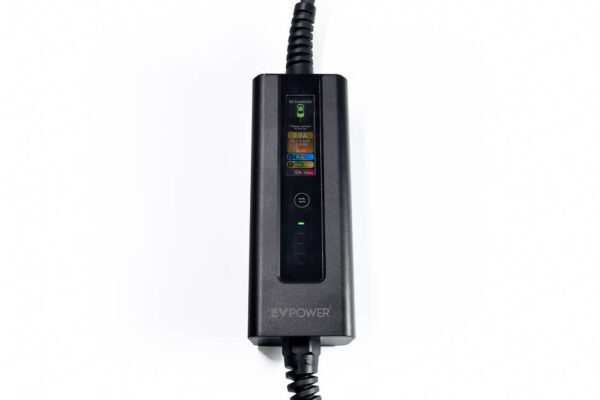

Compact in-line control box.
Status indication lights
Earth leakage protection.
Under voltage protection.
Over load protection.
Short circuit protection.
Over-temp protection.
Lightning protection.

Specifications

Input voltage: 230V AC/50 Hz
Single-phase
Selectable current: 6/ 8 / 10 Amps
Maximum output power: 2.3 kW (at 10A)
Charging mode: Mode 2 (IC-CPD)

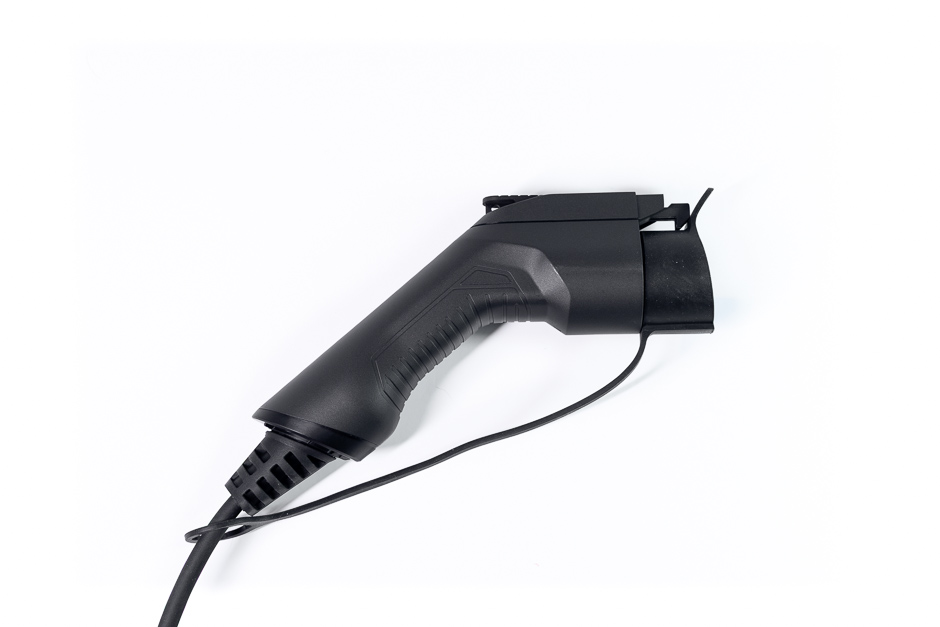

Vehicle connector: Type 1 (SAE J1772)
Residual current protection: 6 mA DC detection (RDCDD)
Plug temperature monitoring: Integrated sensor at AU/NZ three-pin plug
Compliance: IEC 62752, CE, RoHS
Total cable length: 7m
Inlet cable length: 1m
Vehicle cable length: 6m
IP65
67/52/196 mm 1.75kg

Warranty

Two year warranty

LRCD Plus Type 1 10 AMP Portable Charger Cable 7m

Name: LRCD Plus Type 1 10 AMP Portable Charger Cable 7m
SKU: BEST1LRCDPLUS10A
Price: 303.48 NZD
Availability: InStock

$303.48 Incl. GST

In stock

SKU: BEST1LRCDPLUS10A

Category: Portable EV Chargers

Tags: Audi Type 1, BMW EV Charging (Type 1), Lexus Type 1, Mazda Type 1, Mercedes Type 1, MG Type 1, Mini Type 1, Mitsubishi Type 1, Nissan Type 1, Peugeot Type 1, Porsche Type 1, Subaru Type 1, Toyota Type 1, Volkswagen Type 1
