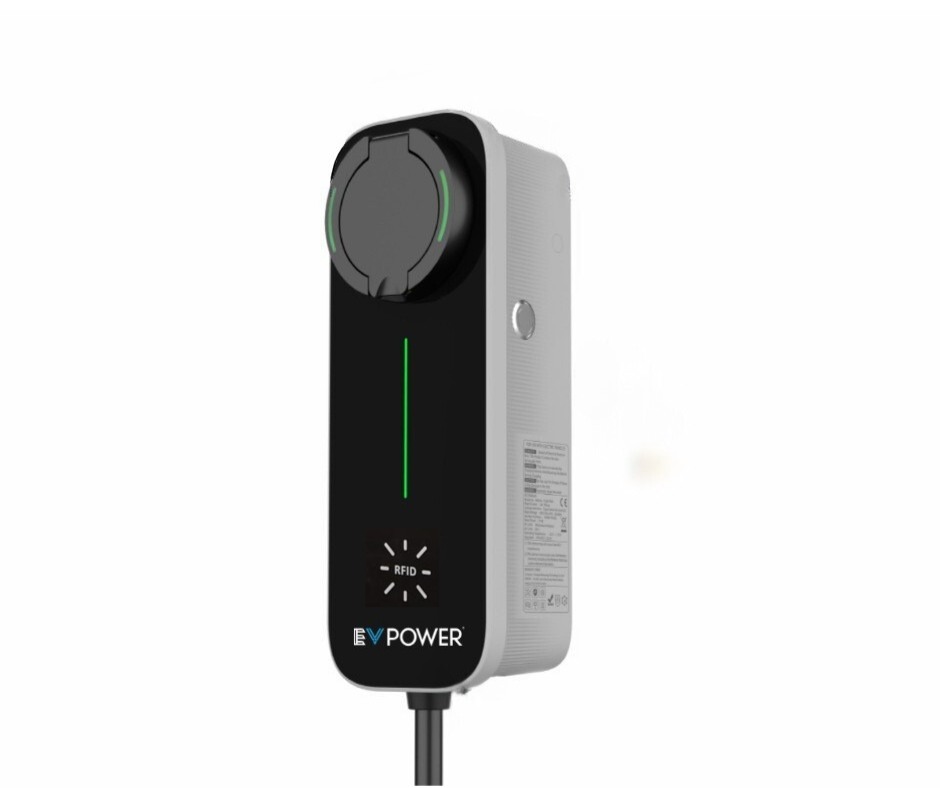

Slimline Smart 7kW 1P Wall Charger (32A) RFID

Sleek design. Solid performance. Built for NZ.

Don’t let the price tag fool you — the EV Power Slimline is a smart, reliable, compact charger with a weather-tough design. Click here for the 3-phase version.

• Up to 7.2kW of reliable power via universal Type 2 socket.
• Has 6ma DC detection built in as an alternative to RCD Type B, making it a very straightforward installation.
• Connect and control operation easily using the EVSE Master app (via Bluetooth).
• Schedule charging, adjust current, and monitor sessions on the go.

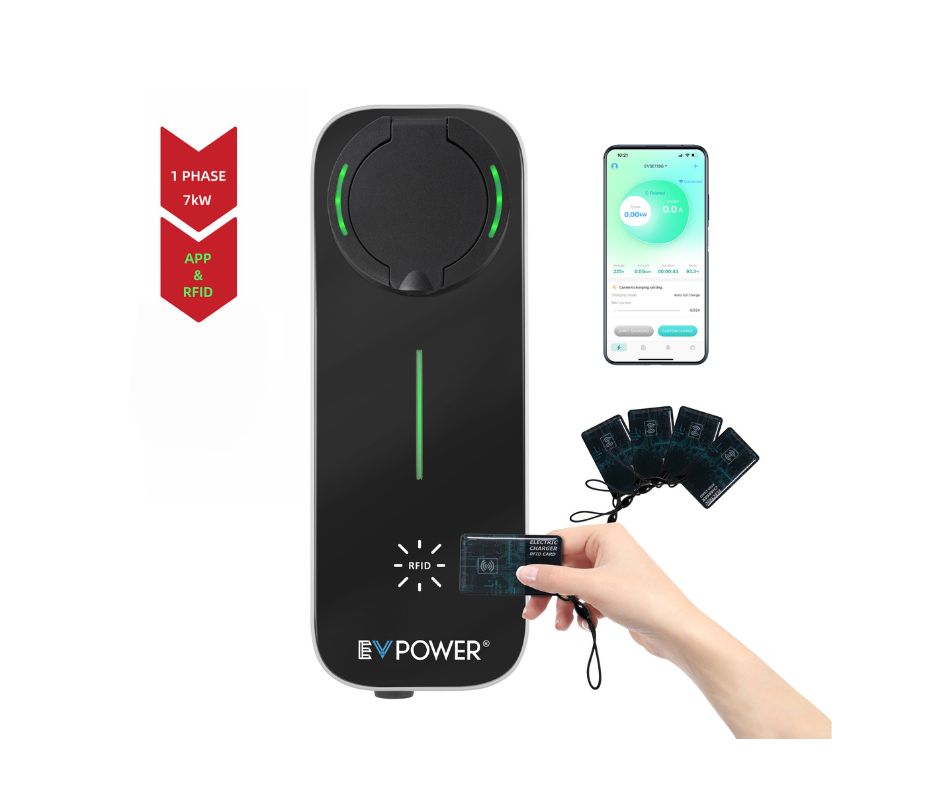

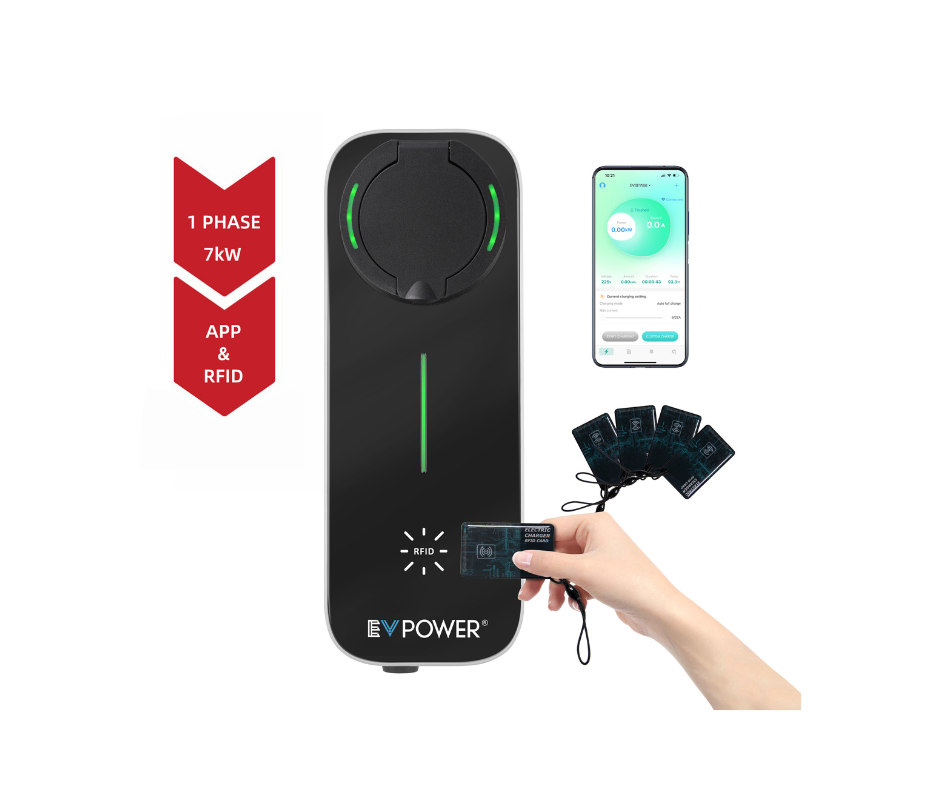

• RFID support built in for easy tap-and-go charging — perfect for shared use or staff parking.

Features:

• Sleek, compact design fits anywhere
• Fully compliant with AS/NZS 3000 & IEC 61851
• EVSE Master app. click here
• RFID swipe card security.
• Single phase.

Specifications

• Input: 230V (Single-Phase) or 400V (3-Phase), 50Hz
• Output Power: 3.6kW / 7.2kW (1P), 22kW (3P)
• Max Current: 32A
• Charging Mode: Mode 3 (IEC 61851-1)
• Start Options: App / RFID / Button / Auto
• Connectivity: Bluetooth
• Plug Type: Universal Type 2 socket
• Enclosure: IP66 rated, ABS + PC alloy — tough enough for all NZ weather
• Operating Temp: -25°C to +40°C
• Mounting: Wall or optional stand

Dimensions

• Dimensions: 32.5 cm (H) × 12 cm (W) × 10/8.7 cm (D)
• Weight: 2.5 kg

Support

• 3-Year NZ warranty with local support

IMPORTANT This product must be installed by a registered, qualified electrician. Please refer to our T&C’s. SDoC available contact us for a copy.

Connecting multiple leads (end to end) together in order to extend the reach is dangerous.

Download EVSE Master app from Google Play or Apple Store
