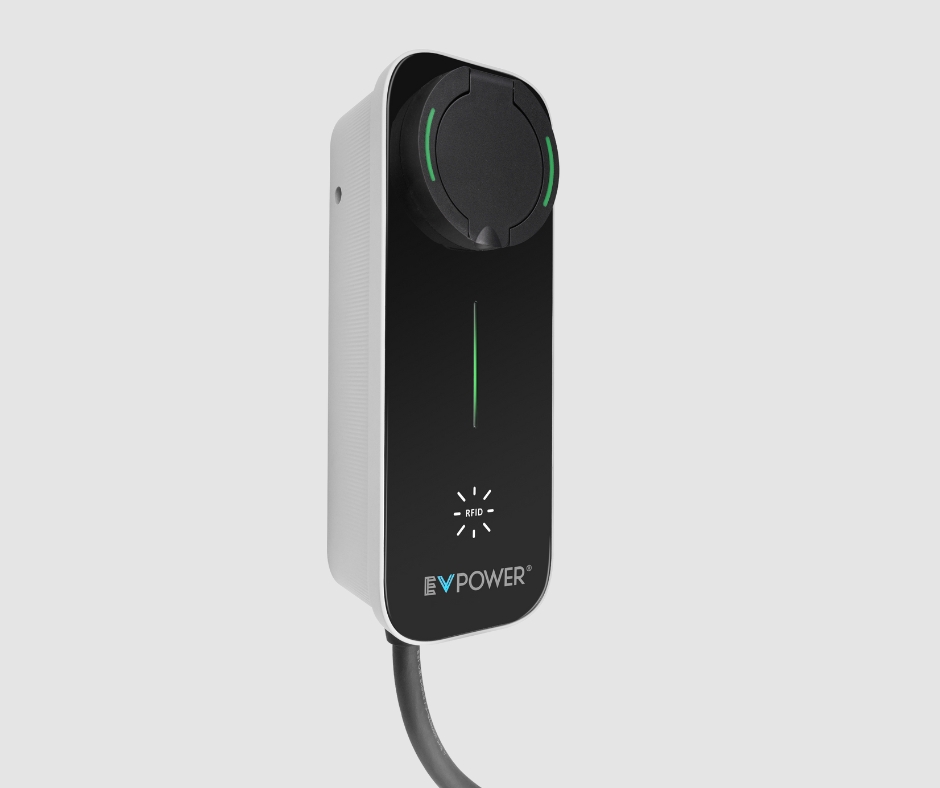

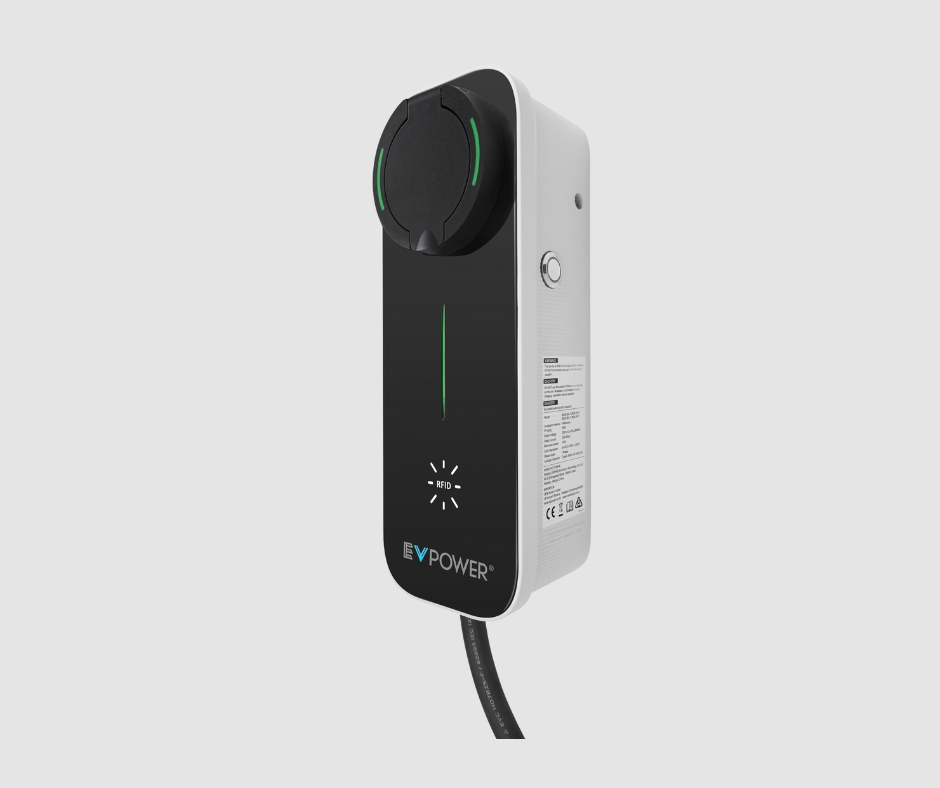

Slimline Smart 22kW 3P Wall Charger (32A) RFID

Modern look. Mighty performance. Made for NZ. It’s perfect for residential or light commercial installs, delivering reliable, fast charging up to 22kW via a Type 2 socket.

• A sleek, compact design.
• Perfect for Type 1 or Type 2 vehicles – BYO lead.

Features:

• Up to 22kW Output via 3-phase power (32A model available).
• Smart App Control with EVSE Master App (Bluetooth connected).
• Multiple Start Options: App / RFID / Button / Auto.
• Wall or Stand Mount – flexible install options.
• Universal Type 2 Socket – compatible with all Type 2 EVs.
• Plug & Play Option Available.

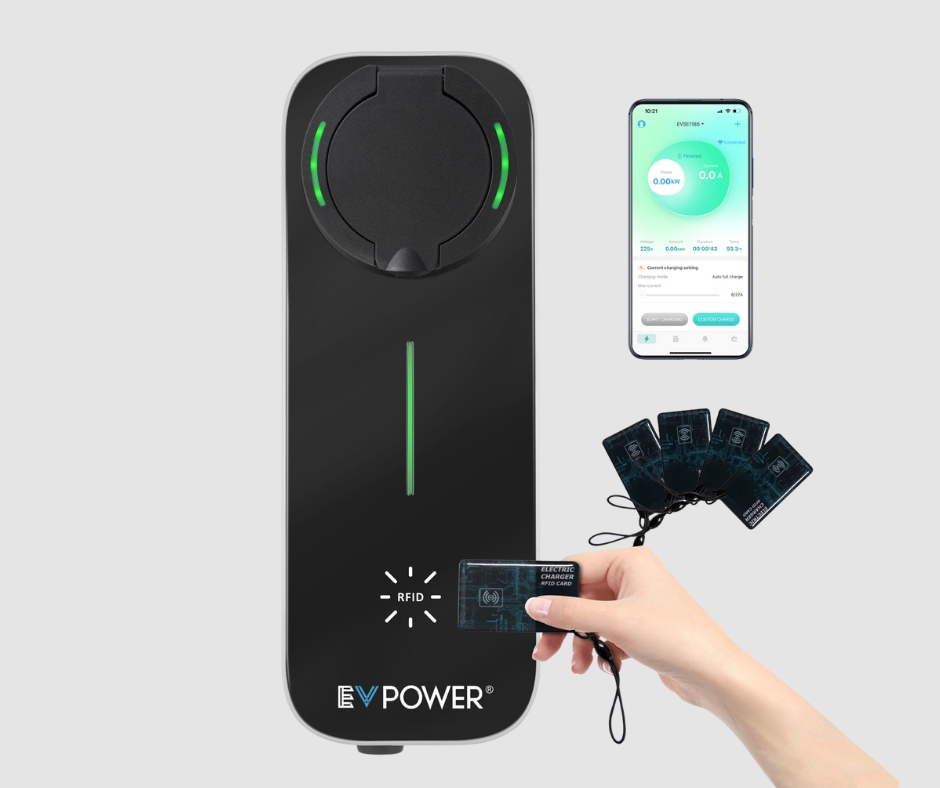

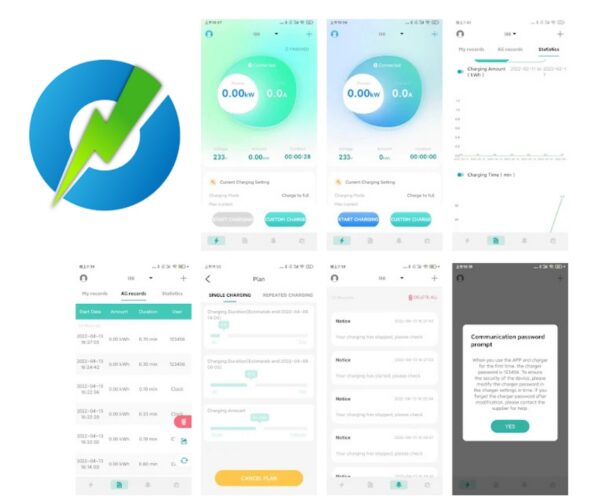

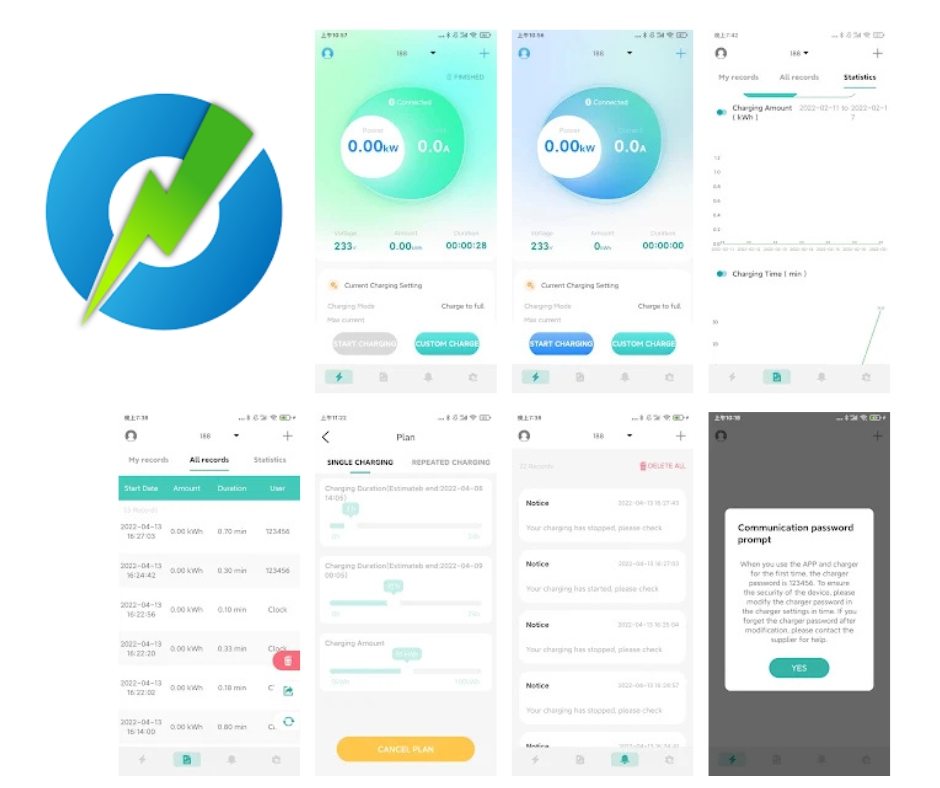

Connect easily through the EVSE Master app via Bluetooth to monitor charging, set schedules, adjust current, and more — all from your phone.

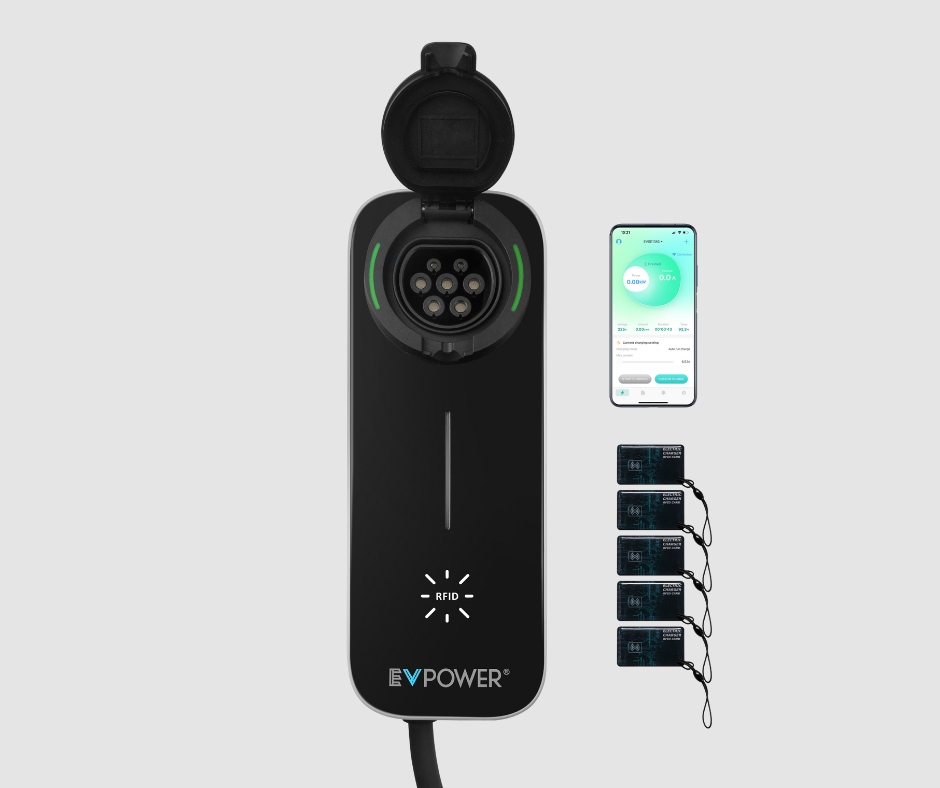

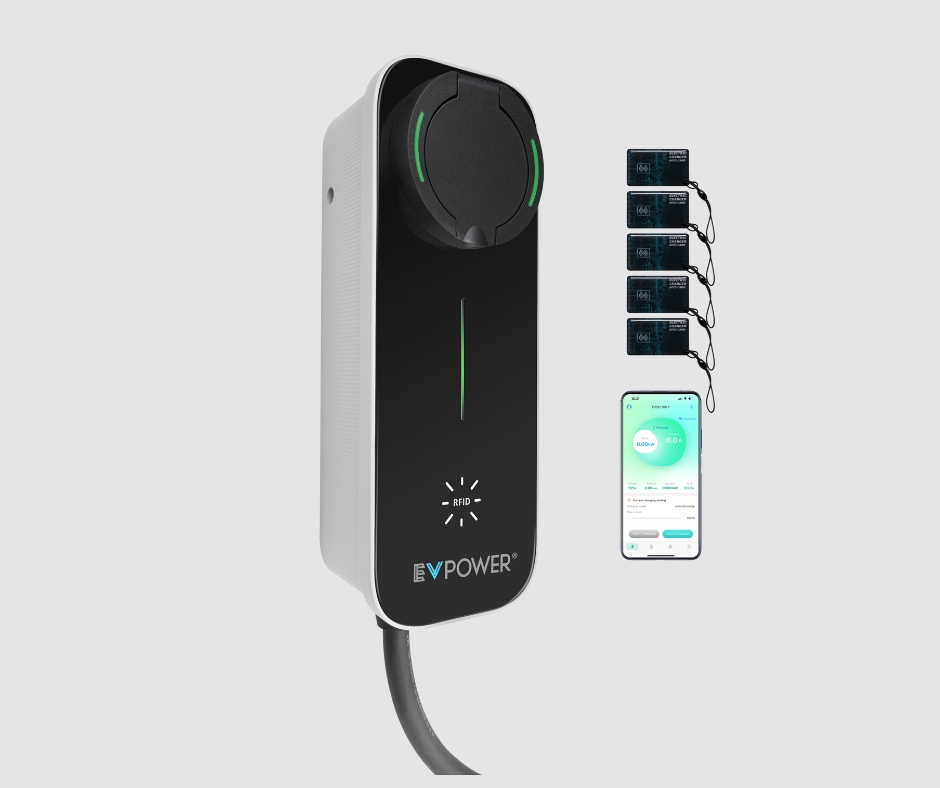

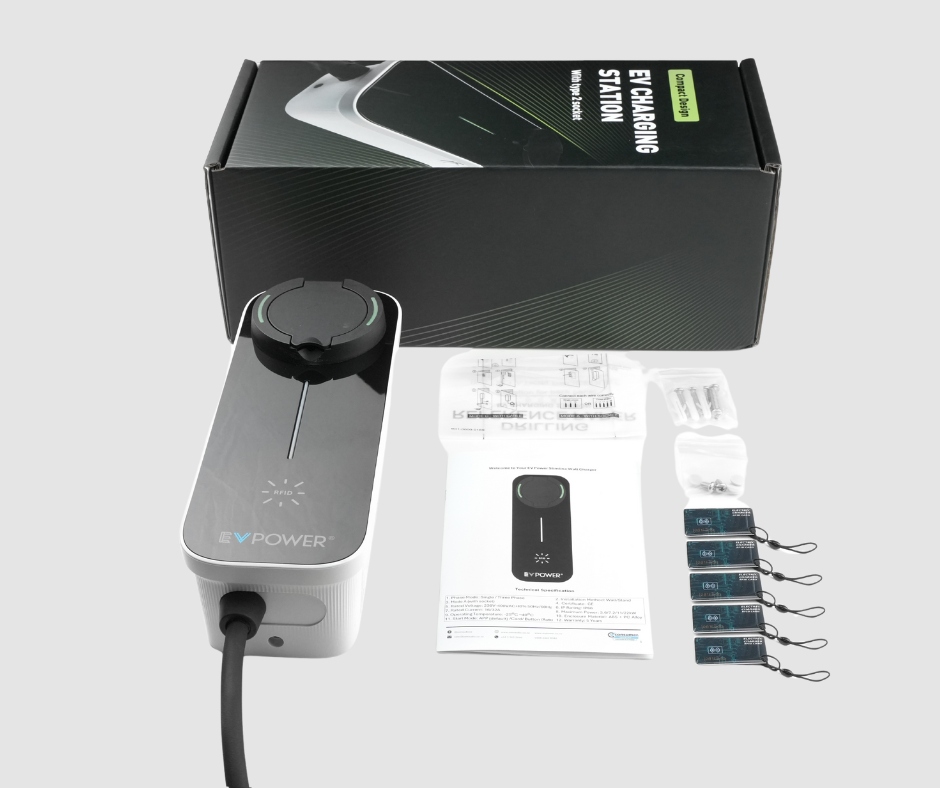

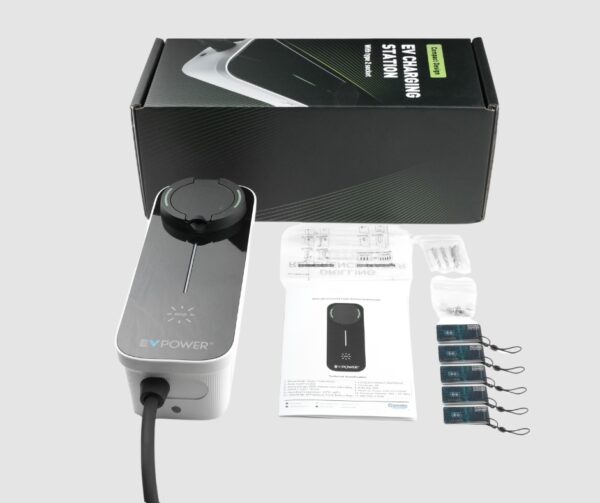

Plus, built-in RFID card support makes it a breeze to manage shared use in staff car parks or shared driveways.

Specifications:

• Input: 400V (3 Phase), 50Hz.
• Charging Mode: Mode 3.
• Enclosure: ABS + PC alloy (IP66 rated).
• Operating Temp: -25°C to +40°C.
• Size: 32.5cm H × 12cm W × 10/8.7cm D
• Weight: 2.5kg

Safety:

• Built-In Safety: Type A RCD + 6mA DC protection.
• IP66 Rated: Built for harsh NZ weather.
• Compliant with AS/NZS 3000 & IEC 61851 standards.
• Connecting multiple leads (end to end) together in order to extend the reach is dangerous.

Warranty

• 3-Year NZ Warranty – must be installed by a registered, qualified electrician. Please refer to our T&C’s. SDoC available contact us for a copy.
