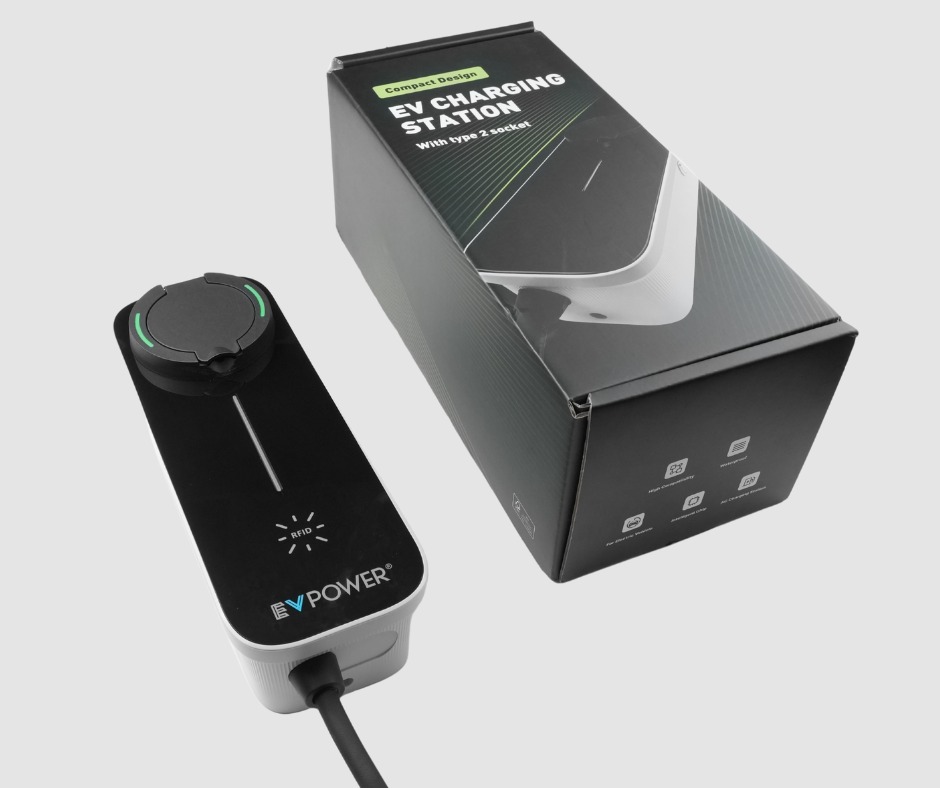

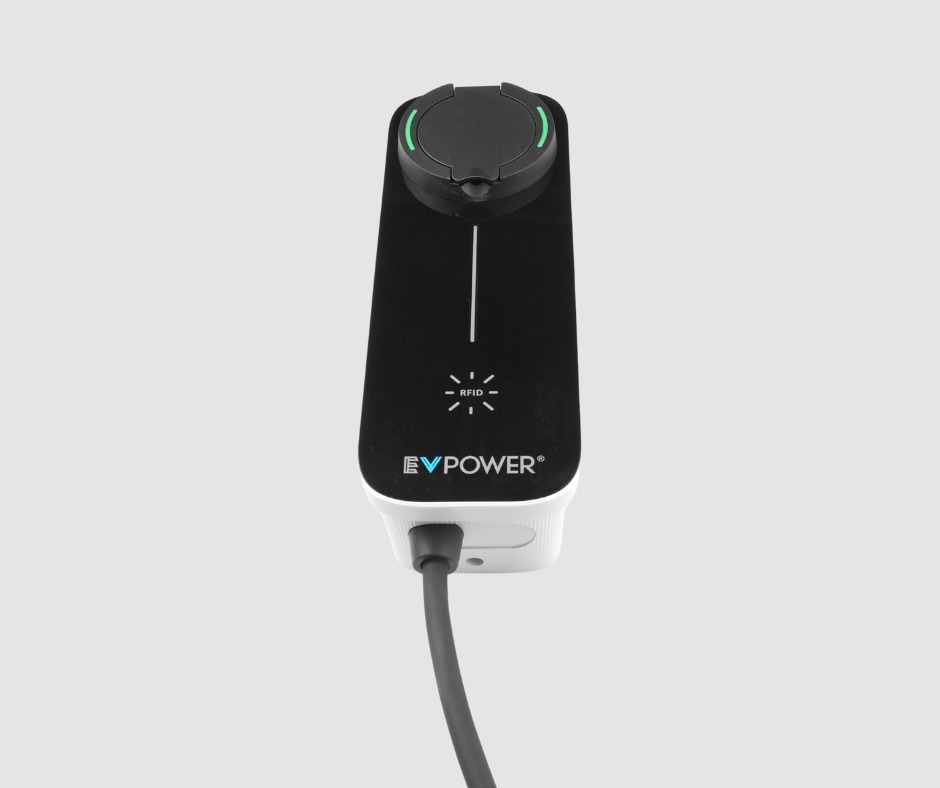

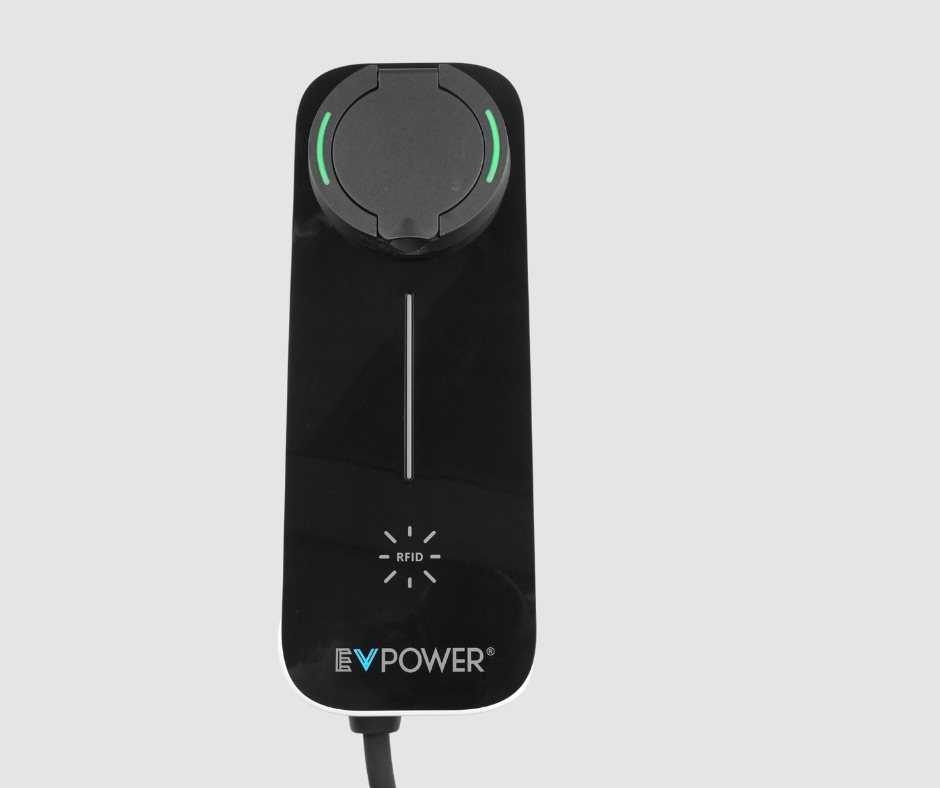

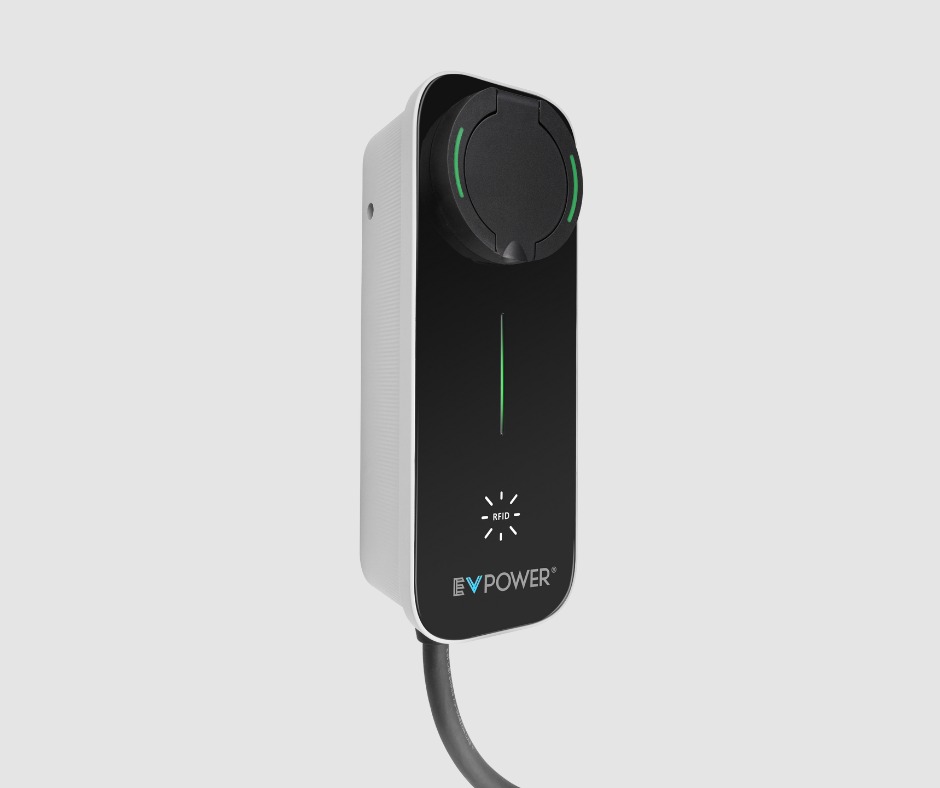

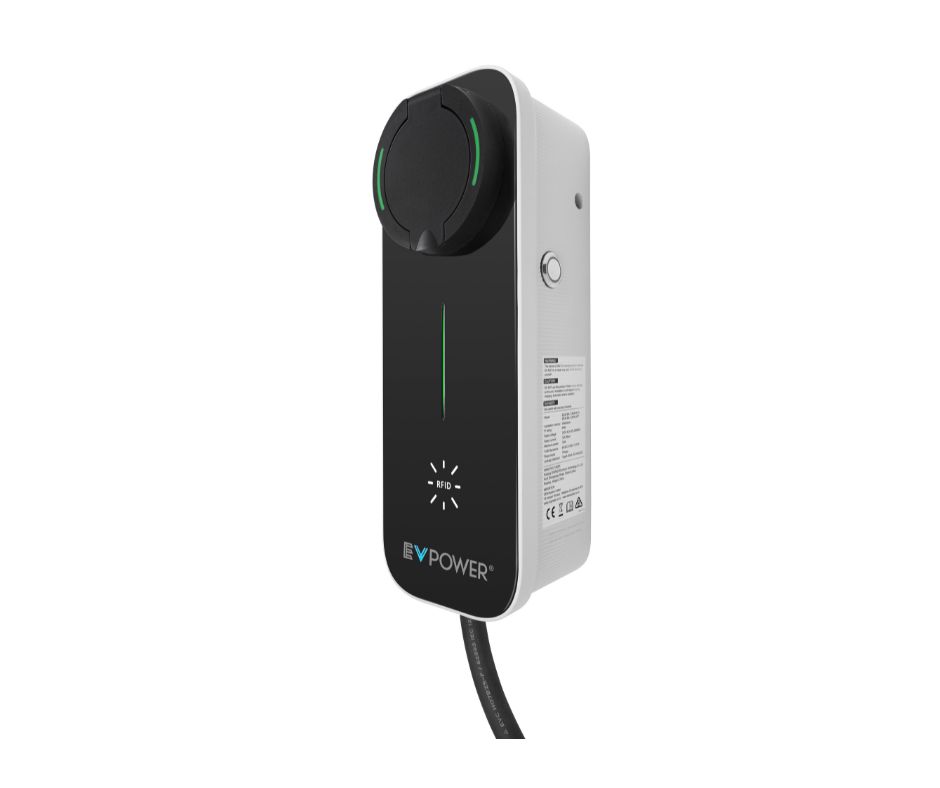

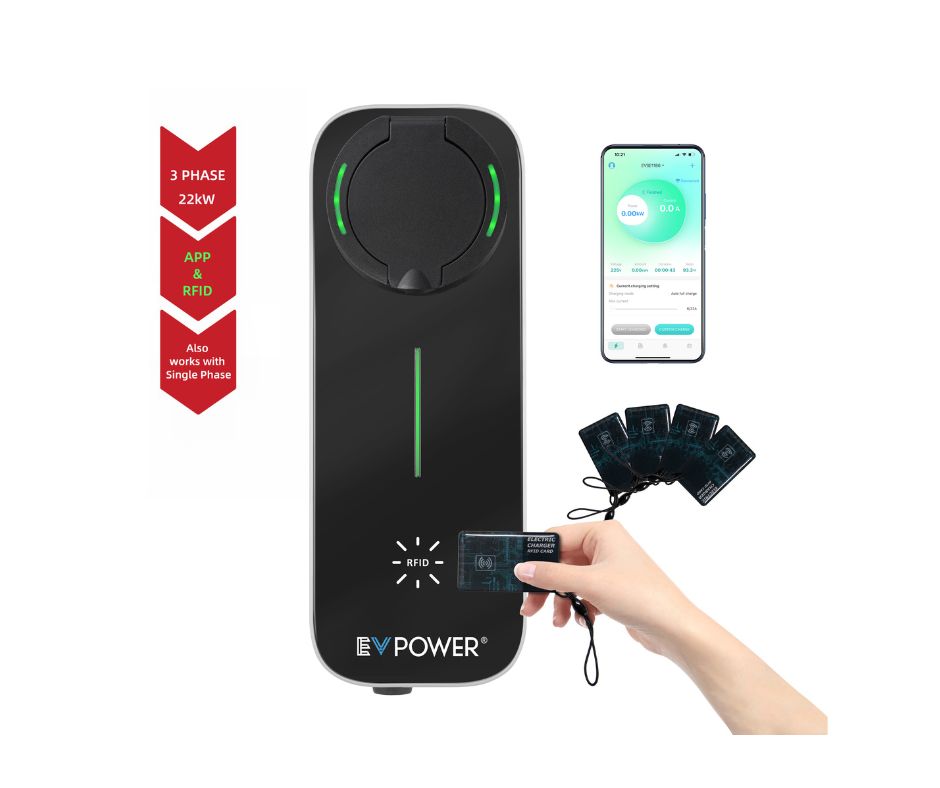

SlimLine Smart 22kW 3P Wall Charger (32A) RFID

Modern look. Mighty performance. Made for NZ.

Whether it’s for your home, business, or staff EV fleet, the Slimline 22kW Wall Charger delivers high performance with a modern, minimalist look.

Don’t let the entry-level price tag fool you — the EV Power Slimline is a seriously smart charger, built tough and styled for modern New Zealand homes and businesses.

Connect easily through the EVSE Master app via Bluetooth to monitor charging, set schedules, adjust current, and more — all from your phone.

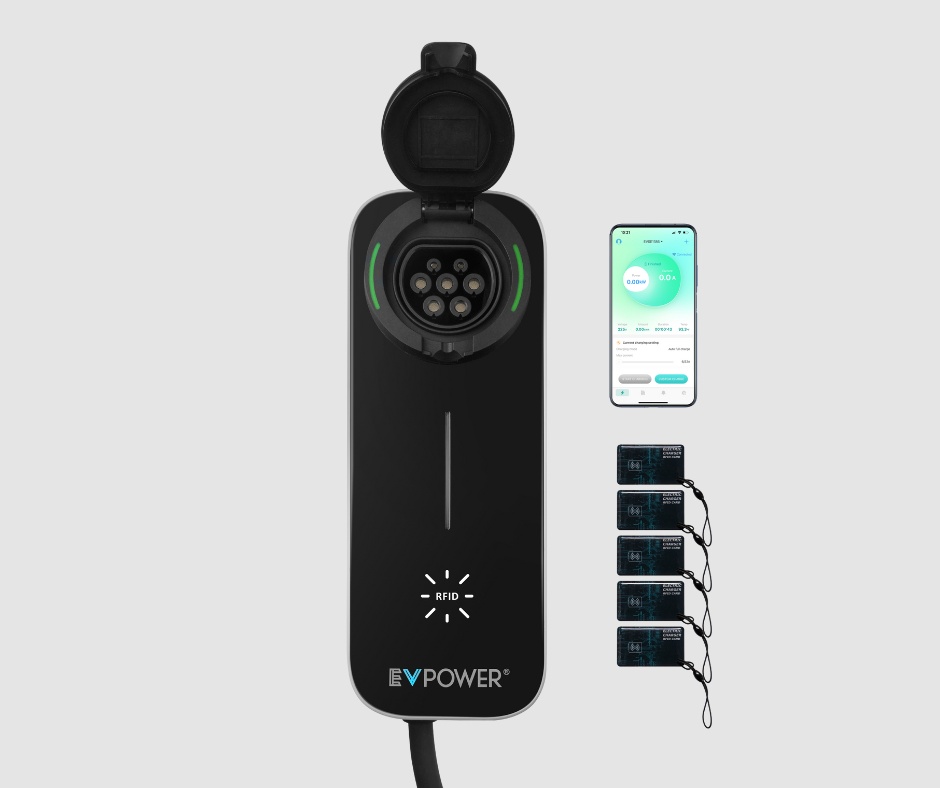

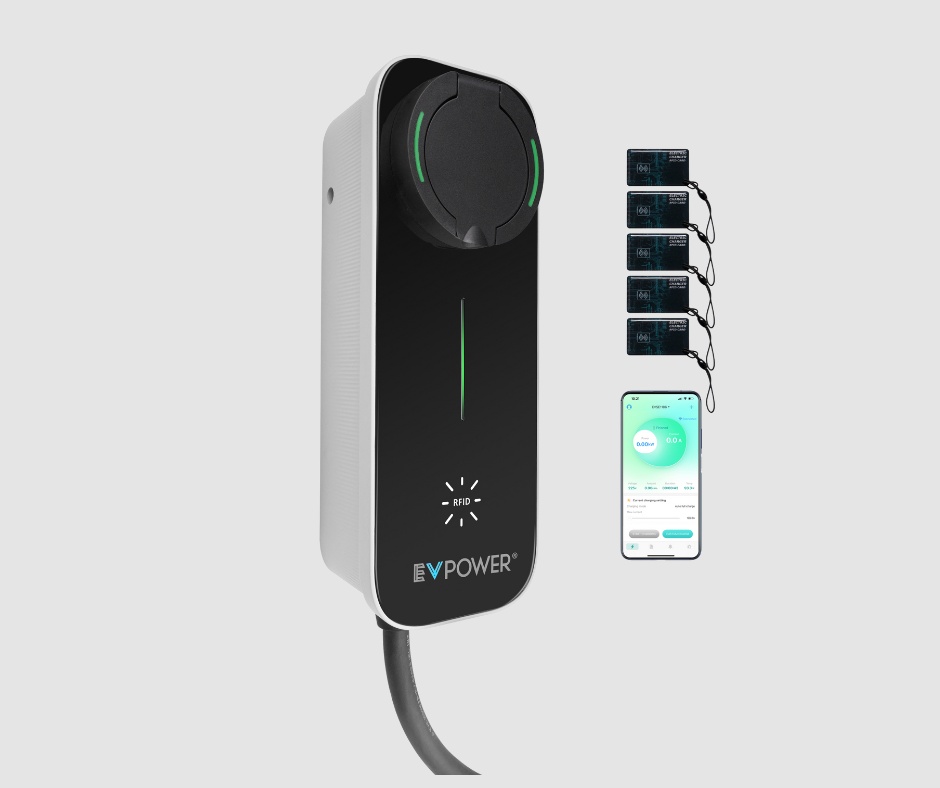

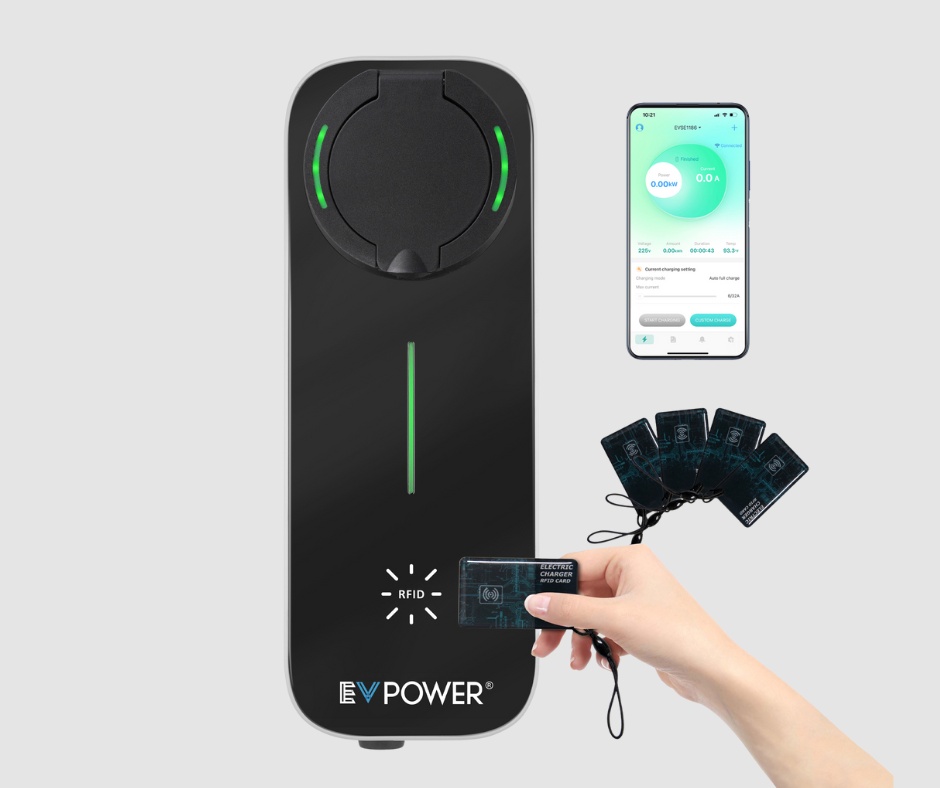

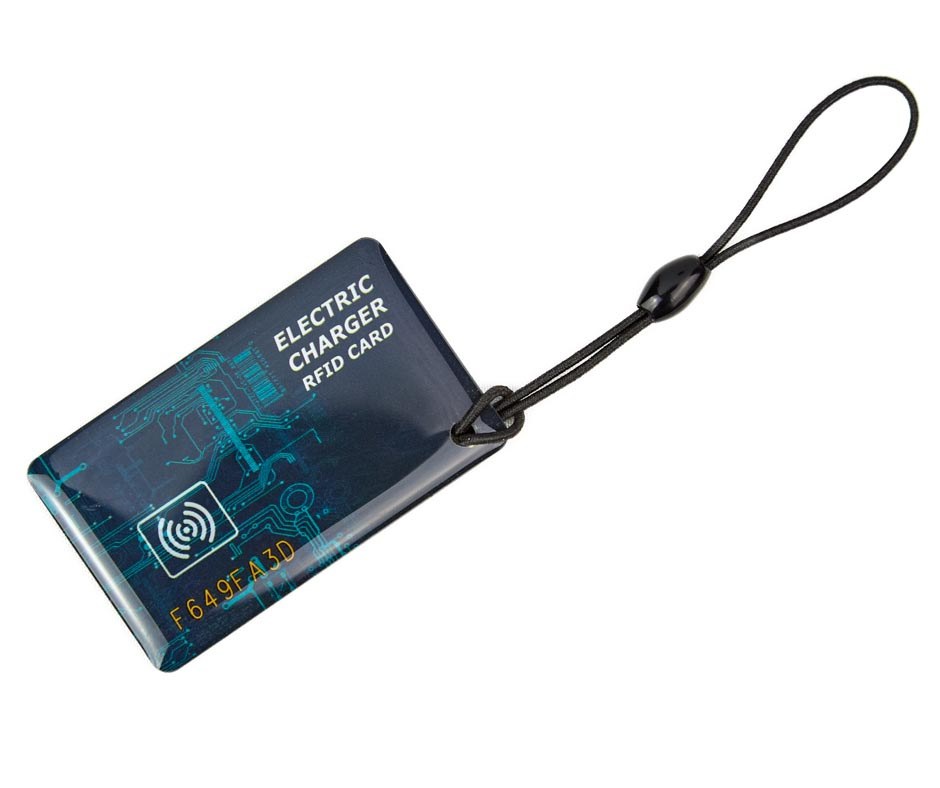

Plus, built-in RFID card support makes it a breeze to manage shared use in staff car parks or shared driveways.

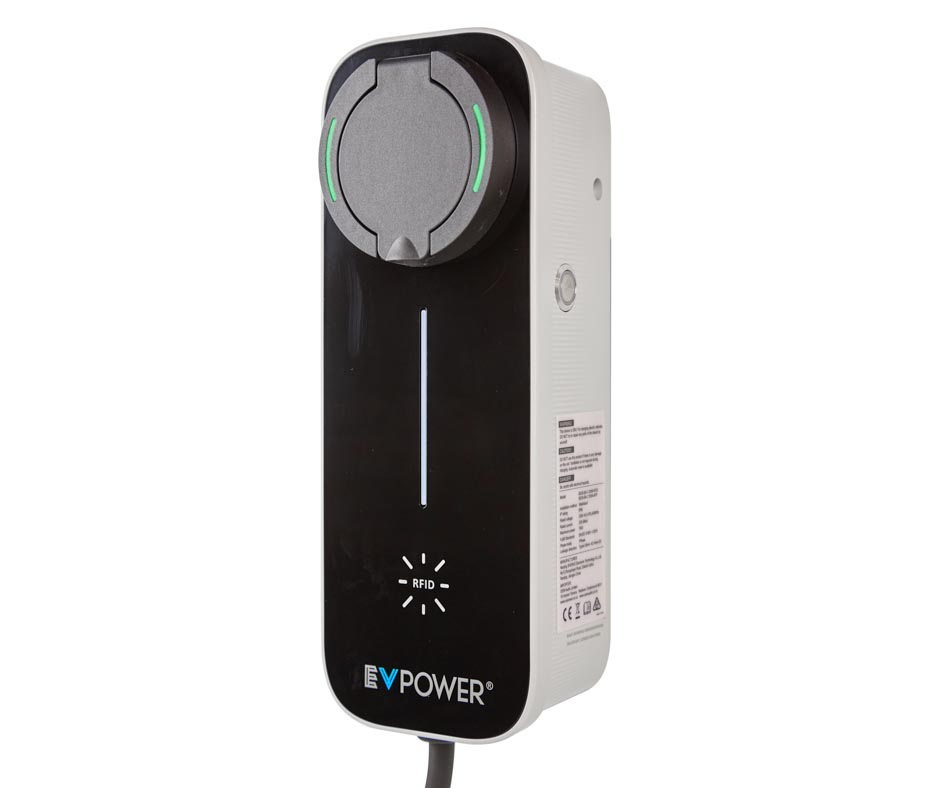

The EV Power Slimline Wall Charger packs powerful features into a sleek, compact design. It’s perfect for residential or light commercial installs, delivering reliable, fast charging up to 22kW via a Type 2 socket.

Features

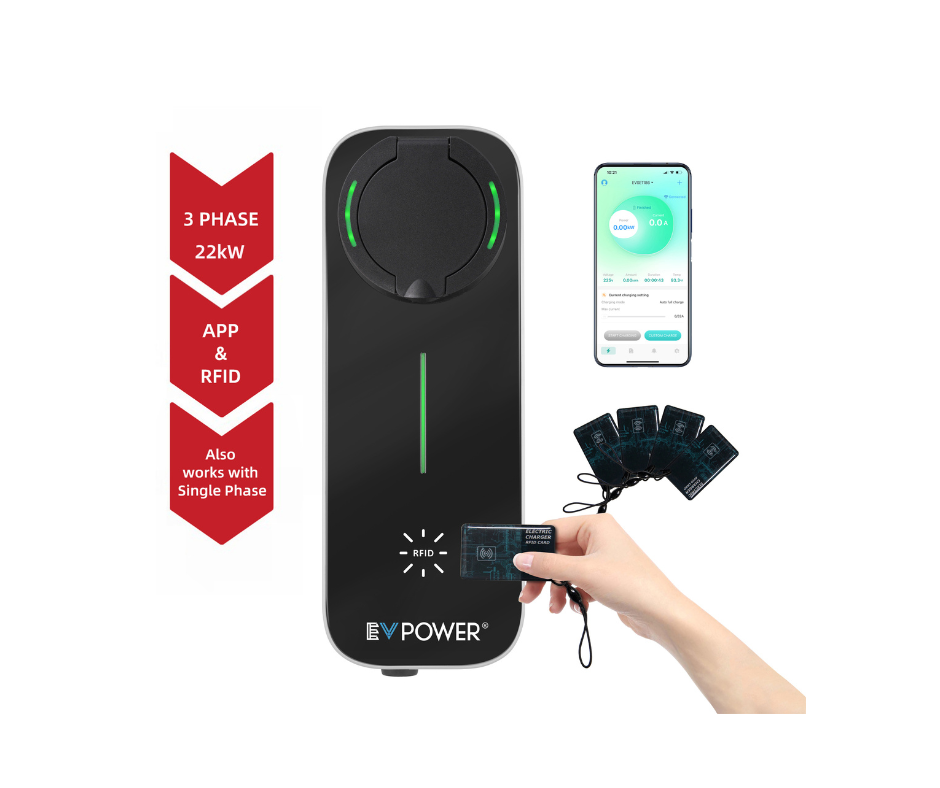

• Up to 22kW Output via 3-phase power (32A model available).
• Smart App Control with EVSE Master App (Bluetooth connected).
• Multiple Start Options: App / RFID / Button / Auto.

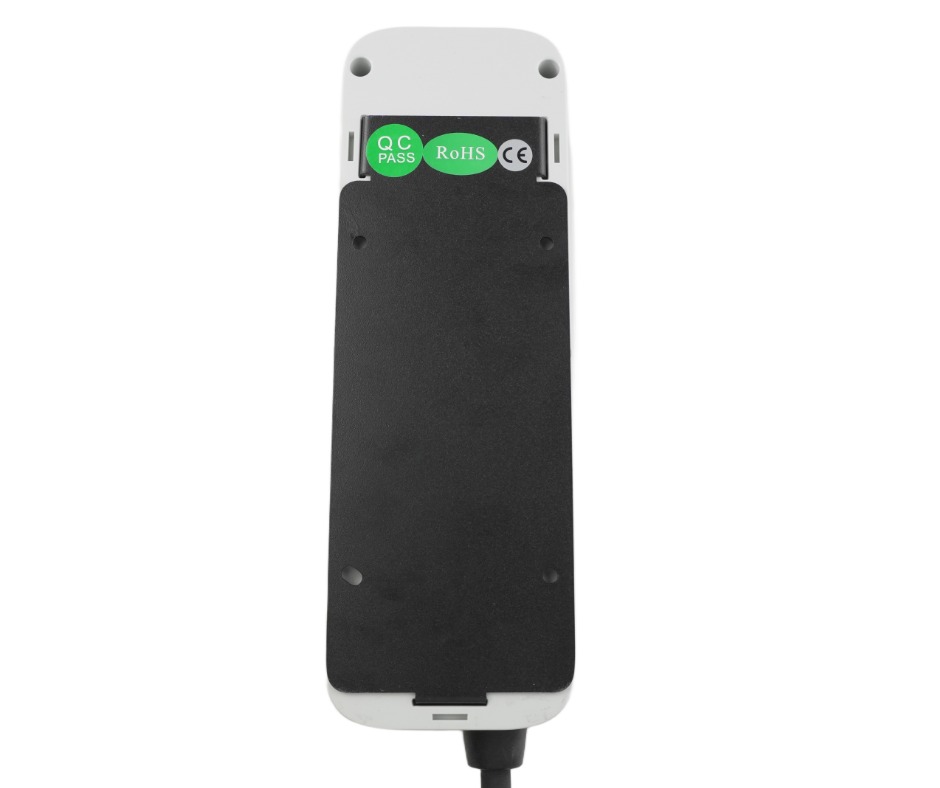

• Wall or Stand Mount – flexible install options.

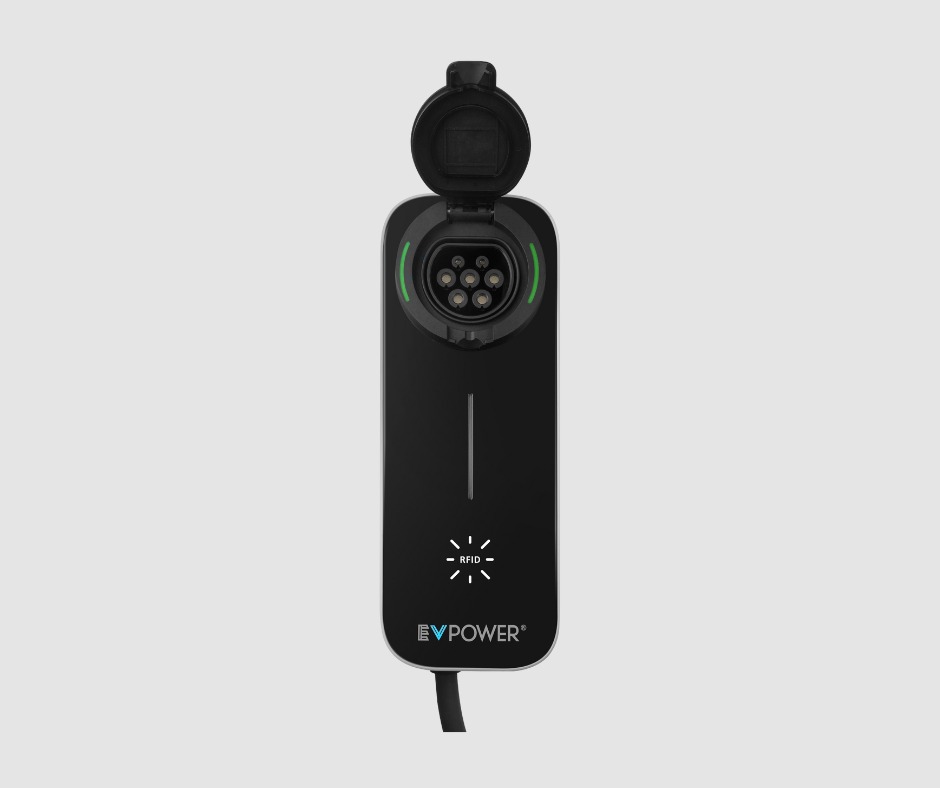

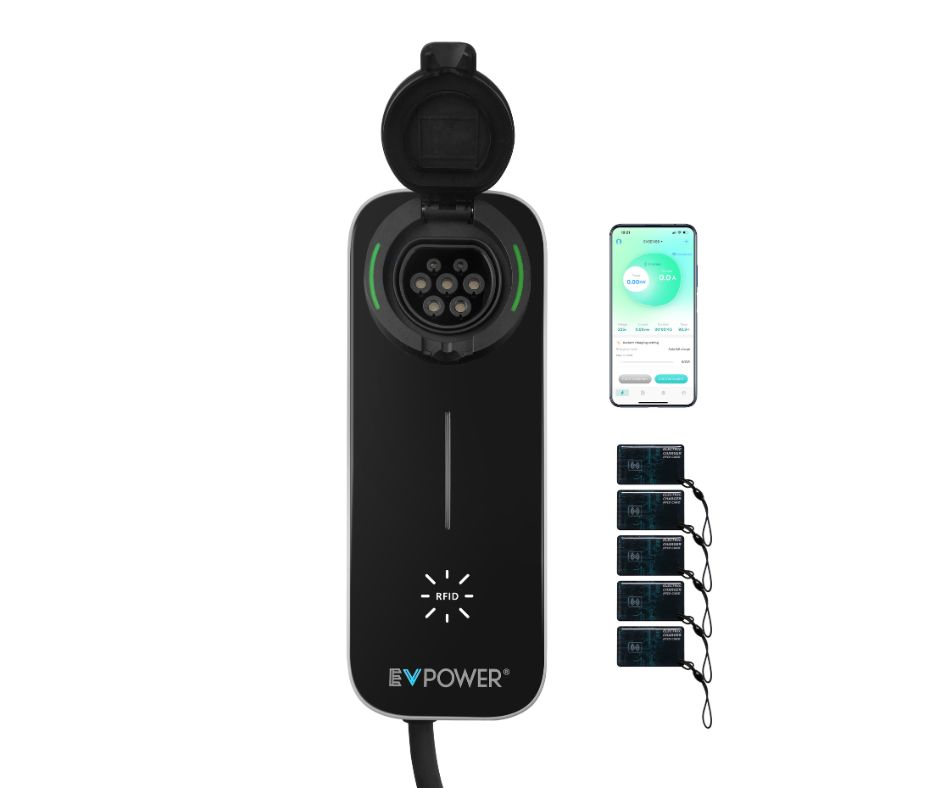

• Universal Type 2 Socket – compatible with all Type 2 EVs.
• Plug & Play Option Available.

Specifications

• Input: 400V (3 Phase), 50Hz.
• Charging Mode: Mode 3.
• Enclosure: ABS + PC alloy (IP66 rated).
• Operating Temp: -25°C to +40°C.

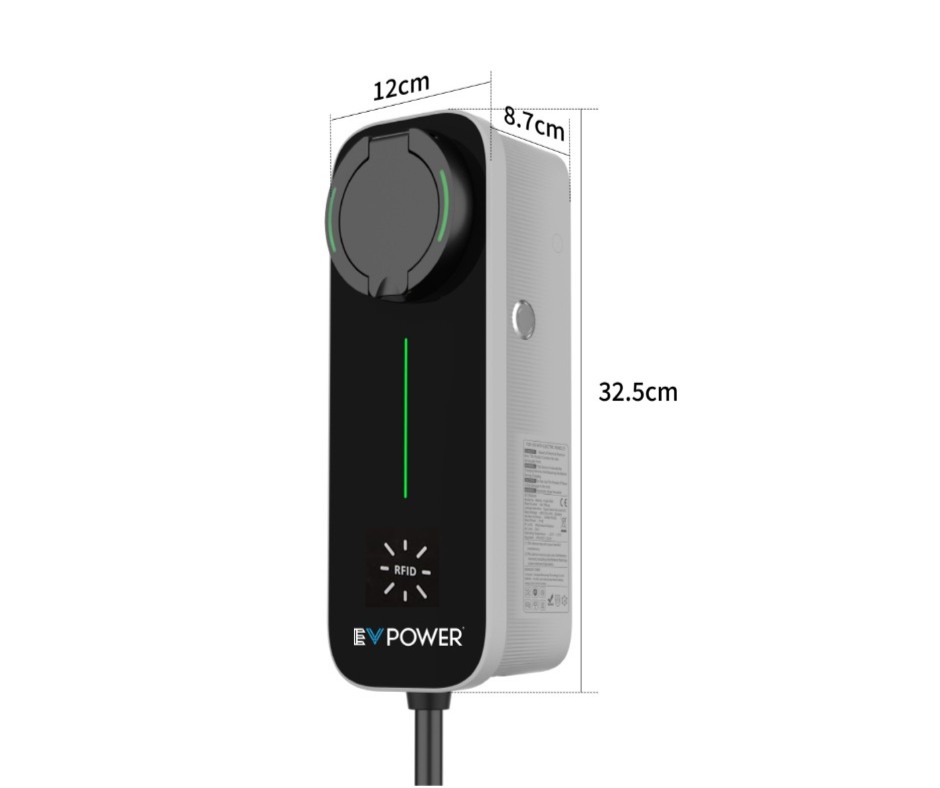

Dimensions

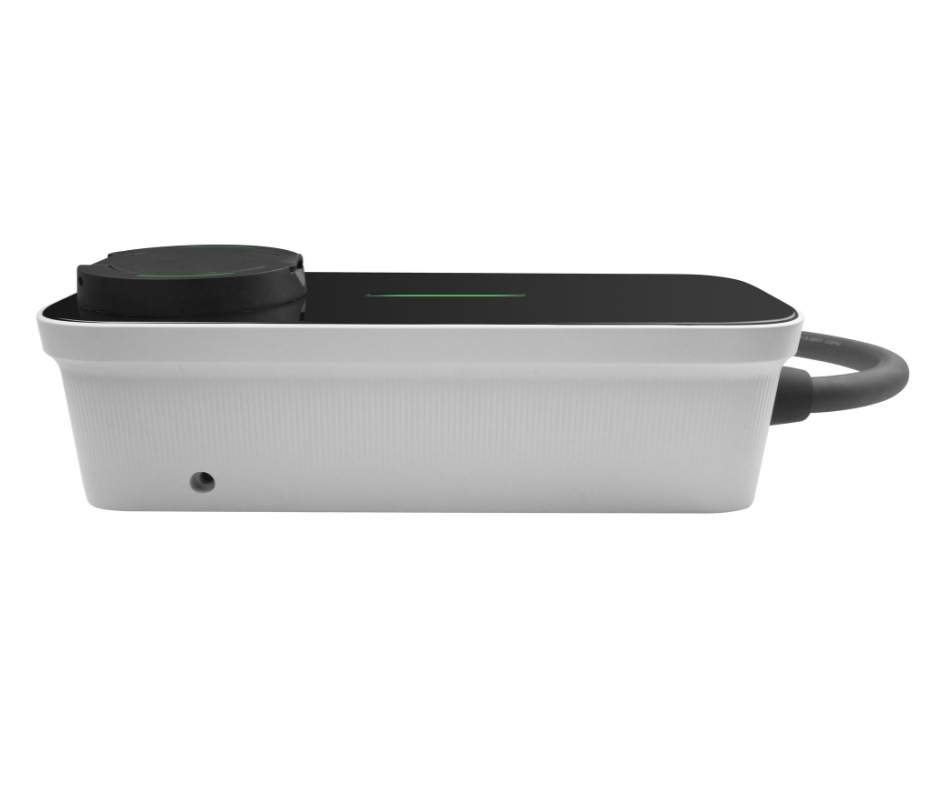

• Size: 32.5cm H × 12cm W × 10/8.7cm D
• Weight: 2.5kg

Safety

• Built-In Safety: Type A RCD + 6mA DC protection.
• IP66 Rated: Built for harsh NZ weather.
• Compliant with AS/NZS 3000 & IEC 61851 standards.

Support

• 3-Year NZ Warranty and full local support

IMPORTANT: This product must be installed by a registered, qualified electrician. Please refer to our T&C’s. SDoC available contact us for a copy.

Connecting multiple leads (end to end) together in order to extend the reach is dangerous.
