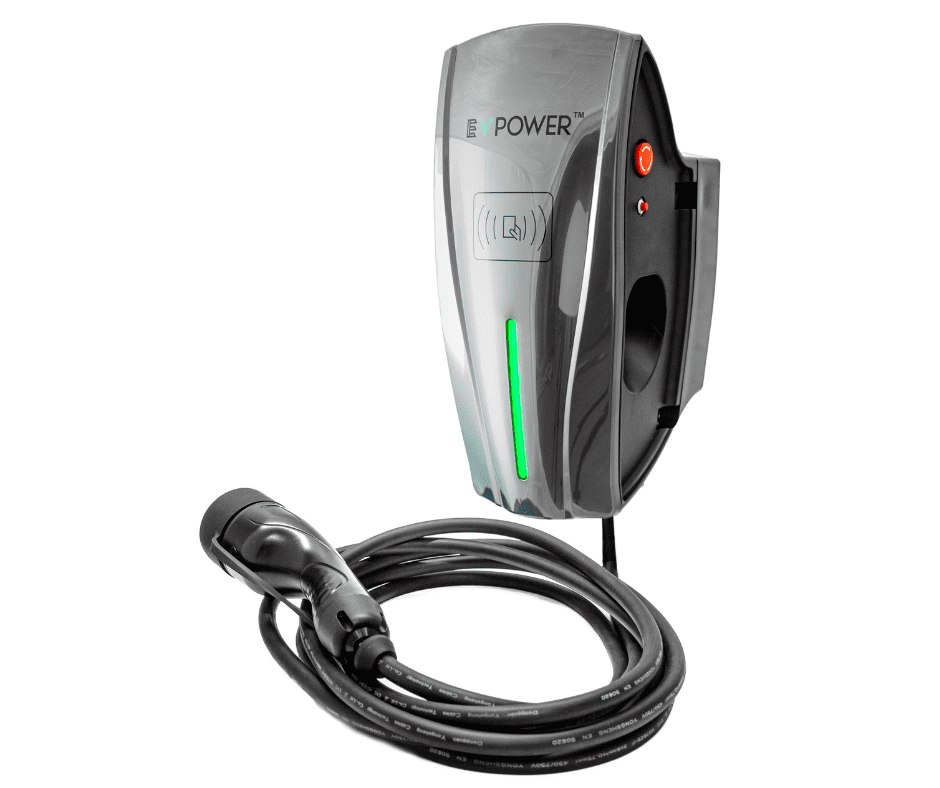

BCP Smart Tethered Type 2 (6m) DLB Wall Charger 32A 1P (Load Bal)

Convenient Home Charging with the 7kW BCP AC Wall Charger
Perfect for single-phase power, this smart charger features Dynamic Load Balancing (DLB) and a 6m tethered Type 2 cable, compatible with all Type 2 EVs/PHEVs. Just park and plug-in.

Key Features:

• Adjustable output: 6A to 32A

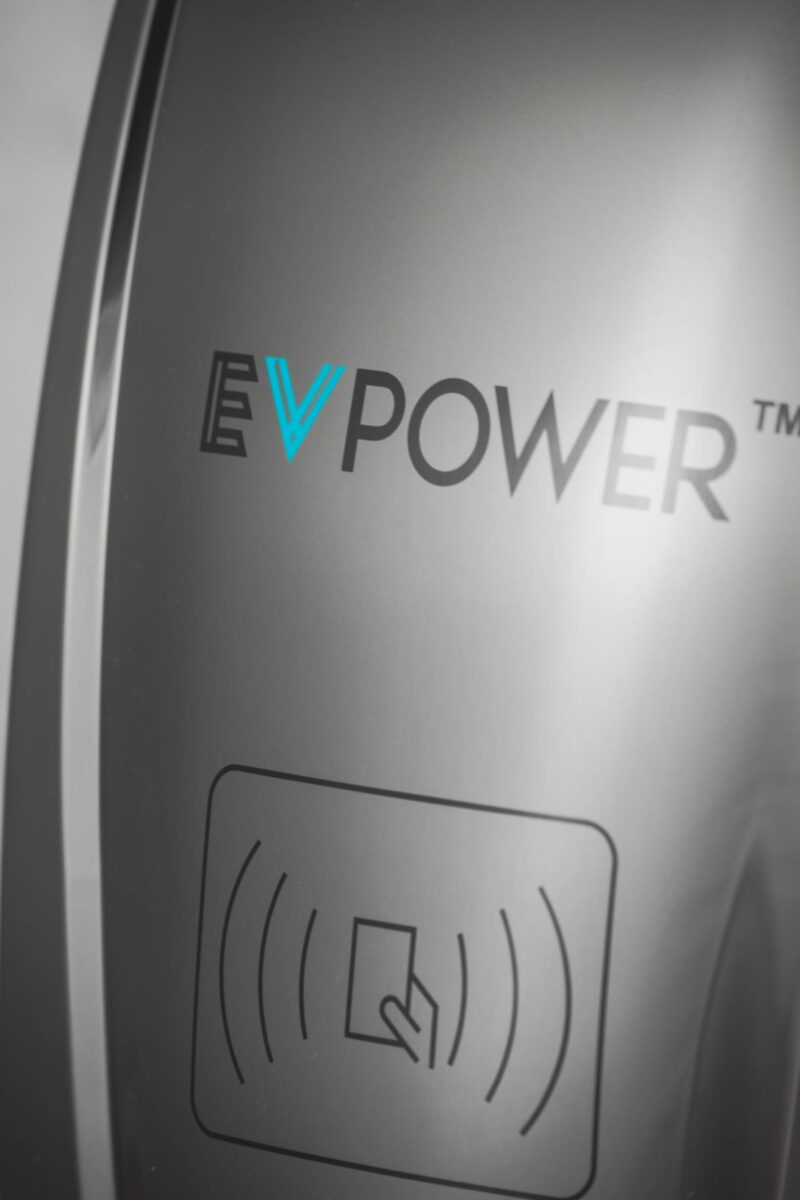

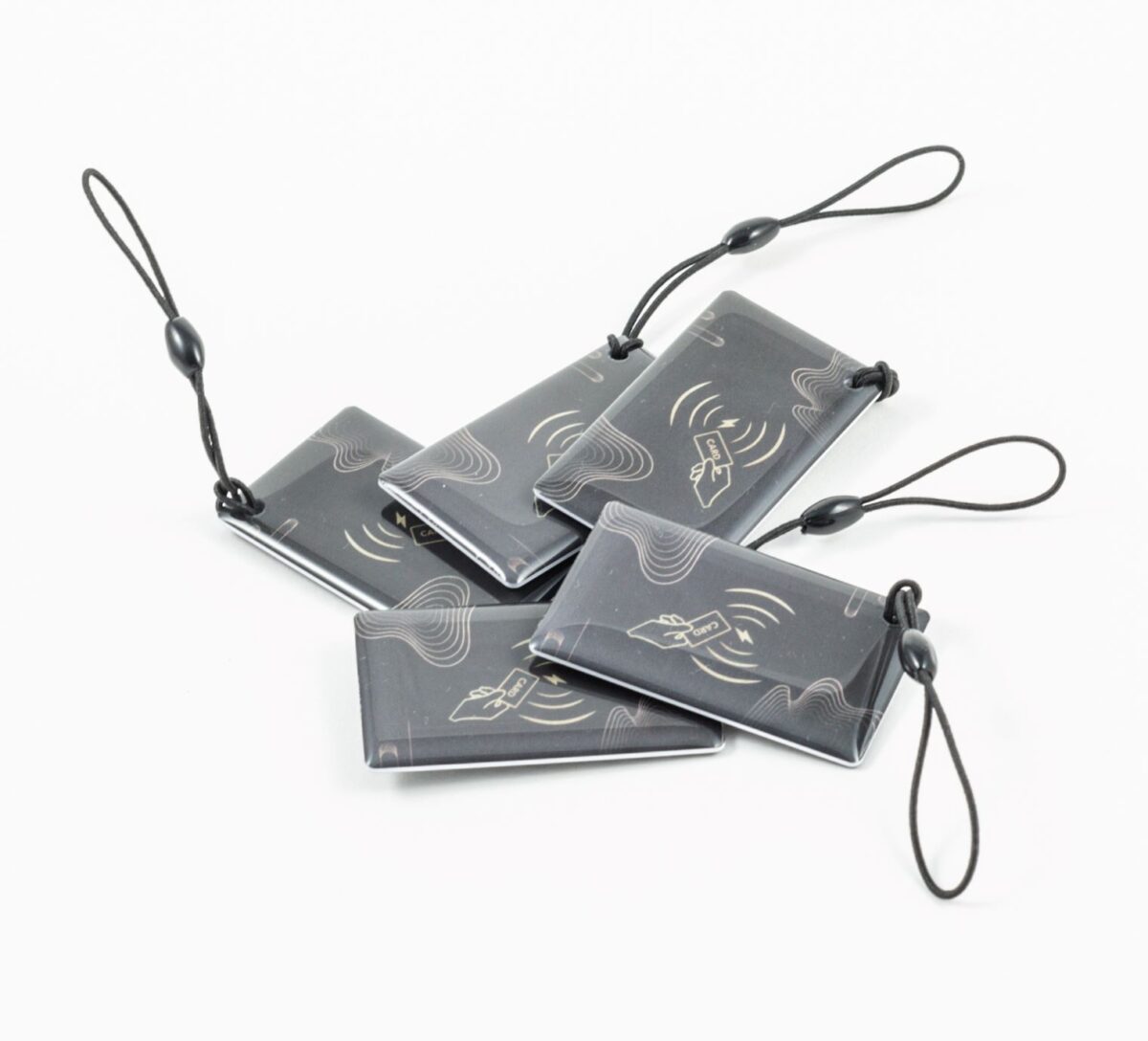

• RFID swipe card for secure, authorized access

• Built-in 6mA DC detection – no Type B RCD needed

• Wall or pile mount installation (pile purchased seperately)

• Works seamlessly with solar via the BCP Solar package. Ensure that the correct Solar DLB box is purchased or the Solar set-up will not work.

Smart Load Management:

Set your max household current in the Z-Box app and the charger auto-adjusts to avoid overload. For example, if your home uses 45A of a 63A supply, charging drops to 18A automatically.

Note: Electrician required to install isolation switch and RCBO 32A 1p slimline at your switchboard.

Charge smarter, safer, and with confidence!

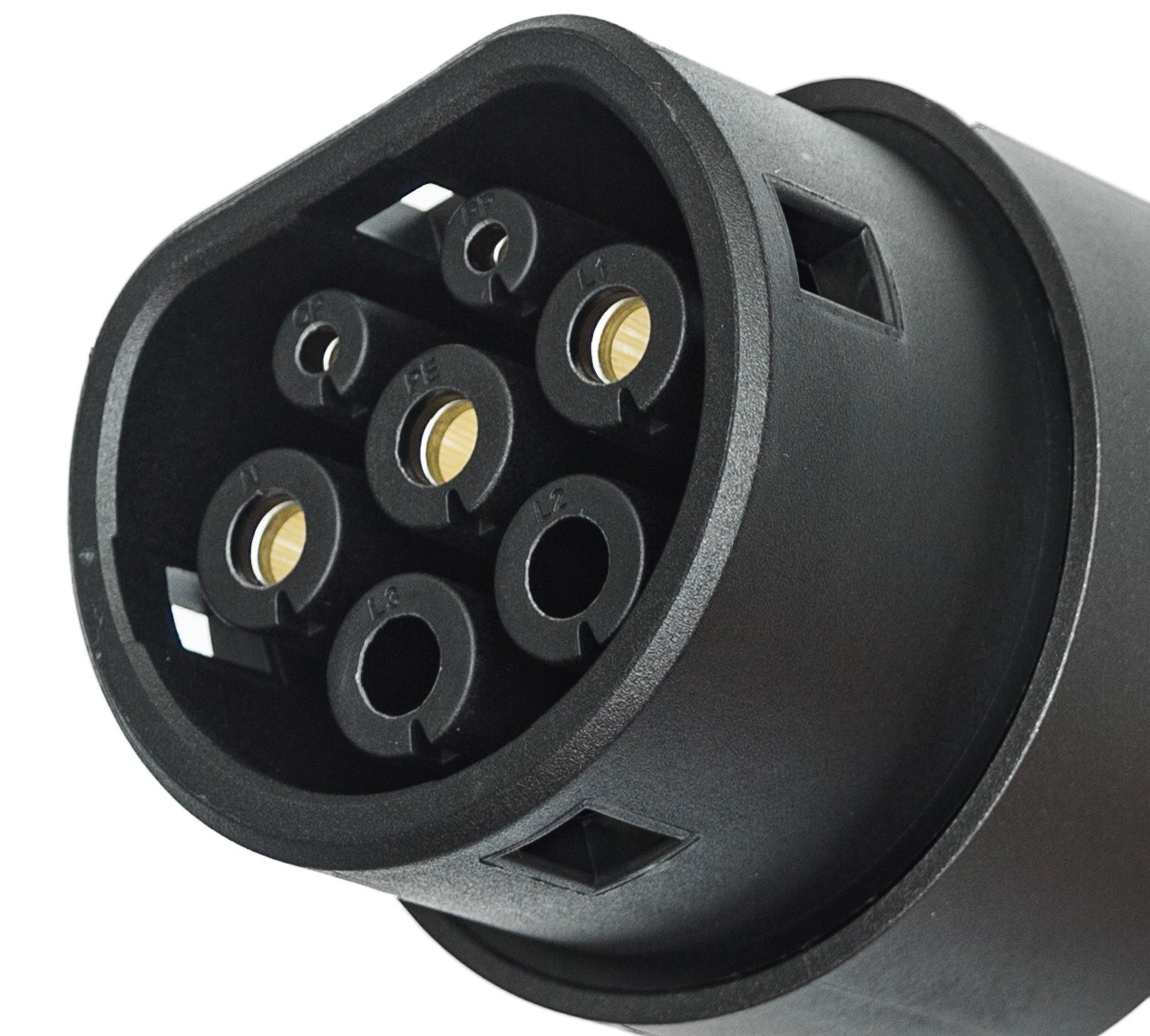

If you don’t know what Type your EV or PHEV is please call us but the charging port should be the same as the picture of a Type 2 charging port below.

DIMENSIONS:

7kg

380mm H x 169mm W x 201/159 mm D

SPECIFICATIONS:

• Single phase
• Built-in over-voltage and under-voltage protection(U>264V or U<187V)
• Over- current protection, over temperature protection, imperfect earth detection.
• CP abnormal signal protection and type A + DC 6mA for Europe standard.
• Operating temperature range: -25 ℃ ~ +55 ℃.
• IP65 (socket IP55) protection rate – provide shelter recommended.
• Operating humidity range 0-95% for indoor and outdoor.
• Temperature sensor built-in for fire protection.
• Leakage test function (to ensure the normal operation of leakage protection).
• Automatic reset after troubleshooting. That means when a charger stops working when an anomaly is detected, the charger will periodically self- check whether the anomaly is eliminated. The charger will start to work automatically after ensure the anomaly has been eliminated.
• The ramp-down stop current charging mode protects the EV batteries.
• Rated charging current can be set according to different home load conditions.
• Lightning protection to ensure personal safety.
• Standard: EN IEC 61851-1:2019 IEC 61851-1:2017
• Certificate: CE/CB/UKCA/SAA
• 3 year warranty

*** Connecting multiple leads (end to end) together in order to extend the reach is dangerous.

Always ask a qualified electrician to check the wiring of your home before charging any EV/PHEV using your domestic circuits. If the installation of the EV Power Wall Charger is not correct then some features of the charger or app may not work properly. There should be no components left in the box as all parts are required to ensure safety and proper function!

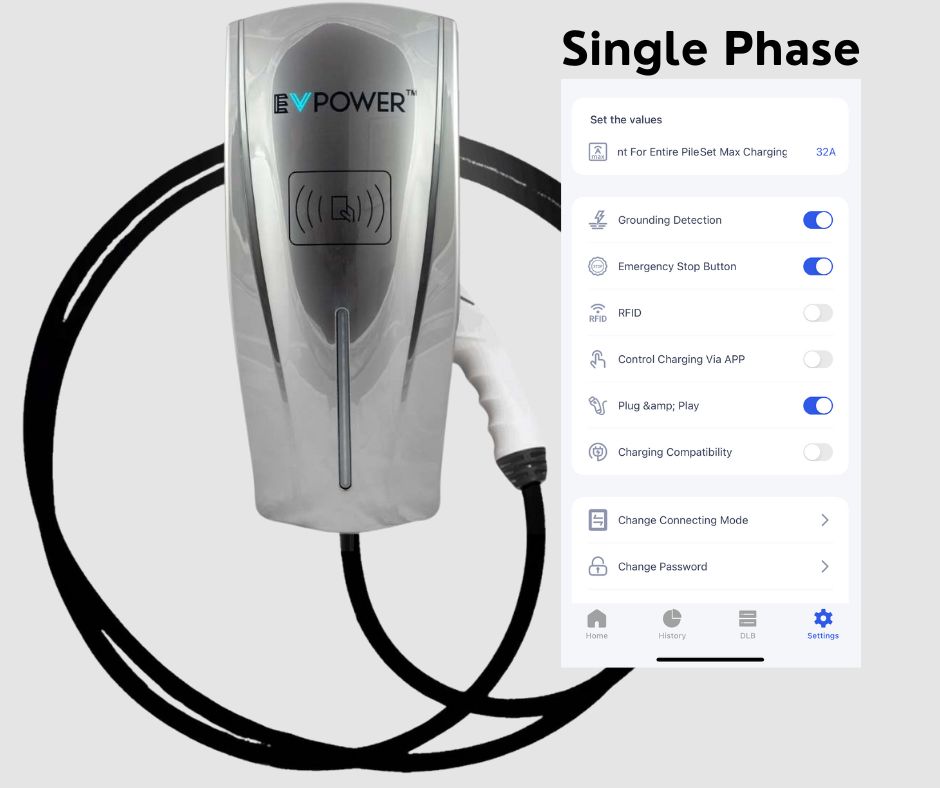

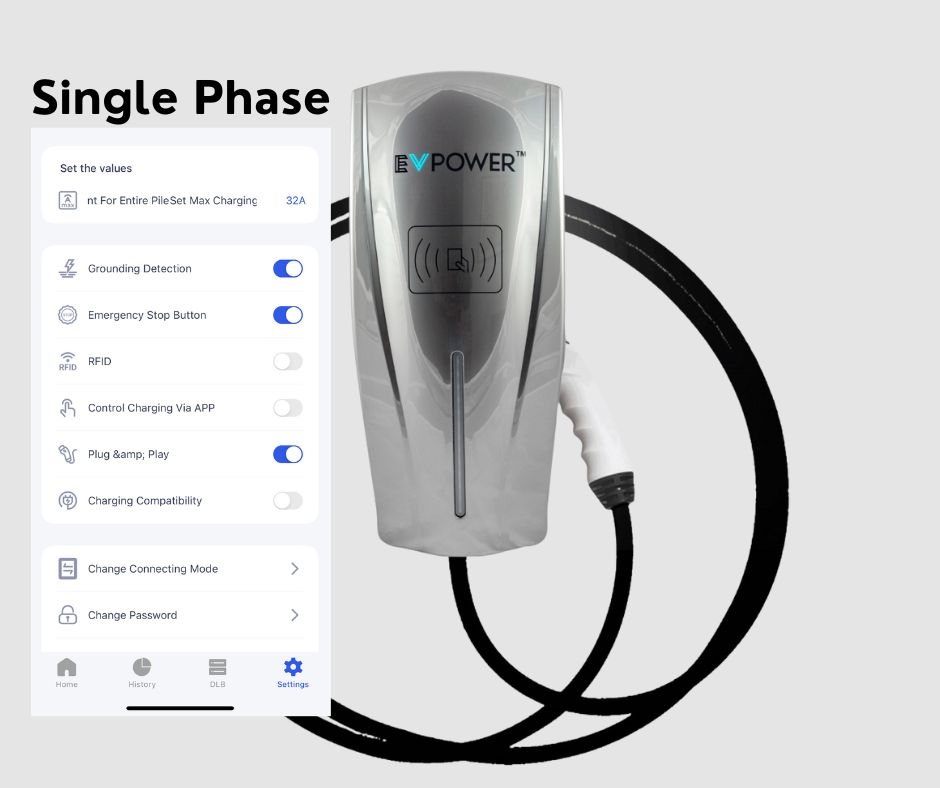

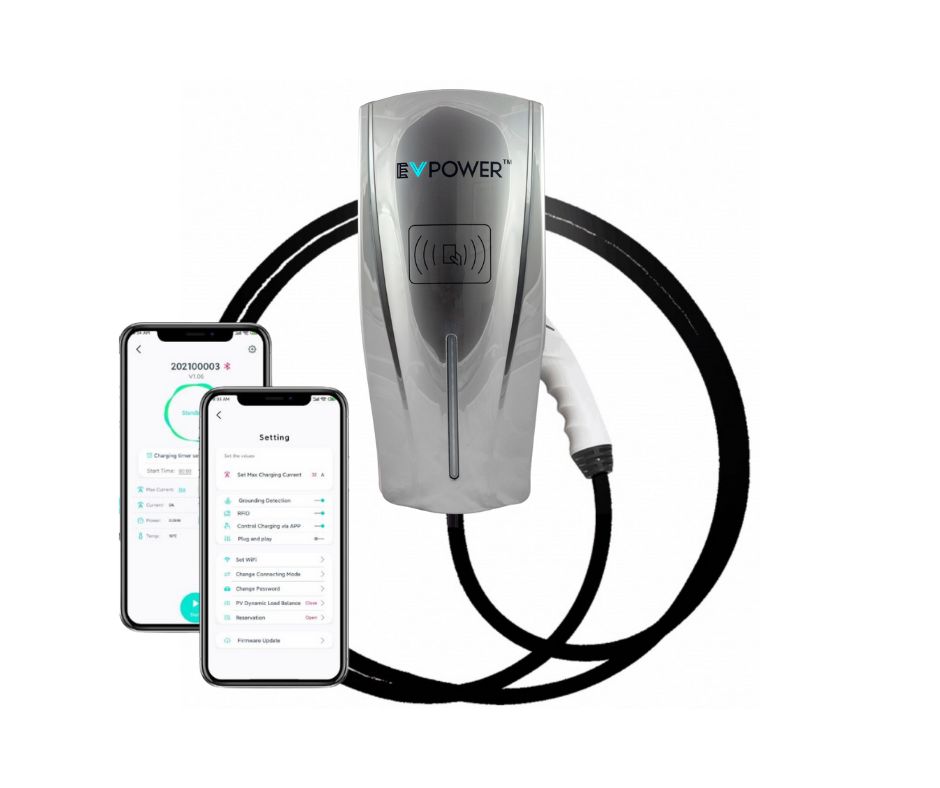

Z-Box App for real-time data interface – view charging data, set charging current, voltage and max charging power.
