Compatibility

This EV charging cable will only fit Type 2 EV/PHEV. if you are unsure please see our helpful page on identifying your EV here.

Key Features

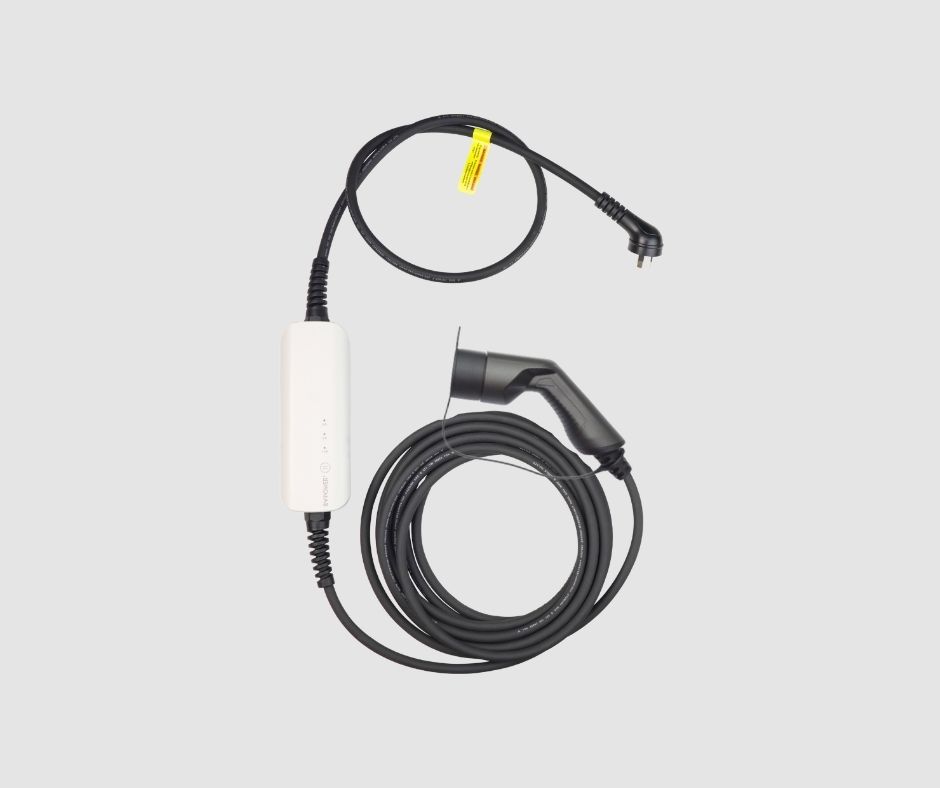

• Total cable length of 7m, (1m inlet lead + 6m vehicle charging cable)
• Switchable between 6A, 8A, and 10A, allowing the charging current to be reduced. Perfect when using older wiring, shared circuits, or locations with limited power capacity.
• 6 mA DC residual direct current detection, allowing use with a standard Type A RCD where permitted.
• An integrated temperature sensor within the AU/NZ three-pin plug continuously monitors plug temperature during charging. If abnormal temperature rise is detected, charging is automatically interrupted to reduce the risk of overheating.
• IEC 62752 requirements met for portable EV charging equipment.

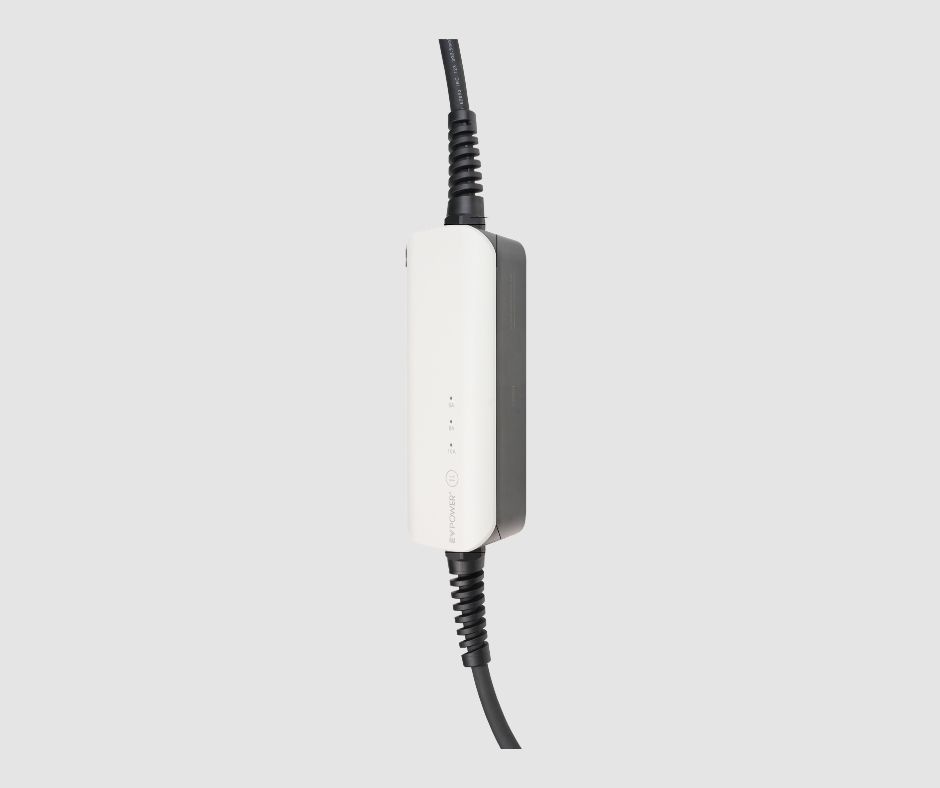

• Compact in-line control box.
• Status indication lights

Specifications

• Input voltage: 230V AC
• Single-phase
• Selectable current: 6/ 8 / 10 Amps
• Maximum output power: 2.3 kW (at 10A)
• Charging mode: Mode 2 (IC-CPD)

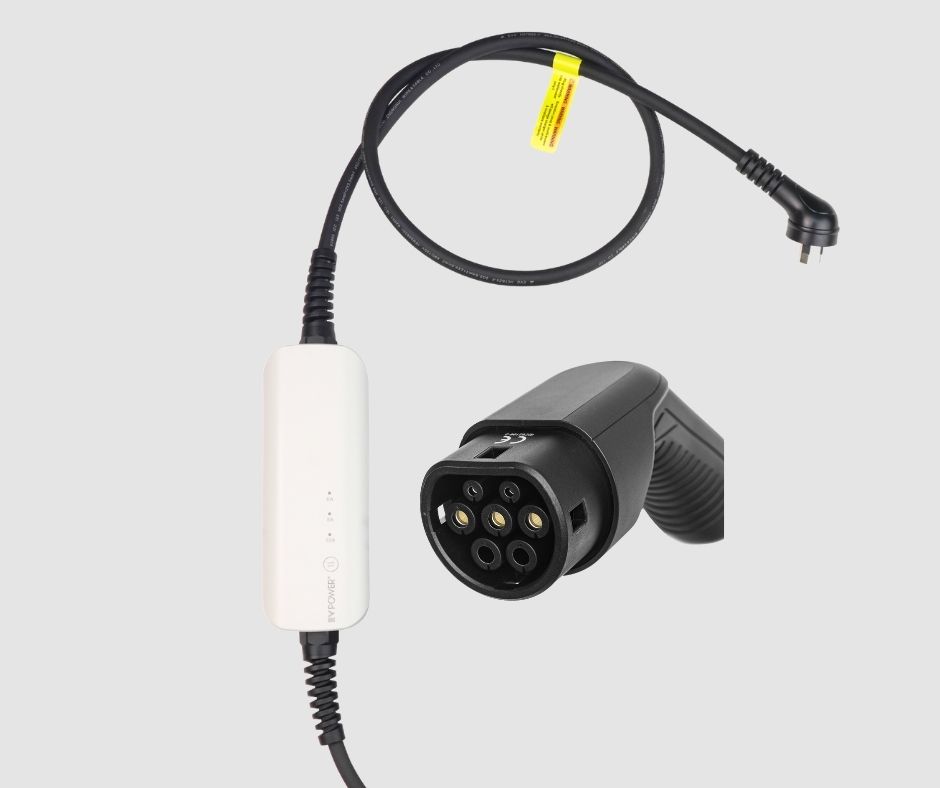

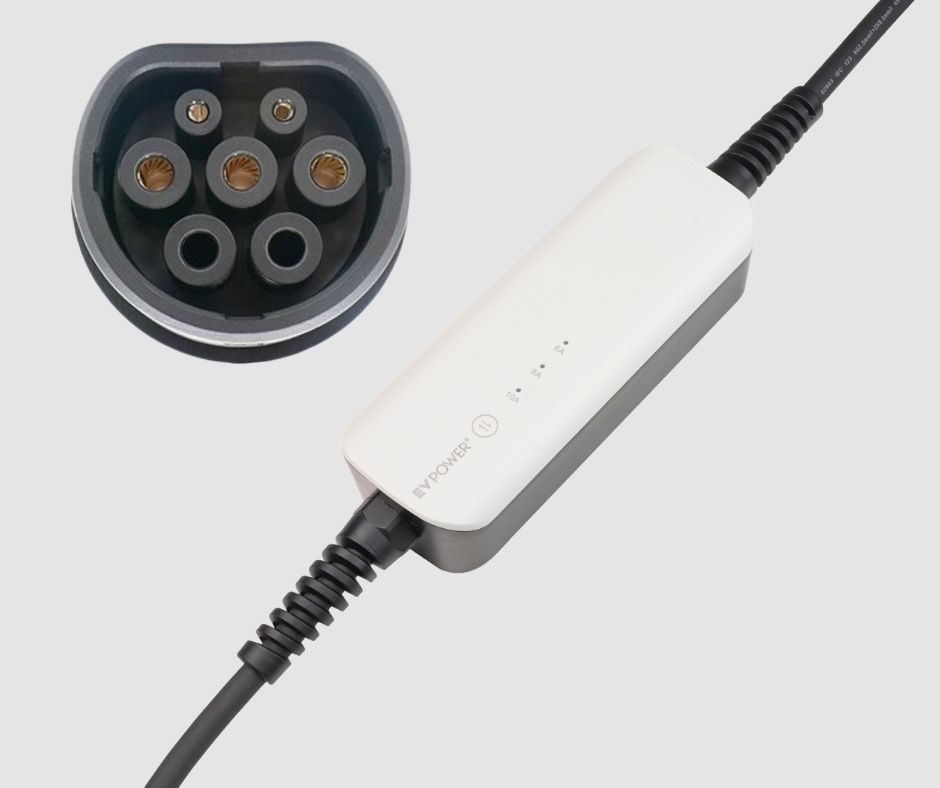

• Vehicle connector: Type 2
• Residual current protection: 6 mA DC detection (RDCDD)

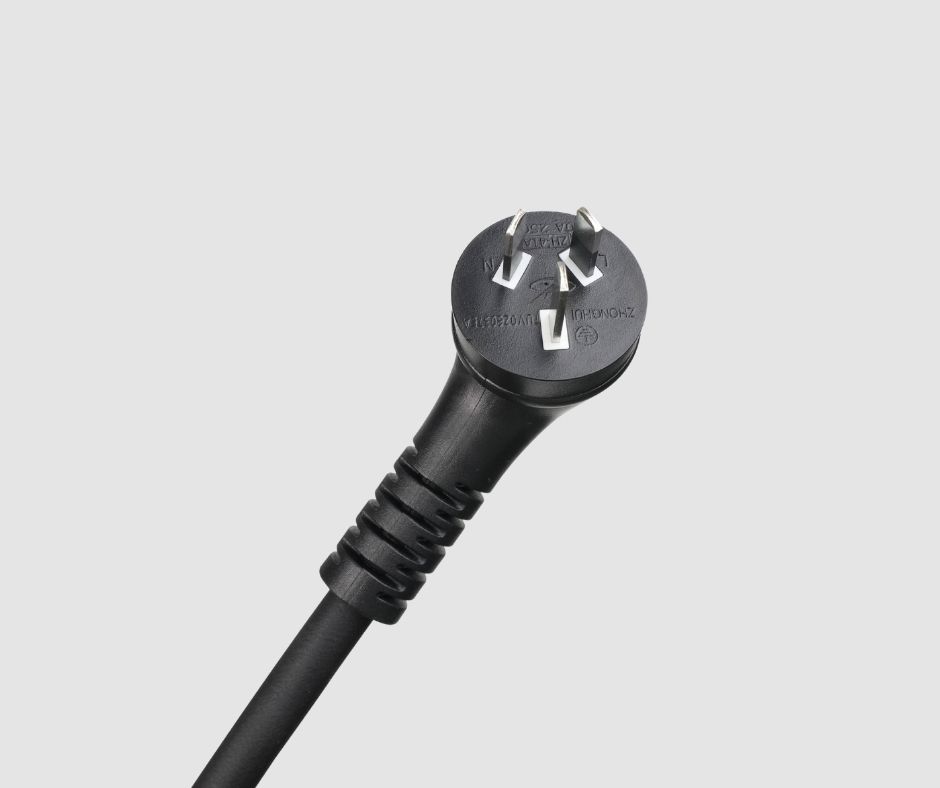

• Plug temperature monitoring: Integrated sensor at AU/NZ three-pin plug
• Compliance: IEC 62752
• Total cable length: 7m
• Inlet cable length: 1m
• Vehicle cable length: 6m
• IP65

Warranty

Two year warranty
