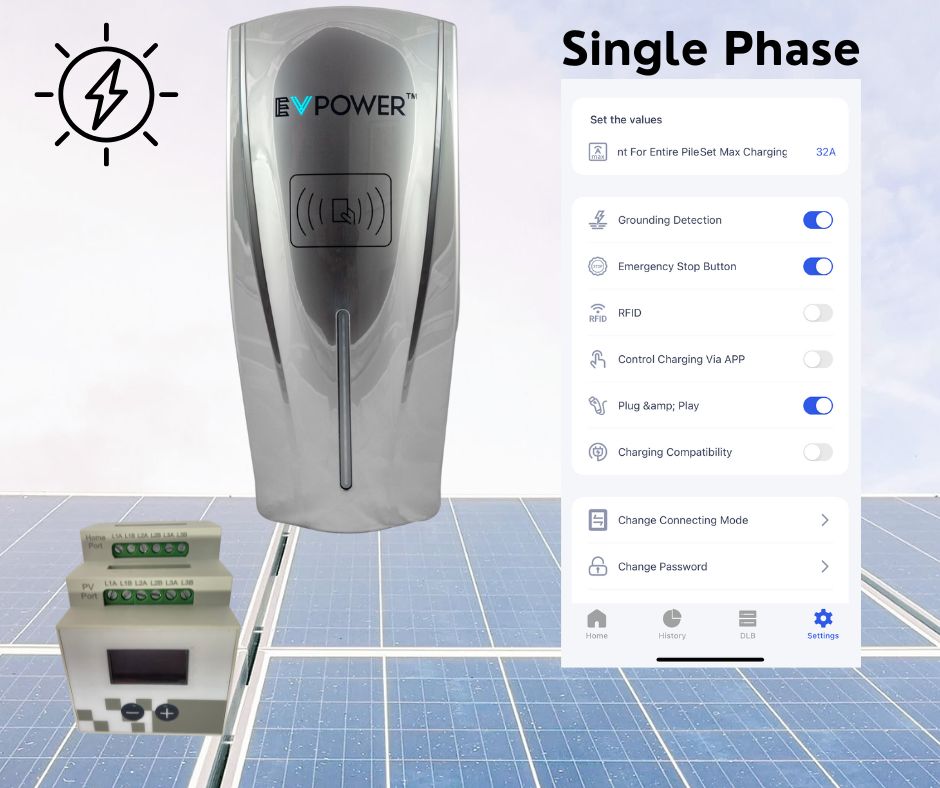

BCP Solar DLB Smart Wall Charger Package (1P)

This package includes 7kW BCP Smart Wall Charger + Solar DLB Box. BYO lead.

Charge smarter with this combo! The BCP Smart Wall Charger paired with the Solar DLB Box lets you control how much power comes from the grid vs. your solar panels.

• Features 6mA DC detection — no Type B RCD needed

• Requires an experienced solar electrician to install an isolation switch and RCBO 32A 1p slimline, and get the CT clamps installed correctly

• Compatible with all EVs/PHEVs via Type 2 connector (charging lead not included)

• Secure RFID card access for authorized users only

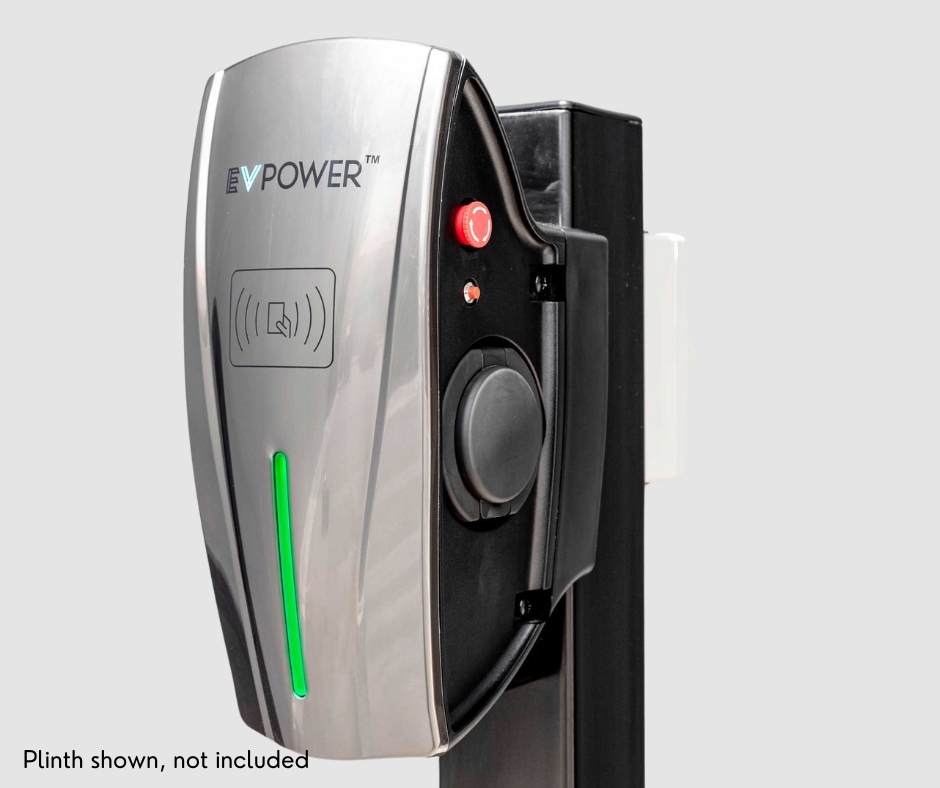

• Adjustable output from 6A to 32A, wall or pile mountable

• Dynamic Load Balancing auto-adjusts charging to prevent home overload via the Z-Box app

For example: If your home uses 45A of a 63A supply, charging automatically reduces to 18A to keep things safe.

Charge smarter, greener, and secure!

DIMENSIONS:

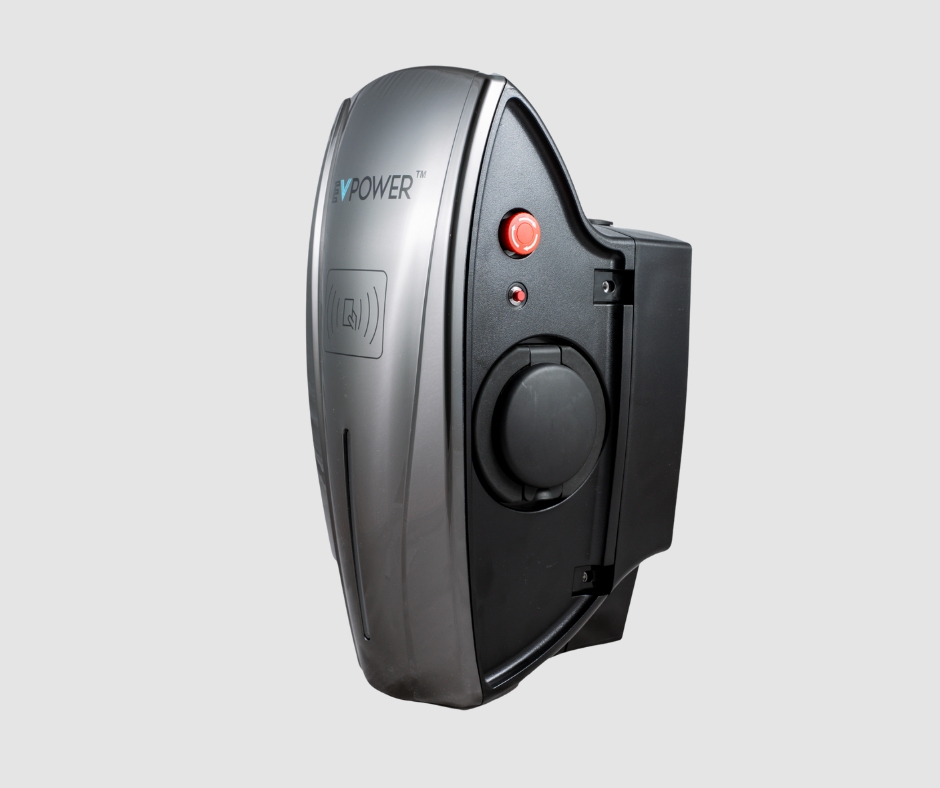

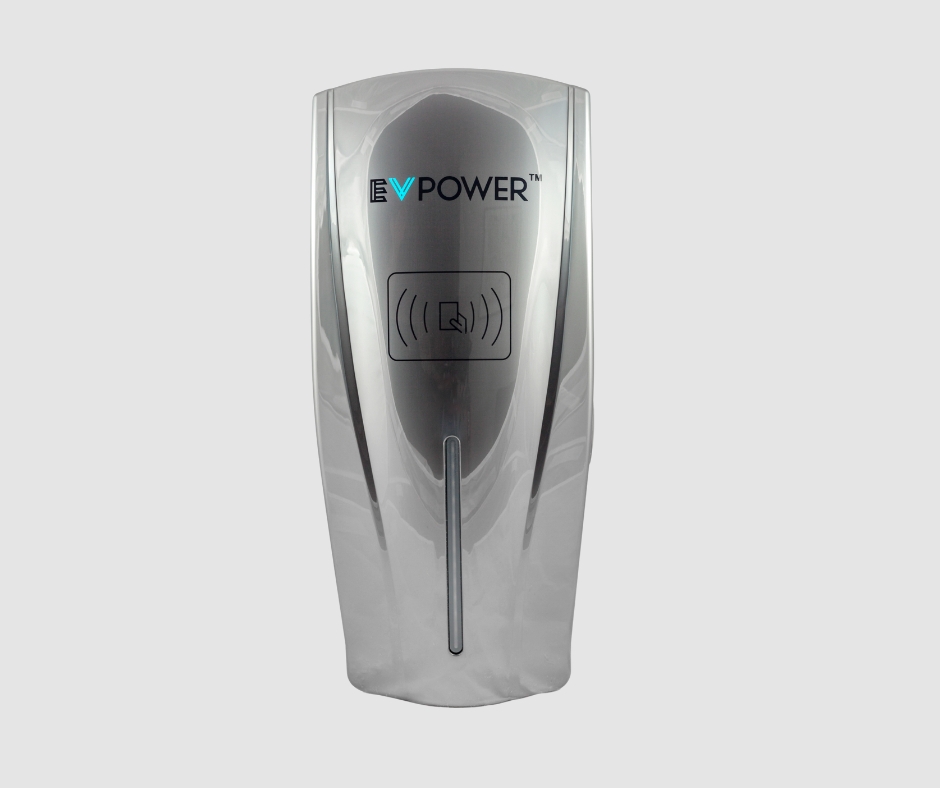

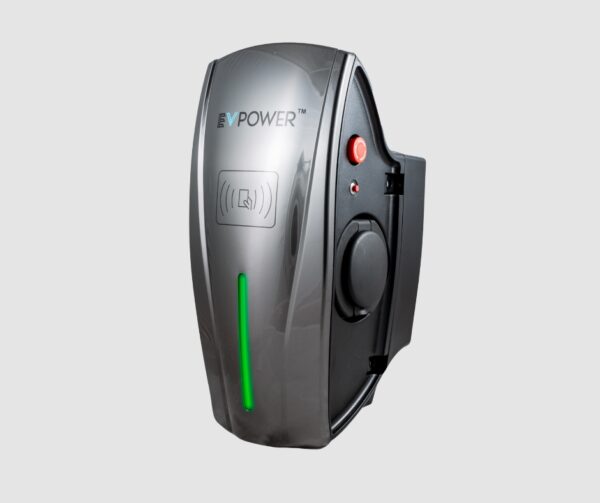

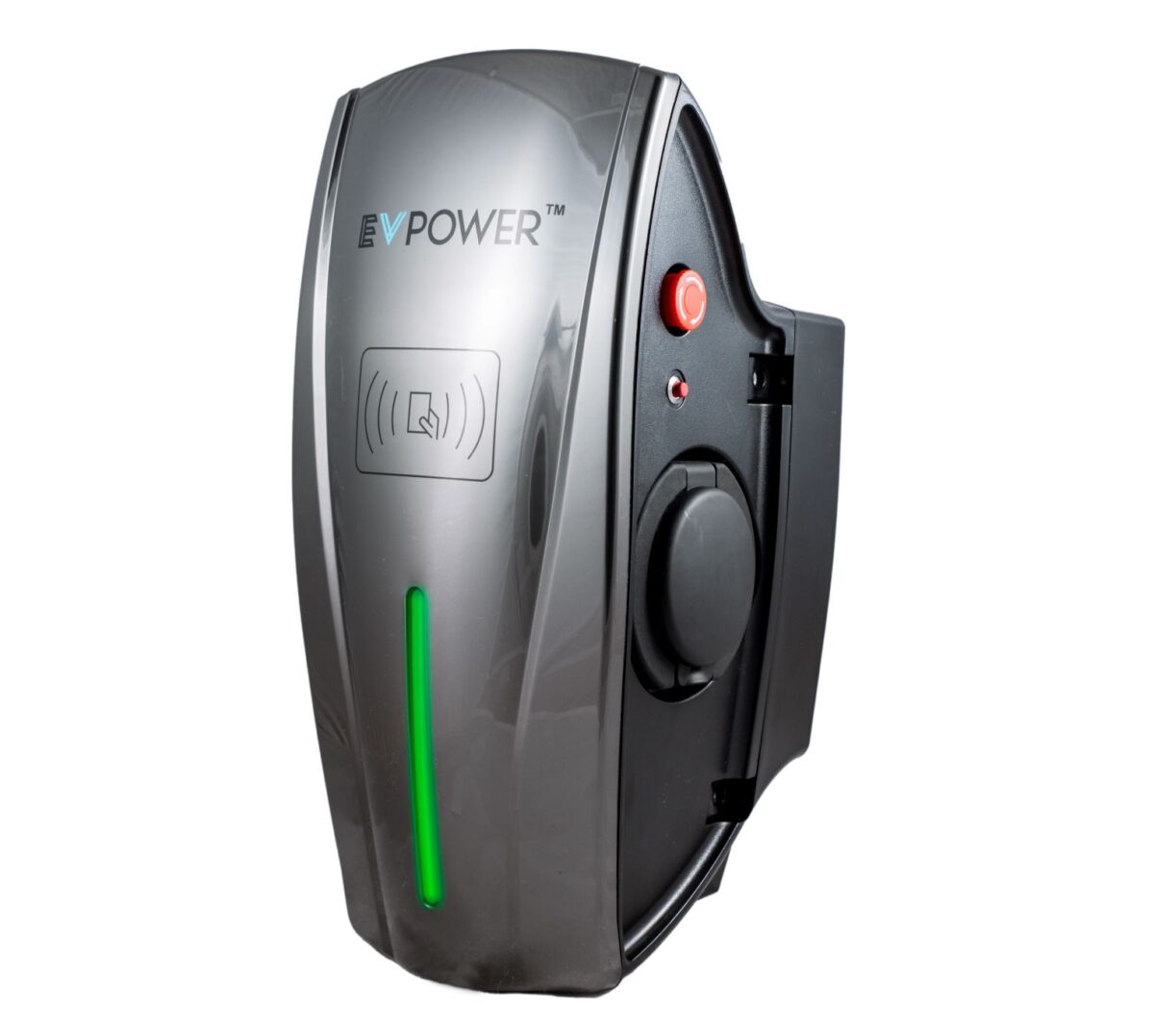

BCP Wall Charger: 7kg ~ 380mm H x 169mm W x 201/159 mm D

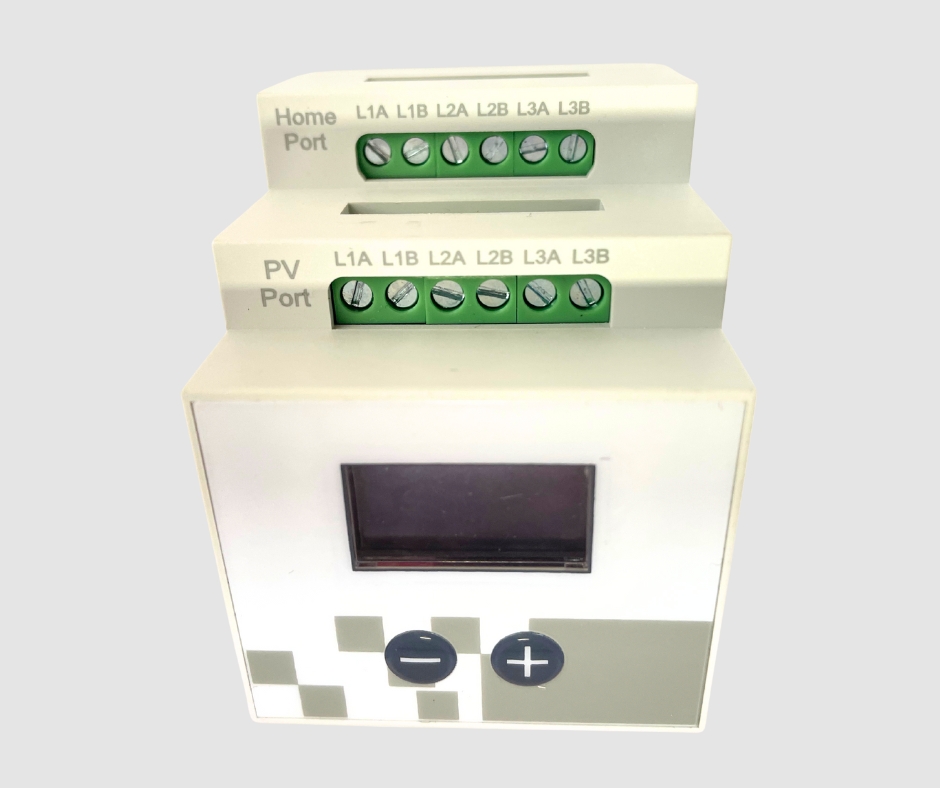

Solar DLB Box: 700g ~ 6.5 cm x 8 cm x 3.5 cm

SPECIFICATIONS:

• Built-in over-voltage and under-voltage protection(U>264V or U<187V).
• Over-current protection, over temperature protection, imperfect earth detection.
• CP abnormal signal protection and type A + DC 6mA for Europe standard.
• Operating temperature range: -25 ℃ ~ +55 ℃.
• IP65 (socket IP55) protection rate – provide shelter recommended.
• Operating humidity range 0-95% for indoor and outdoor.
• Temperature sensor built-in for fire protection.
• Leakage test function (to ensure the normal operation of leakage protection).
• Automatic reset after troubleshooting. That means when a charger stops working when an anomaly is detected, the charger will periodically self-check whether the anomaly is eliminated. The charger will start to work automatically afterwards to ensure the anomaly has been eliminated.
• The ramp-down stop current charging mode protects the EV batteries.
• Rated charging current can be set according to different home load conditions.
• Lightning protection to ensure personal safety.
• Standard: EN IEC 61851-1:2019 IEC 61851-1:2017
• Certificate: CE/CB/UKCA/SAA
• 3 year warranty.

*** Connecting multiple leads (end to end) together in order to extend the reach is dangerous.

Always ask a qualified electrician to check the wiring of your home before charging any EV/PHEV using your domestic circuits.

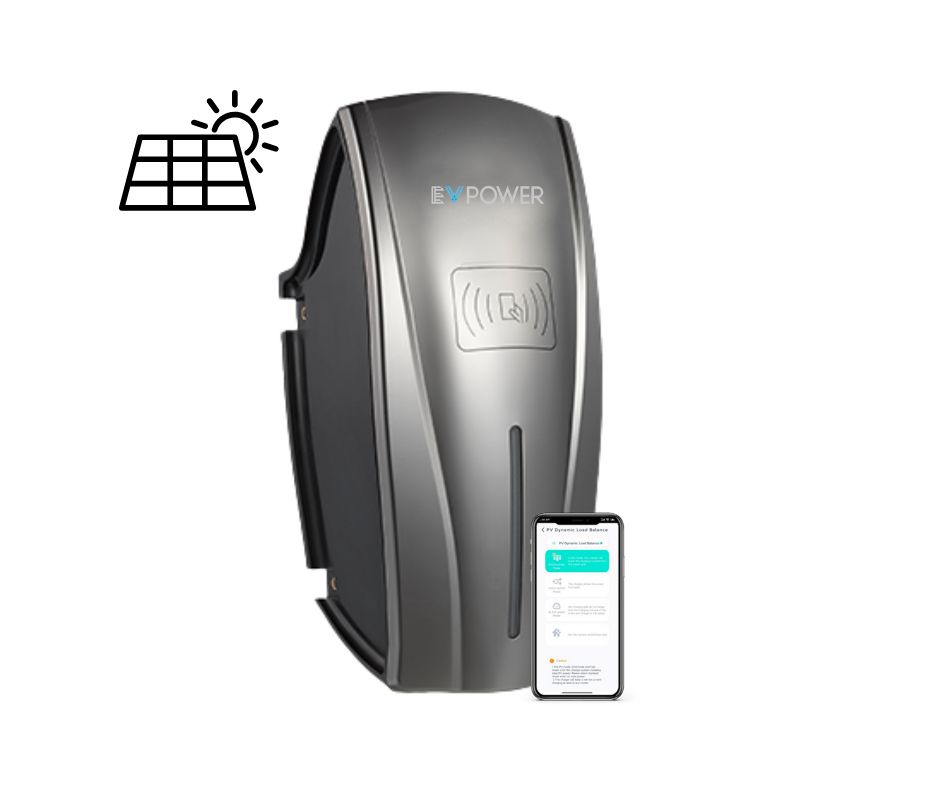

Z-Box App for real-time data interface – view charging data, set charging current, voltage and max charging power.

• Choose correct DLB mode for solar (optional)
• Set weekly charging reservation
• Z-Box App for real-time data interface – view charging data, set charging current, voltage and max charging power.
• Connect via bluetooth or wifi
• Set charging timer
• Choose correct DLB mode for solar (optional)
• Set weekly charging reservation

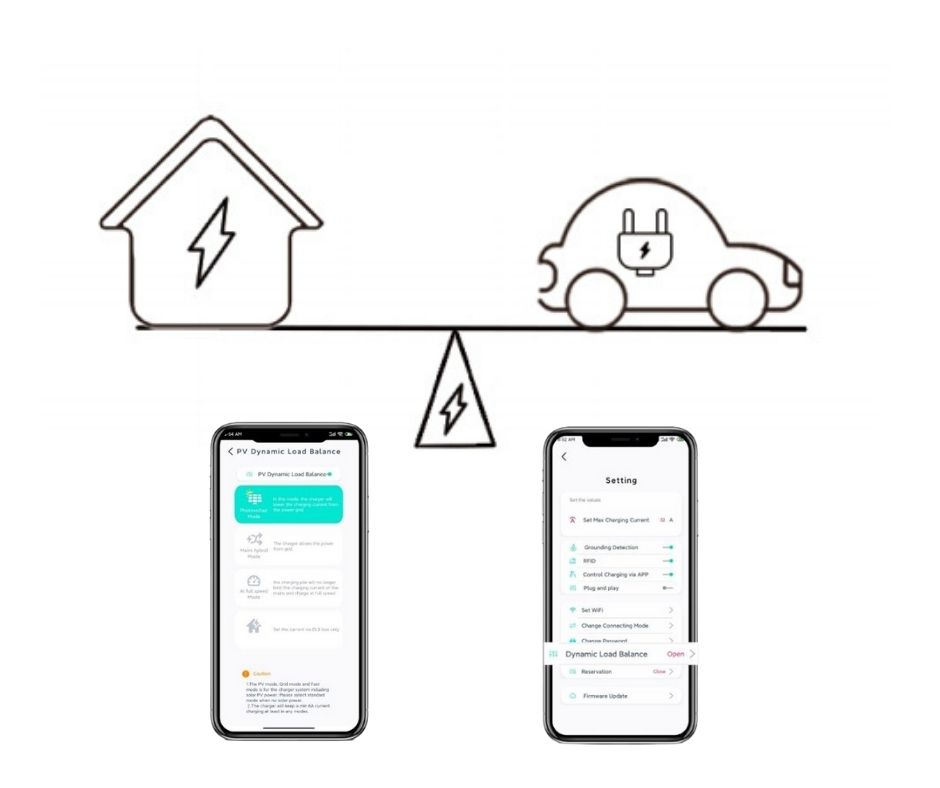

Three DLB modes for solar PV

1. The EV charger in the Pure PV (photovoltaic)/Solar mode will control its own charging current as much as possible, so that the actual input value of the grid current is as close as possible to 0A.

2. Hybrid Mode: The EV Charger will control its own charging current as much as possible in the range of DLB setting value. Some will be grid power and some will be solar – depending on the setting you choose.
Example:
Using the Z-Box App on your smartphone edit “Max Grid Current” input value to 10A. If the actual current value from grid to household power is 5A (<=10A), and the PV power generation current is 20A, then the total current of household power is 25A (5A+20A).

3. Full speed mode: The Solar DLB box will no longer limit the charging current of the EV charger, and the wall charger will use the maximum current supported for charging.
